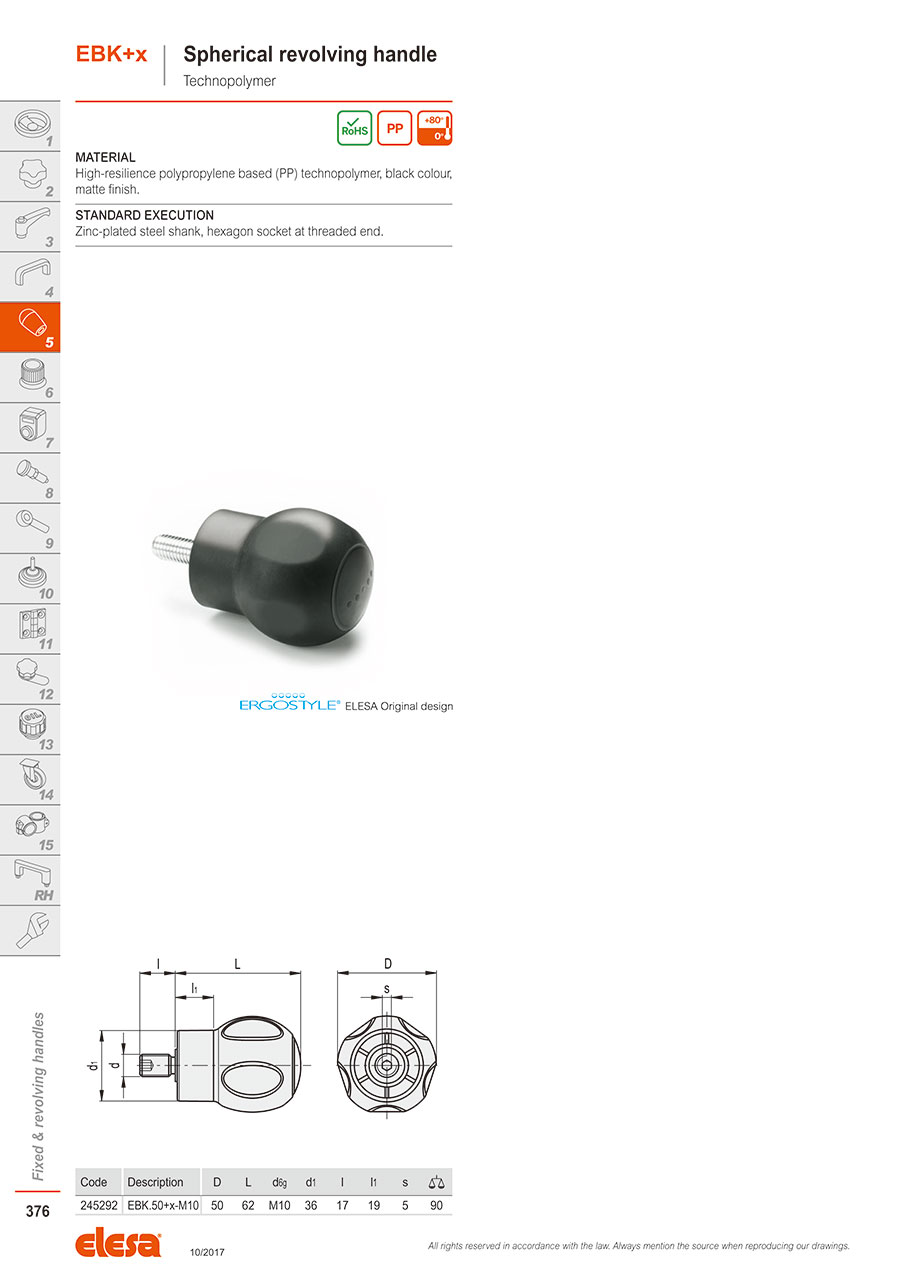

EBK+x - Spherical revolving handle -Technopolymer
- Volume Discount
Spherical revolving handle.High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.Zinc-plated steel pin, hexagon socket at threaded end.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
245292
Basic information
| d | M10 | l(mm) | 17 | Material | Technopolymer |
|---|---|---|---|---|---|
| D(φ) | 50 | L(mm) | 62 | d1 | 36 |
| High performing lines | Ergostyle | l1 | 19 | s | 5 |
| Type of assembly | Threaded screw | Description | EBK.50+x-M10 |
This page is EBK+x - Spherical revolving handle -Technopolymer, part number 245292.
You can find the detail information about specifications and dimensions on part number 245292.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
