ERB-PF-AE-V0 - Bi-directional flush pull handles -for snap-in assembly technopolymer certified self-extinguishing
- Promotional pricing ends 31/12/2024
- Volume Discount

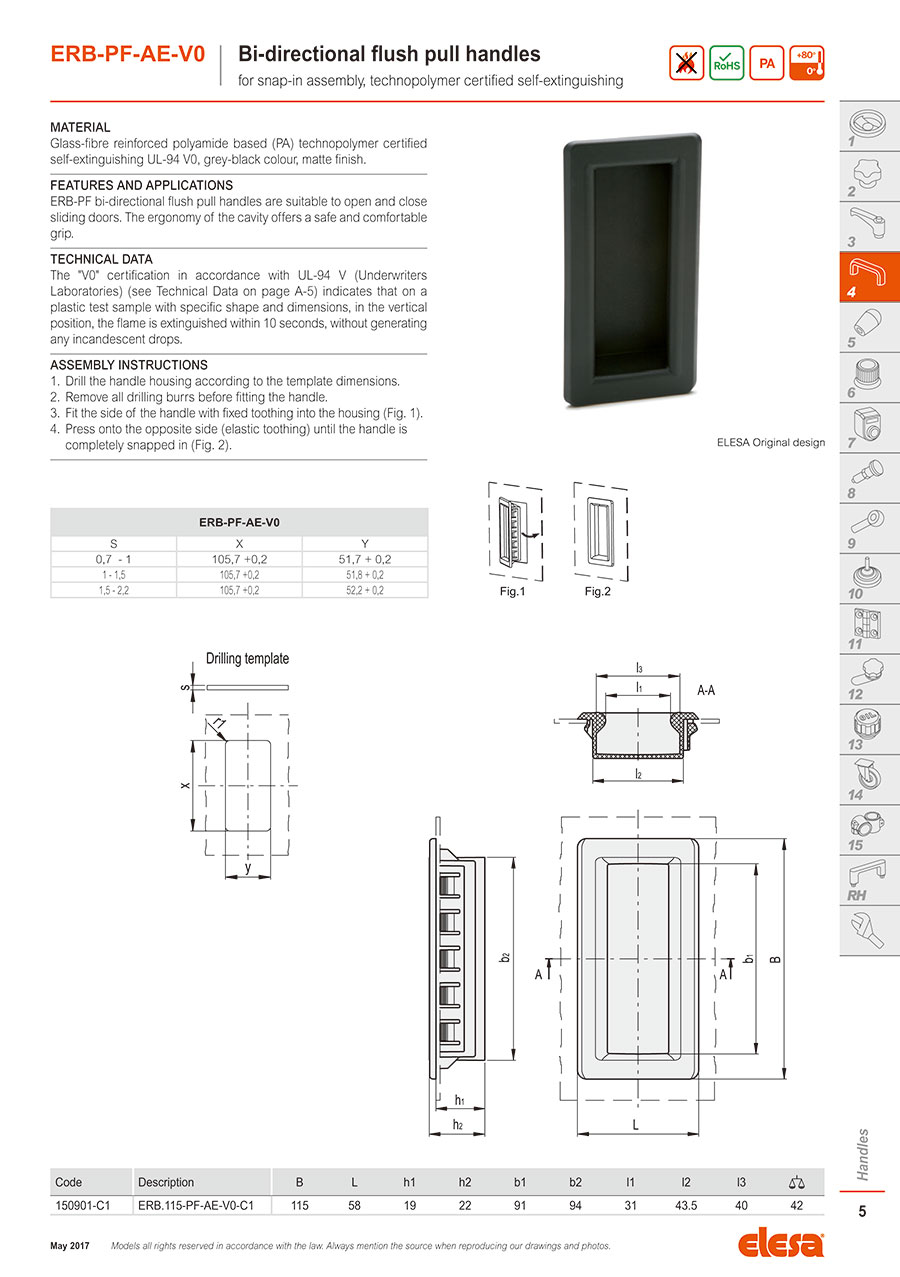

Two-way flush pull handle for snap-in assembly in polyamide-based technopolymer, certified self-extinguishing UL-94 V0, glass fibre reinforced.The "V0" certification in accordance with UL-94 V (Underwriters Laboratories) (see Technical Data on page A-5) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating any incandescent drops.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
150901-C1
Basic information
| Material | Technopolymer | L(mm) | 58 | h1(mm) | 19 |
|---|---|---|---|---|---|
| B | 115 | b1 | 91 | h2 | 22 |
| l1 | 31 | l2 | 43.5 | l3 | 40 |
| High performing lines | AE-V0 | Type of assembly | Snap-in | Description | ERB.115-PF-AE-V0-C1 |
This page is ERB-PF-AE-V0 - Bi-directional flush pull handles -for snap-in assembly technopolymer certified self-extinguishing, part number 150901-C1.
You can find the detail information about specifications and dimensions on part number 150901-C1.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
