MRT. - Adjustable handles -Technopolymer

Configure

Stock
Show stock items only

R(mm)

43
64.5
79.5

Material

Stainless steel

Polyamide

Technopolymer

l(mm)

10
16
20
25
30
40
50

d(mm)

L

51
74.5
92

D

16
20
25

H

28
37
45

H1

31.5
41
49

h1

29
38
47

h2

6
9
11

h3

21.5
27
34.5

d1

12
15
18.5

h

10
12
13
17
18
20

Hole

Lever length

40
65
80

Teeth no

18
20
24

Threaded screw

Color-finish accessory code

C1
C2

High performing lines

Inox

Sub execution

Type of assembly

Type

140

CAD

2D
3D

Est. shipping days

All
Same-day shipping possible
Within 4 working days
Within 5 working days

MRT. - Adjustable handles -Technopolymer

MRT. - Adjustable handles -Technopolymer

Catalog

Part number:

Still undefined. 74 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

R

(mm)

Material

l

(mm)

d

(mm)

L

D

H

H1

h1

h2

h3

d1

h

Hole

Lever length

Teeth no

Threaded screw

Color-finish accessory code

High performing lines

Sub execution

Type of assembly

Description

Minimum order quantity

43	[Polyamide] Technopolymer	-	M5	51	16	28	31.5	29	6	21.5	12	10	M5	40	18	-	C1	-	MRT-B	Blind hole	MRT.42-B-M5-C1	1 pieces
43	[Polyamide] Technopolymer	-	M5	51	16	28	31.5	29	6	21.5	12	10	M5	40	18	-	C2	-	MRT-B	Blind hole	MRT.42-B-M5-C2	1 pieces
43	[Polyamide] Technopolymer	-	M6	51	16	28	31.5	29	6	21.5	12	10	M6	40	18	-	C1	-	MRT-B	Blind hole	MRT.42-B-M6-C1	10 pieces
43	[Polyamide] Technopolymer	-	M6	51	16	28	31.5	29	6	21.5	12	10	M6	40	18	-	C2	-	MRT-B	Blind hole	MRT.42-B-M6-C2	1 pieces
64.5	[Polyamide] Technopolymer	-	M6	74.5	20	37	41	38	9	27	15	12	M6	65	20	-	C1	-	MRT-B	Blind hole	MRT.65-B-M6-C1	10 pieces
64.5	[Polyamide] Technopolymer	-	M6	74.5	20	37	41	38	9	27	15	12	M6	65	20	-	C2	-	MRT-B	Blind hole	MRT.65-B-M6-C2	1 pieces
64.5	[Polyamide] Technopolymer	-	M8	74.5	20	37	41	38	9	27	15	13	M8	65	20	-	C1	-	MRT-B	Blind hole	MRT.65-B-M8-C1	1 pieces
64.5	[Polyamide] Technopolymer	-	M8	74.5	20	37	41	38	9	27	15	13	M8	65	20	-	C2	-	MRT-B	Blind hole	MRT.65-B-M8-C2	1 pieces
79.5	[Polyamide] Technopolymer	-	M8	92	25	45	49	47	11	34.5	18.5	20	M8	80	24	-	C1	-	MRT-B	Blind hole	MRT.80-B-M8-C1	10 pieces
79.5	[Polyamide] Technopolymer	-	M8	92	25	45	49	47	11	34.5	18.5	20	M8	80	24	-	C2	-	MRT-B	Blind hole	MRT.80-B-M8-C2	1 pieces
79.5	[Polyamide] Technopolymer	-	M10	92	25	45	49	47	11	34.5	18.5	18	M10	80	24	-	C1	-	MRT-B	Blind hole	MRT.80-B-M10-C1	10 pieces
79.5	[Polyamide] Technopolymer	-	M10	92	25	45	49	47	11	34.5	18.5	18	M10	80	24	-	C2	-	MRT-B	Blind hole	MRT.80-B-M10-C2	1 pieces
79.5	[Polyamide] Technopolymer	-	M12	92	25	45	49	47	11	34.5	18.5	17	M12	80	24	-	C1	-	MRT-B	Blind hole	MRT.80-B-M12-C1	1 pieces
79.5	[Polyamide] Technopolymer	-	M12	92	25	45	49	47	11	34.5	18.5	17	M12	80	24	-	C2	-	MRT-B	Blind hole	MRT.80-B-M12-C2	1 pieces
43	[Polyamide] Technopolymer	10	M4	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M4	C1	-	MRT-p	Threaded screw	MRT.42-p-M4x10-C1	1 pieces
43	[Polyamide] Technopolymer	10	M4	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M4	C2	-	MRT-p	Threaded screw	MRT.42-p-M4x10-C2	10 pieces
43	[Polyamide] Technopolymer	20	M5	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M5	C1	-	MRT-p	Threaded screw	MRT.42-p-M5x20-C1	1 pieces
43	[Polyamide] Technopolymer	20	M5	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M5	C2	-	MRT-p	Threaded screw	MRT.42-p-M5x20-C2	1 pieces
43	[Polyamide] Technopolymer	10	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C1	-	MRT-p	Threaded screw	MRT.42-p-M6x10-C1	1 pieces
43	[Polyamide] Technopolymer	10	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C2	-	MRT-p	Threaded screw	MRT.42-p-M6x10-C2	1 pieces
43	[Polyamide] Technopolymer	16	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C1	-	MRT-p	Threaded screw	MRT.42-p-M6x16-C1	1 pieces
43	[Polyamide] Technopolymer	16	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C2	-	MRT-p	Threaded screw	MRT.42-p-M6x16-C2	1 pieces
43	[Polyamide] Technopolymer	20	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C1	-	MRT-p	Threaded screw	MRT.42-p-M6x20-C1	1 pieces
43	[Polyamide] Technopolymer	20	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C2	-	MRT-p	Threaded screw	MRT.42-p-M6x20-C2	1 pieces
43	[Polyamide] Technopolymer	30	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C1	-	MRT-p	Threaded screw	MRT.42-p-M6x30-C1	1 pieces
43	[Polyamide] Technopolymer	30	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C2	-	MRT-p	Threaded screw	MRT.42-p-M6x30-C2	1 pieces
64.5	[Polyamide] Technopolymer	16	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C1	-	MRT-p	Threaded screw	MRT.65-p-M8x16-C1	1 pieces
64.5	[Polyamide] Technopolymer	16	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C2	-	MRT-p	Threaded screw	MRT.65-p-M8x16-C2	1 pieces
64.5	[Polyamide] Technopolymer	20	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C1	-	MRT-p	Threaded screw	MRT.65-p-M8x20-C1	1 pieces
64.5	[Polyamide] Technopolymer	20	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C2	-	MRT-p	Threaded screw	MRT.65-p-M8x20-C2	1 pieces
64.5	[Polyamide] Technopolymer	25	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C1	-	MRT-p	Threaded screw	MRT.65-p-M8x25-C1	1 pieces
64.5	[Polyamide] Technopolymer	25	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C2	-	MRT-p	Threaded screw	MRT.65-p-M8x25-C2	1 pieces
64.5	[Polyamide] Technopolymer	30	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C1	-	MRT-p	Threaded screw	MRT.65-p-M8x30-C1	1 pieces
64.5	[Polyamide] Technopolymer	30	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C2	-	MRT-p	Threaded screw	MRT.65-p-M8x30-C2	1 pieces
64.5	[Polyamide] Technopolymer	40	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C1	-	MRT-p	Threaded screw	MRT.65-p-M8x40-C1	1 pieces
64.5	[Polyamide] Technopolymer	40	M8	74.5	20	37	41	38	9	27	15	-	-	65	20	M8	C2	-	MRT-p	Threaded screw	MRT.65-p-M8x40-C2	1 pieces
79.5	[Polyamide] Technopolymer	20	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C1	-	MRT-p	Threaded screw	MRT.80-p-M10x20-C1	1 pieces
79.5	[Polyamide] Technopolymer	20	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C2	-	MRT-p	Threaded screw	MRT.80-p-M10x20-C2	1 pieces
79.5	[Polyamide] Technopolymer	30	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C1	-	MRT-p	Threaded screw	MRT.80-p-M10x30-C1	1 pieces
79.5	[Polyamide] Technopolymer	30	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C2	-	MRT-p	Threaded screw	MRT.80-p-M10x30-C2	1 pieces
79.5	[Polyamide] Technopolymer	40	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C1	-	MRT-p	Threaded screw	MRT.80-p-M10x40-C1	1 pieces
79.5	[Polyamide] Technopolymer	40	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C2	-	MRT-p	Threaded screw	MRT.80-p-M10x40-C2	1 pieces
79.5	[Polyamide] Technopolymer	50	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C1	-	MRT-p	Threaded screw	MRT.80-p-M10x50-C1	1 pieces
79.5	[Polyamide] Technopolymer	50	M10	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M10	C2	-	MRT-p	Threaded screw	MRT.80-p-M10x50-C2	1 pieces
79.5	[Polyamide] Technopolymer	30	M12	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M12	C1	-	MRT-p	Threaded screw	MRT.80-p-M12x30-C1	1 pieces
79.5	[Polyamide] Technopolymer	30	M12	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M12	C2	-	MRT-p	Threaded screw	MRT.80-p-M12x30-C2	1 pieces
79.5	[Polyamide] Technopolymer	50	M12	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M12	C1	-	MRT-p	Threaded screw	MRT.80-p-M12x50-C1	1 pieces
79.5	[Polyamide] Technopolymer	50	M12	92	25	45	49	47	11	34.5	18.5	-	-	80	24	M12	C2	-	MRT-p	Threaded screw	MRT.80-p-M12x50-C2	1 pieces
43	Stainless steel	-	M6	51	16	28	31.5	29	6	21.5	12	10	M6	40	18	-	C1	Inox	MRT-SST	Blind hole	MRT.42-SST-M6-C1	1 pieces
43	[Polyamide] Technopolymer	-	M6	51	16	28	31.5	29	6	21.5	12	10	M6	40	18	-	C2	Inox	MRT-SST	Blind hole	MRT.42-SST-M6-C2	1 pieces
64.5	[Polyamide] Technopolymer	-	M8	74.5	20	37	41	38	9	27	15	13	M8	65	20	-	C1	Inox	MRT-SST	Blind hole	MRT.65-SST-M8-C1	1 pieces
64.5	[Polyamide] Technopolymer	-	M8	74.5	20	37	41	38	9	27	15	13	M8	65	20	-	C2	Inox	MRT-SST	Blind hole	MRT.65-SST-M8-C2	1 pieces
79.5	[Polyamide] Technopolymer	-	M10	92	25	45	49	47	11	34.5	18.5	17	M10	80	24	-	C1	Inox	MRT-SST	Blind hole	MRT.80-SST-M10-C1	1 pieces
79.5	[Polyamide] Technopolymer	-	M10	92	25	45	49	47	11	34.5	18.5	17	M10	80	24	-	C2	Inox	MRT-SST	Blind hole	MRT.80-SST-M10-C2	1 pieces
43	[Polyamide] Technopolymer	16	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C1	Inox	MRT-SST-p	Threaded screw	MRT.42-SST-p-M6x16-C1	1 pieces
43	[Polyamide] Technopolymer	16	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C2	Inox	MRT-SST-p	Threaded screw	MRT.42-SST-p-M6x16-C2	1 pieces
43	[Polyamide] Technopolymer	20	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C1	Inox	MRT-SST-p	Threaded screw	MRT.42-SST-p-M6x20-C1	10 pieces
43	Stainless steel	20	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C2	Inox	MRT-SST-p	Threaded screw	MRT.42-SST-p-M6x20-C2	1 pieces
43	Stainless steel	30	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C1	Inox	MRT-SST-p	Threaded screw	MRT.42-SST-p-M6x30-C1	1 pieces
43	Stainless steel	30	M6	51	16	28	31.5	29	6	21.5	12	-	-	40	18	M6	C2	Inox	MRT-SST-p	Threaded screw	MRT.42-SST-p-M6x30-C2	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2.45 €1.18 € ( 1.40 € )	Stock item: 1 working dayAvailable for same-day shipping
2.45 €1.18 € ( 1.40 € )	Stock item: 1 working dayAvailable for same-day shipping
2.53 € ( 3.01 € )	5 working days
2.53 €1.21 € ( 1.44 € )	Stock item: 1 working dayAvailable for same-day shipping
2.80 € ( 3.33 € )	4 working days
3.08 €1.48 € ( 1.76 € )	Stock item: 1 working dayAvailable for same-day shipping
3.15 €1.51 € ( 1.80 € )	Stock item: 1 working dayAvailable for same-day shipping
3.15 €1.51 € ( 1.80 € )	Stock item: 1 working dayAvailable for same-day shipping
3.74 € ( 4.45 € )	4 working days
3.74 €1.80 € ( 2.14 € )	Stock item: 1 working dayAvailable for same-day shipping
3.48 € ( 4.14 € )	4 working days
3.83 €1.84 € ( 2.19 € )	Stock item: 1 working dayAvailable for same-day shipping
3.91 €1.88 € ( 2.24 € )	Stock item: 1 working dayAvailable for same-day shipping
3.91 €1.88 € ( 2.24 € )	Stock item: 1 working dayAvailable for same-day shipping
2.45 €1.18 € ( 1.40 € )	Stock item: 1 working dayAvailable for same-day shipping
2.22 € ( 2.64 € )	4 working days
2.53 €1.21 € ( 1.44 € )	Stock item: 1 working dayAvailable for same-day shipping
2.53 €1.21 € ( 1.44 € )	Stock item: 1 working dayAvailable for same-day shipping
2.42 €1.16 € ( 1.38 € )	Stock item: 1 working dayAvailable for same-day shipping
2.42 €1.16 € ( 1.38 € )	Stock item: 1 working dayAvailable for same-day shipping
2.42 €1.16 € ( 1.38 € )	Stock item: 1 working dayAvailable for same-day shipping
2.42 €1.16 € ( 1.38 € )	Stock item: 1 working dayAvailable for same-day shipping
2.42 €1.16 € ( 1.38 € )	Stock item: 1 working dayAvailable for same-day shipping
2.42 €1.16 € ( 1.38 € )	Stock item: 1 working dayAvailable for same-day shipping
2.56 €1.23 € ( 1.46 € )	Stock item: 1 working dayAvailable for same-day shipping
2.56 €1.23 € ( 1.46 € )	Stock item: 1 working dayAvailable for same-day shipping
3.19 € ( 3.80 € )	Stock item: 1 working dayAvailable for same-day shipping
3.19 €1.53 € ( 1.82 € )	Stock item: 1 working dayAvailable for same-day shipping
3.21 €1.54 € ( 1.83 € )	Stock item: 1 working dayAvailable for same-day shipping
3.21 €1.54 € ( 1.83 € )	Stock item: 1 working dayAvailable for same-day shipping
3.21 €1.54 € ( 1.83 € )	Stock item: 1 working dayAvailable for same-day shipping
3.21 €1.54 € ( 1.83 € )	Stock item: 1 working dayAvailable for same-day shipping
3.21 €1.54 € ( 1.83 € )	Stock item: 1 working dayAvailable for same-day shipping
3.21 €1.54 € ( 1.83 € )	Stock item: 1 working dayAvailable for same-day shipping
3.30 €1.58 € ( 1.88 € )	Stock item: 1 working dayAvailable for same-day shipping
3.30 €1.58 € ( 1.88 € )	Stock item: 1 working dayAvailable for same-day shipping
3.96 €1.90 € ( 2.26 € )	Stock item: 1 working dayAvailable for same-day shipping
3.96 €1.90 € ( 2.26 € )	Stock item: 1 working dayAvailable for same-day shipping
3.96 €1.90 € ( 2.26 € )	Stock item: 1 working dayAvailable for same-day shipping
3.96 €1.90 € ( 2.26 € )	Stock item: 1 working dayAvailable for same-day shipping
4.05 €1.94 € ( 2.31 € )	Stock item: 1 working dayAvailable for same-day shipping
4.05 €1.94 € ( 2.31 € )	Stock item: 1 working dayAvailable for same-day shipping
4.18 €2.01 € ( 2.39 € )	Stock item: 1 working dayAvailable for same-day shipping
4.18 €2.01 € ( 2.39 € )	Stock item: 1 working dayAvailable for same-day shipping
4.05 €1.94 € ( 2.31 € )	Stock item: 1 working dayAvailable for same-day shipping
4.05 €1.94 € ( 2.31 € )	Stock item: 1 working dayAvailable for same-day shipping
4.31 €2.07 € ( 2.46 € )	Stock item: 1 working dayAvailable for same-day shipping
4.31 €2.07 € ( 2.46 € )	Stock item: 1 working dayAvailable for same-day shipping
4.35 €2.09 € ( 2.49 € )	Stock item: 1 working dayAvailable for same-day shipping
4.35 €2.09 € ( 2.49 € )	Stock item: 1 working dayAvailable for same-day shipping
5.24 €2.52 € ( 3.00 € )	Stock item: 1 working dayAvailable for same-day shipping
5.24 €2.52 € ( 3.00 € )	Stock item: 1 working dayAvailable for same-day shipping
7.13 €3.42 € ( 4.07 € )	Stock item: 1 working dayAvailable for same-day shipping
7.13 €3.42 € ( 4.07 € )	Stock item: 1 working dayAvailable for same-day shipping
3.10 €1.49 € ( 1.77 € )	Stock item: 1 working dayAvailable for same-day shipping
3.10 €1.49 € ( 1.77 € )	Stock item: 1 working dayAvailable for same-day shipping
3.19 € ( 3.80 € )	5 working days
3.19 €1.53 € ( 1.82 € )	Stock item: 1 working dayAvailable for same-day shipping
3.32 €1.59 € ( 1.89 € )	Stock item: 1 working dayAvailable for same-day shipping
3.32 €1.59 € ( 1.89 € )	Stock item: 1 working dayAvailable for same-day shipping

More Information

Basic information

Basic information

Adjustable handles.
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Technopolymer push button in grey-black or orange colours.
Flat adjustable handle, open configuration to avoid any deposit of unhygienic residues or scraps and dirt.
Particularly suitable when the lever turning angle is limited owing to lack of space.

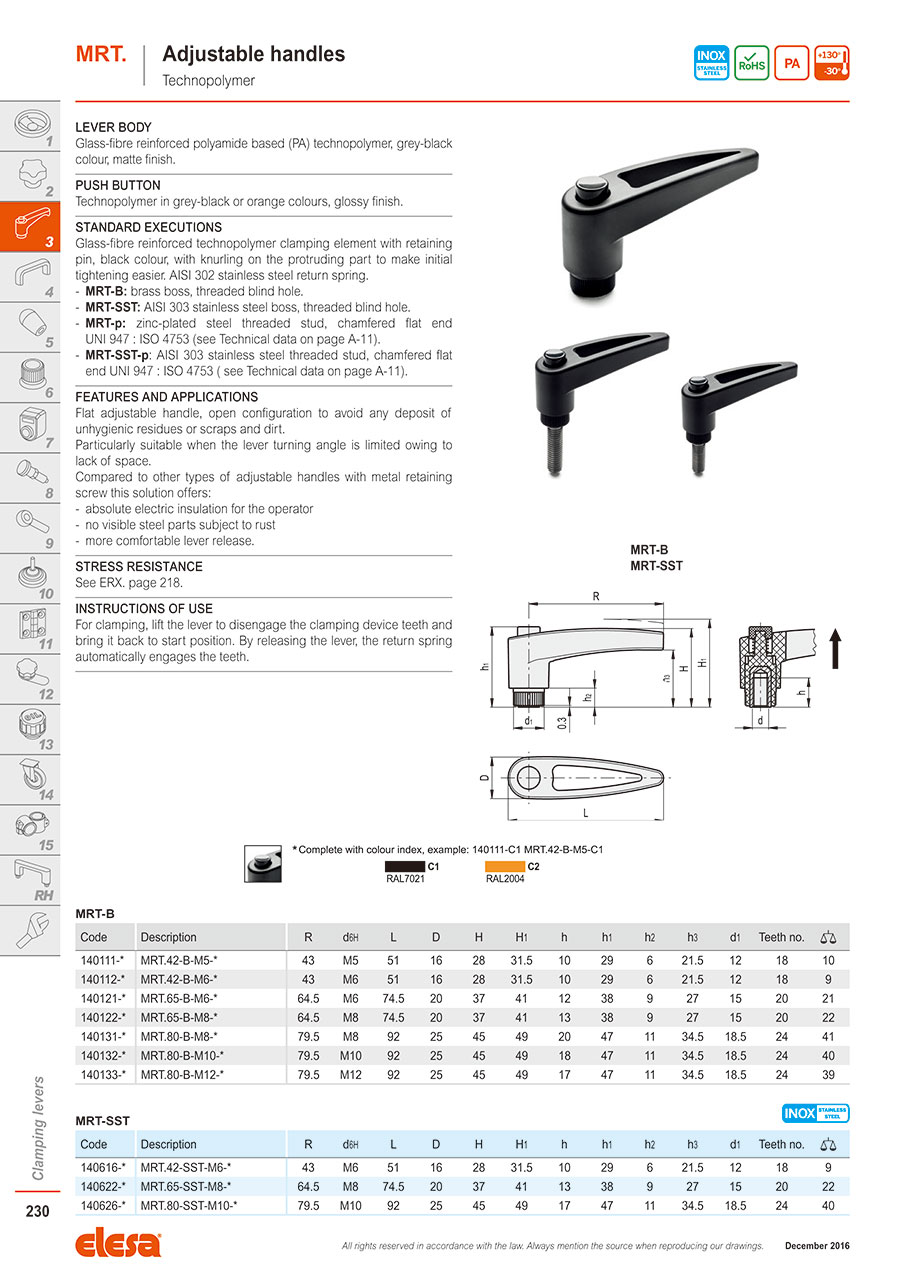

Catalog

Products homepage

Catalog (2-page spread)

1189
