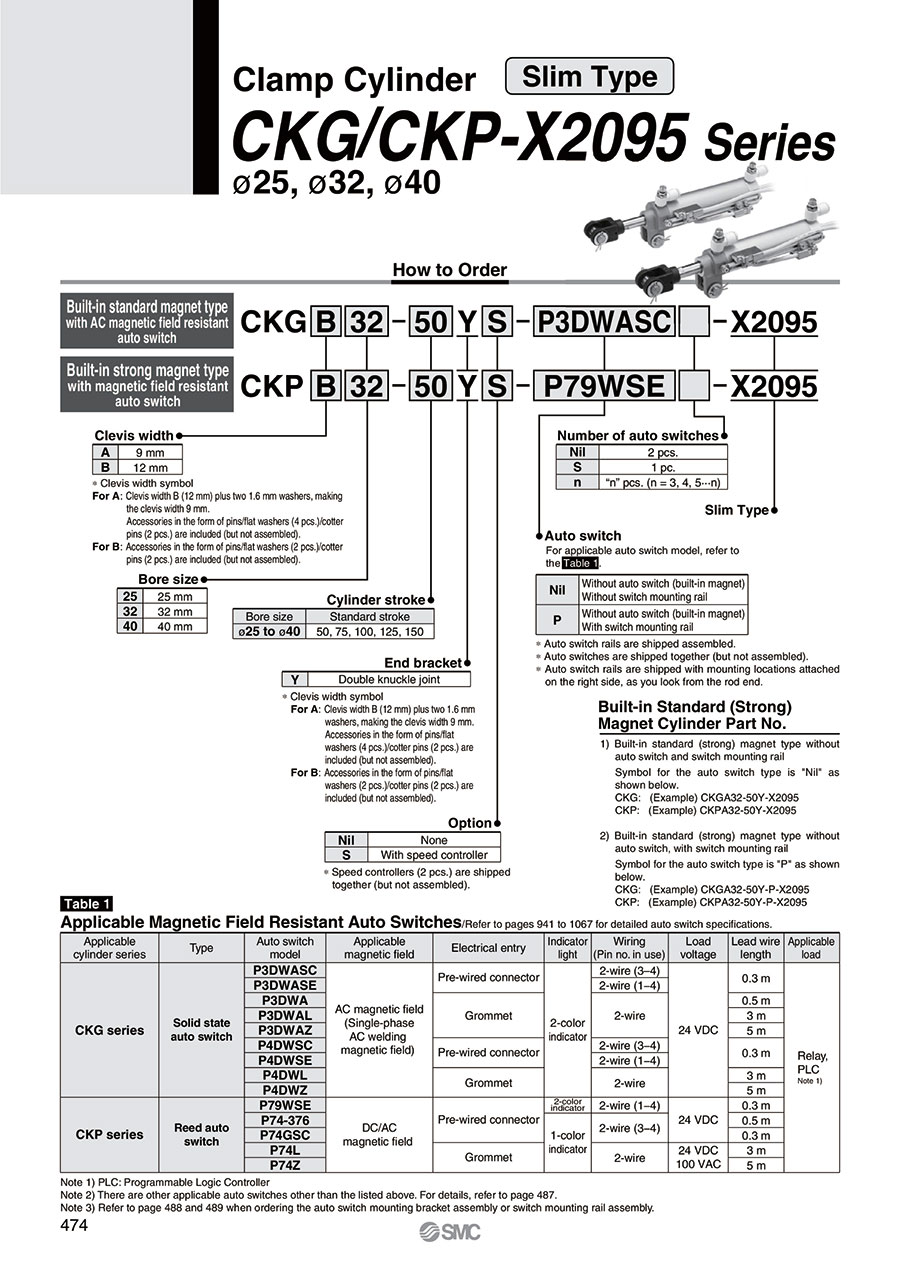

CKG-X2095, CKP-X2095 Series Slim-Style Clamp Cylinder (With Magnetic-Field-Resistant Auto Switch)

CKG-X2095, CKP-X2095 Series Slim-Style Clamp Cylinder (With Magnetic-Field-Resistant Auto Switch)

Caution

  • See the catalog for specification details.
  • Product images may be representative images. Refer to the manufacturer's catalog for shape details.

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    CKGA25-50Y-X2095
    Order suspended
    CKGA32-50Y-P3DWASE-X2095
    Order suspended
    CKGA32-50Y-X2095
    Order suspended
    CKGA32-75Y-X2095
    Order suspended
    CKGA32-100Y-X2095
    CKGB25-50Y-X2095
    Order suspended
    CKGB25-50YS-X2095
    Order suspended
    CKGB32-50Y-P3DWASE-X2095
    Order suspended
    CKGB32-75Y-X2095
    CKGB32-100Y-P3DWAL-X2095
    CKGB32-100Y-P-X2095
    CKGB32-100Y-X2095
    CKGB32-100YS-X2095
    CKGB32-125Y-P3DWASE-X2095

    Cylinder Diameter

    (Ø)

    Stroke

    (mm)

    Body options

    Clamping Force

    (kN)

    Auto Switch

    Lead Wire Length

    (m)

    Number of Switches

    Clevis width

    (mm)

    		Minimum order quantity
    25
    50
    No (Standard)
    0.246
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    9
    1 pieces
    32
    50
    No (Standard)
    0.402
    P3DWASE
    0.3
    2 pcs.
    9
    1 pieces
    32
    50
    No (Standard)
    0.402
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    9
    1 pieces
    32
    75
    No (Standard)
    0.402
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    9
    1 pieces
    32
    100
    No (Standard)
    0.402
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    9
    1 pieces
    25
    50
    No (Standard)
    0.246
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    12
    1 pieces
    25
    50
    Speed Controller
    0.246
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    12
    1 pieces
    32
    50
    No (Standard)
    0.402
    P3DWASE
    0.3
    2 pcs.
    12
    1 pieces
    32
    75
    No (Standard)
    0.402
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    12
    1 pieces
    32
    100
    No (Standard)
    0.402
    P3DWA
    3
    2 pcs.
    12
    1 pieces
    32
    100
    No (Standard)
    0.402
    Without auto switch (built-in magnet) / with auto switch mounting rail
    None
    None
    12
    1 pieces
    32
    100
    No (Standard)
    0.402
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    12
    1 pieces
    32
    100
    Speed Controller
    0.402
    Without auto switch (built-in magnet) / without auto switch mounting rail
    None
    None
    12
    1 pieces
    32
    125
    No (Standard)
    0.402
    P3DWASE
    0.3
    2 pcs.
    12
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    165.15 €
    ( 196.53 € )
    98 working days
    299.48 €
    ( 356.38 € )
    26 working days
    154.90 €
    ( 184.33 € )
    26 working days
    158.19 €
    ( 188.25 € )
    26 working days
    161.52 €
    ( 192.21 € )
    26 working days
    165.15 €
    ( 196.53 € )
    98 working days
    268.66 €
    ( 319.71 € )
    26 working days
    299.48 €
    ( 356.38 € )
    26 working days
    165.02 €
    ( 196.37 € )
    26 working days
    310.85 €
    ( 369.91 € )
    26 working days
    180.00 €
    ( 214.20 € )
    26 working days
    168.47 €
    ( 200.48 € )
    26 working days
    208.61 €
    ( 248.25 € )
    26 working days
    321.71 €
    ( 382.83 € )
    26 working days
  • 1

    • More Information

    Basic information

    Clamp cylinder with compact auto switch (D-P3DWA).
    [Features]
    · CKG: built-in standard magnet type / with magnetic-field-resistant auto switch (for AC).
    · CKP: built-in strong magnet type / with magnetic-field-resistant auto switch.
    · Magnetic-field-resistant 2-color indication solid state auto switch.
    · The auto switch mounting position is available from 3 directions.
    · Setting part no. for the model with speed controller reduces hassle of selecting and ordering.
    · "Clevis width" and "a, b dimensions" have common interchangeability with all three sizes, ø25 to ø40.
    · End bracket: double knuckle joint.
