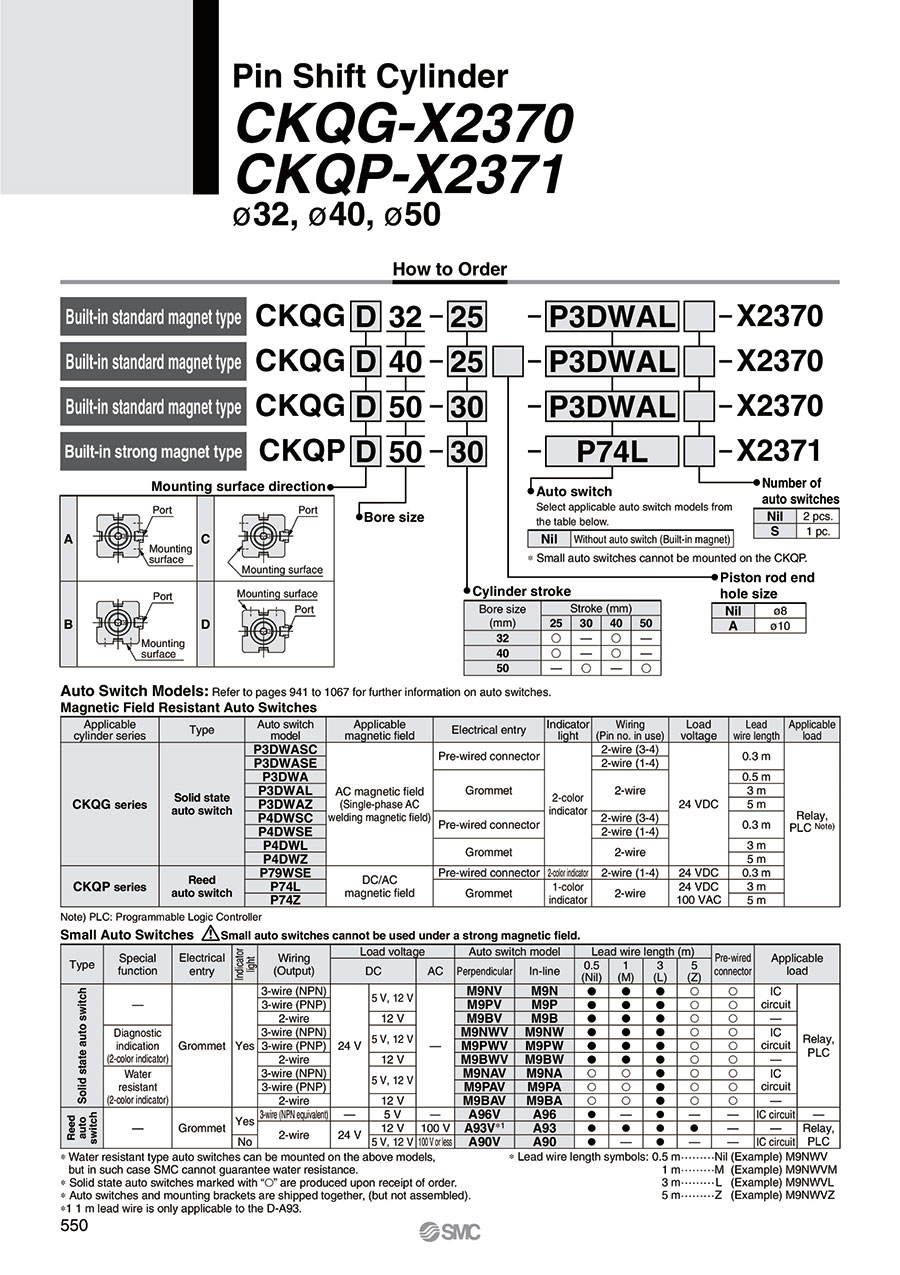

Pin Shift Cylinder CKQG-X2370, CKQP-X2371

Pin Shift Cylinder CKQG-X2370, CKQP-X2371

Caution

  • See the catalog for specification details.
  • Product images may be representative images. Refer to the manufacturer's catalog for shape details.

Part number:

Still undefined. 20 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    CKQGA32-25-X2370
    CKQGA32-40-X2370
    CKQGA40-25-X2370
    CKQGA40-25A-X2370
    Order suspended
    CKQGA40-40-X2370
    CKQGB32-25-X2370
    CKQGB32-40-X2370
    CKQGB40-40A-P3DWASE-X2370
    CKQGB40-40A-X2370
    CKQGC32-40-X2370
    CKQGC40-25A-X2370
    CKQGC40-40A-P3DWASE-X2370
    CKQGC40-40A-X2370
    CKQGC50-30-P4DWSC-X2370
    CKQGD32-25-X2370
    CKQGD32-40-X2370
    CKQGD40-40A-P3DWASE-X2370
    CKQGD40-40A-X2370
    CKQGD50-50-P4DWSE-X2370
    CKQPC50-30-P74L-X2371

    Cylinder Diameter

    (Ø)

    Stroke

    (mm)

    Auto Switch

    Lead Wire Length

    (m)

    Number of Switches

    Specifications

    Mounting surface position

    Piston rod tip hole diameter

    		Minimum order quantity
    32
    25
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    Same direction as port
    ø8
    1 pieces
    32
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    Same direction as port
    ø8
    1 pieces
    40
    25
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    Same direction as port
    ø8
    1 pieces
    40
    25
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    Same direction as port
    ø10
    1 pieces
    40
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    Same direction as port
    ø8
    1 pieces
    32
    25
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    90° from port
    ø8
    1 pieces
    32
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    90° from port
    ø8
    1 pieces
    40
    40
    P3DWASE
    0.3
    2 pcs.
    Built-in standard magnet type
    90° from port
    ø10
    1 pieces
    40
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    90° from port
    ø10
    1 pieces
    32
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    180° from port
    ø8
    1 pieces
    40
    25
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    180° from port
    ø10
    1 pieces
    40
    40
    P3DWASE
    0.3
    2 pcs.
    Built-in standard magnet type
    180° from port
    ø10
    1 pieces
    40
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    180° from port
    ø10
    1 pieces
    50
    30
    P4DWSC
    0.3
    2 pcs.
    Built-in standard magnet type
    180° from port
    ø8
    1 pieces
    32
    25
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    270° from port
    ø8
    1 pieces
    32
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    270° from port
    ø8
    1 pieces
    40
    40
    P3DWASE
    0.3
    2 pcs.
    Built-in standard magnet type
    270° from port
    ø10
    1 pieces
    40
    40
    Without auto switch (built-in magnet)
    None
    None
    Built-in standard magnet type
    270° from port
    ø10
    1 pieces
    50
    50
    P4DWSE
    0.3
    2 pcs.
    Built-in standard magnet type
    270° from port
    ø8
    1 pieces
    50
    30
    P74
    3
    2 pcs.
    Built-in strong magnet type
    180° from port
    ø8
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    346.35 €
    ( 412.16 € )
    26 working days
    251.60 €
    ( 299.40 € )
    26 working days
    388.79 €
    ( 462.66 € )
    26 working days
    388.79 €
    ( 462.66 € )
    26 working days
    283.27 €
    ( 337.09 € )
    26 working days
    247.23 €
    ( 294.20 € )
    26 working days
    251.60 €
    ( 299.40 € )
    26 working days
    436.44 €
    ( 519.36 € )
    98 working days
    302.94 €
    ( 360.50 € )
    98 working days
    251.60 €
    ( 299.40 € )
    26 working days
    388.79 €
    ( 462.66 € )
    26 working days
    436.44 €
    ( 519.36 € )
    98 working days
    302.94 €
    ( 360.50 € )
    98 working days
    648.94 €
    ( 772.24 € )
    26 working days
    247.23 €
    ( 294.20 € )
    26 working days
    251.60 €
    ( 299.40 € )
    26 working days
    533.39 €
    ( 634.73 € )
    26 working days
    302.94 €
    ( 360.50 € )
    98 working days
    658.23 €
    ( 783.29 € )
    26 working days
    476.03 €
    ( 566.48 € )
    26 working days
  • 1

    • More Information

    Basic information

    Built-in standard magnet type and built-in strong magnet type pin shift cylinder.
    [Features]
    · Rod end deflection of ±0.1 mm or less is achieved when a load is applied to the rod at its extension end.
    · Distance accuracy of ±0.1 mm from mounting surface to rod center.
    · Distance accuracy of ±0.1 mm from knock pin hole on mounting surface to rod end.
    · Pin for positioning the workpiece can be directly mounted.
    · Built-in coil scraper.
    · Reduces labor time by integrating the cylinder and guide.
    · Magnetic-field-resistant auto switches are mountable.

    Caution

    • See the catalog for specification details.
    • Product images may be representative images. Refer to the manufacturer's catalog for shape details.
