HALDER

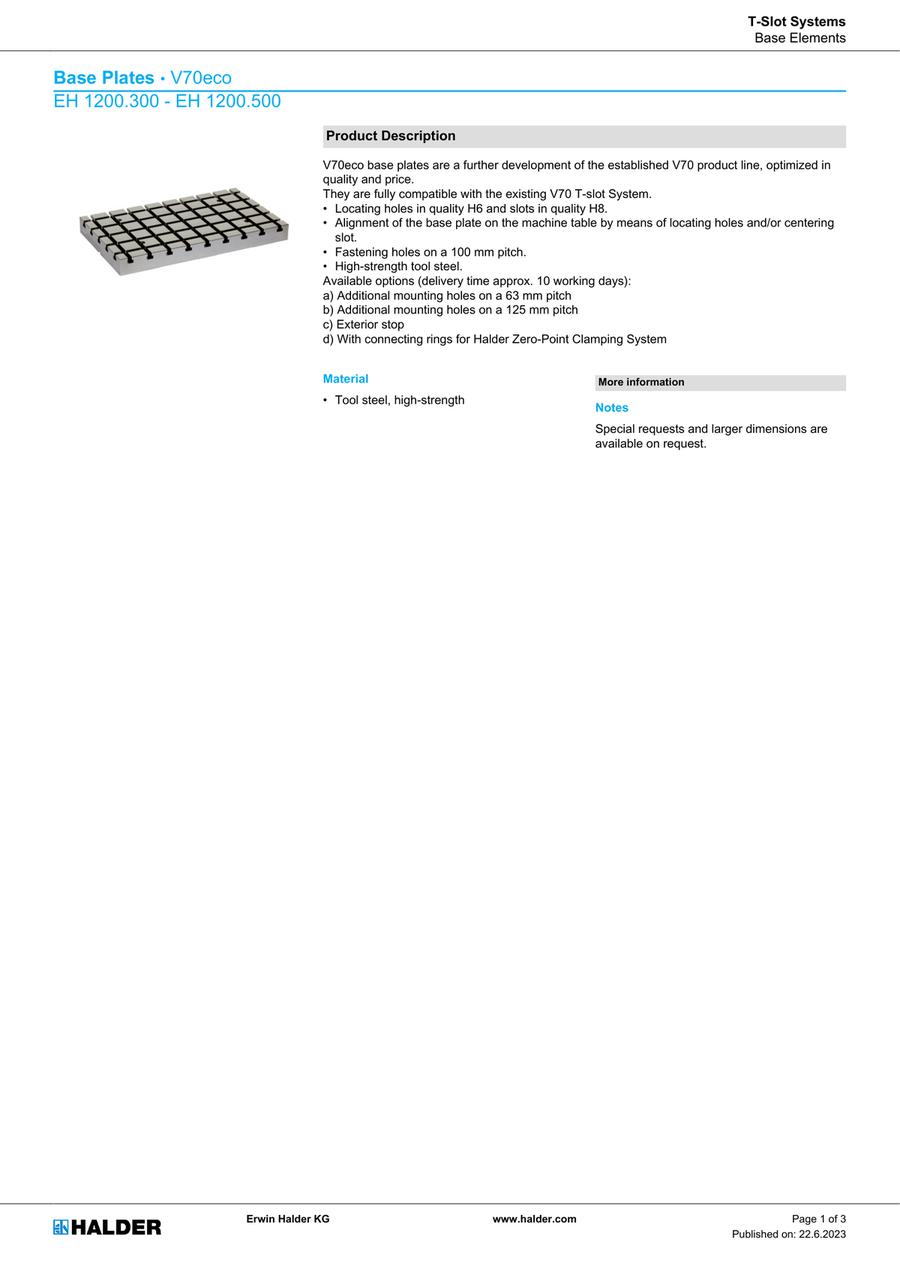

Base Plates, V70eco

Base Plates, V70eco

Mouse over image to enlarge

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    1200.300
    1200.400
    Order suspended
    1200.500
    Related

    a

    (mm)

    b1

    (mm)

    l1

    (mm)

    l2

    (mm)

    Number of T-slotsa1

    Number of T-slotsa2

    Number of connecting rings Zero-Point Clamping System (optio

    Weight

    (g)

    		Minimum order quantity

    Data sheet

    150
    230
    420
    150
    3
    6
    2
    38
    1 pieces

    Data sheet

    200
    300
    490
    200
    4
    7
    2
    57
    1 pieces

    Data sheet

    200
    370
    630
    200
    5
    9
    4
    92
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2,314.40 €
    ( 2,754.14 € )
    4 working days
    3,322.15 €
    ( 3,953.36 € )
    4 working days
    4,402.05 €
    ( 5,238.44 € )
    4 working days
  • 1

    • More Information

    Basic information

    V70eco base plates are a further development of the established V70 product line, optimized in quality and price.
    They are fully compatible with the existing V70 T-slot System.
    • Centers to H6 tolerance and slots to H8 tolerance.
    • Alignment of the base plate on the machine table by means of centers and/or centering slot.
    • Fastening holes on a 100 mm pitch.
    • High tensile tool steel.
