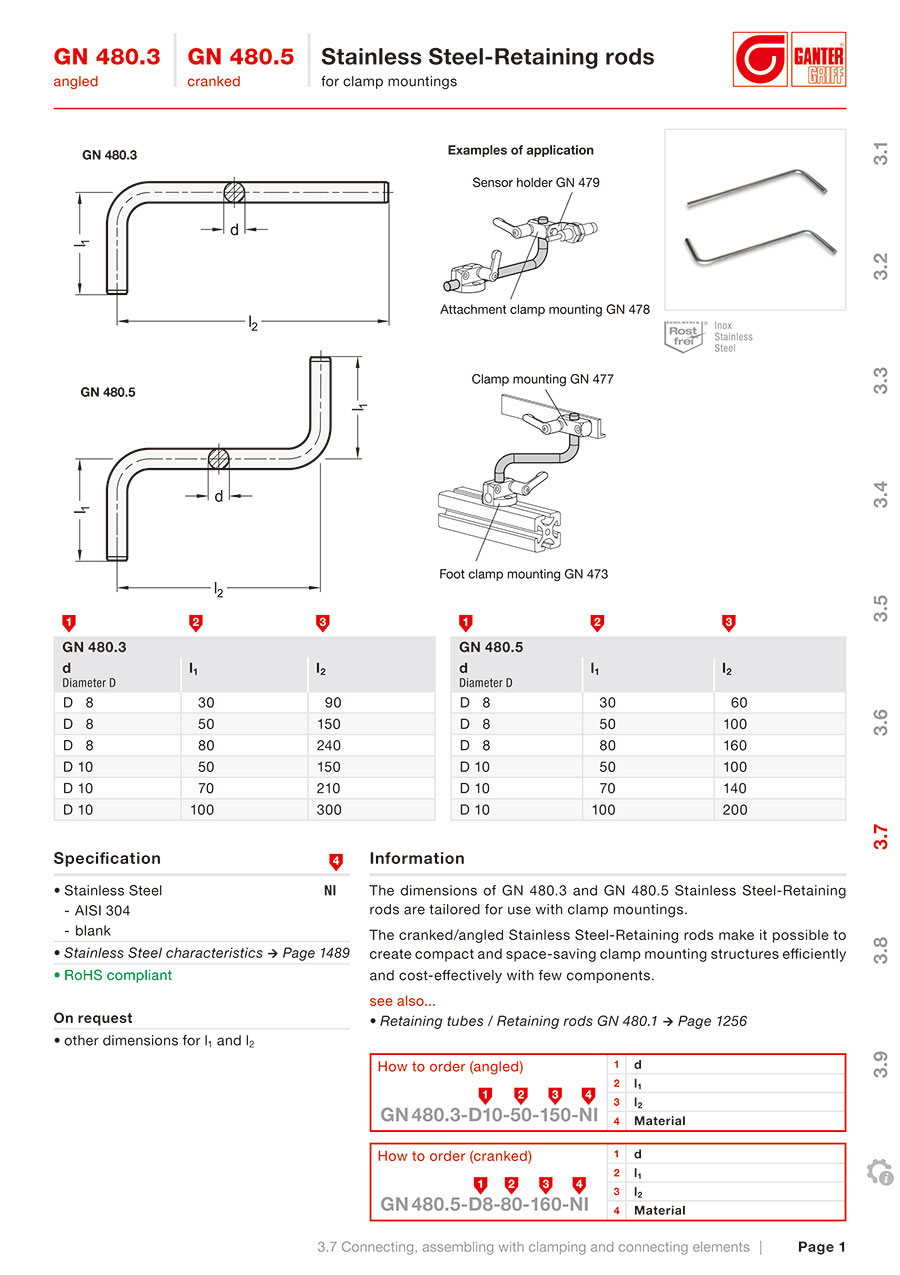

Holding rods for clamp holder / round / stainless steel / Z-shape / GN 480.5

Holding rods for clamp holder / round / stainless steel / Z-shape / GN 480.5

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    480.5-D8-30-60-NI
    480.5-D8-50-100-NI
    480.5-D8-80-160-NI
    480.5-D10-50-100-NI
    480.5-D10-70-140-NI
    480.5-D10-100-200-NI

    Diameter d

    Length l1

    Length l2

    Weight

    (kg)

    		Minimum order quantity
    D 8
    30
    60
    0.042
    1 pieces
    D 8
    50
    100
    0.074
    1 pieces
    D 8
    80
    160
    0.125
    1 pieces
    D 10
    50
    100
    0.113
    1 pieces
    D 10
    70
    140
    0.163
    1 pieces
    D 10
    100
    200
    0.237
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.68 €
    ( 9.14 € )
    7 working days
    8.46 €
    ( 10.07 € )
    7 working days
    10.38 €
    ( 12.35 € )
    7 working days
    9.58 €
    ( 11.40 € )
    7 working days
    11.38 €
    ( 13.54 € )
    7 working days
    14.96 €
    ( 17.80 € )
    7 working days
  • 1

    • More Information

    Basic information

    The dimensions of GN 480.5 Stainless Steel-Retaining rods are tailored for use with clamp mountings.

    The cranked Stainless Steel-Retaining rods make it possible to create compact and space-saving clamp mounting structures efficiently and cost-effectively with few components.
