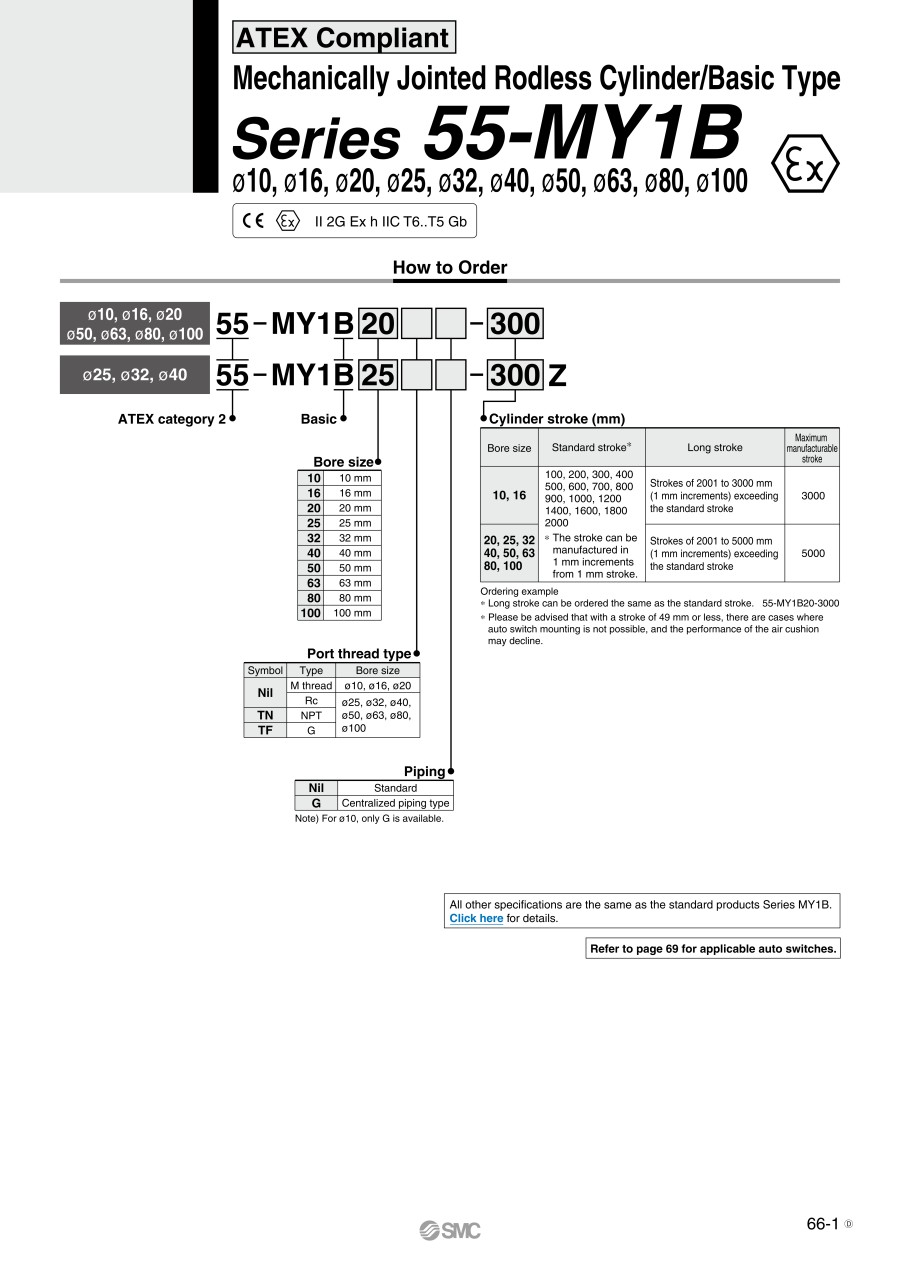

Mechanical Joint Type Rodless Cylinder, Basic Type 55-MY1B Series

Mechanical Joint Type Rodless Cylinder, Basic Type 55-MY1B Series

Caution

  • Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.

Part number:

Still undefined. 17 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    55-MY1B10G-350
    55-MY1B25-1500Z
    55-MY1B25G-400Z
    55-MY1B25TF-1000Z
    55-MY1B32-400Z
    55-MY1B32-850Z
    55-MY1B32G-3200Z
    55-MY1B32TFG-1600
    55-MY1B32TFG-600Z
    55-MY1B32TFG-800Z
    55-MY1B40-1000Z
    55-MY1B50-3000
    55-MY1B50TF-1800
    55-MY1B63-400
    55-MY1B63G-800
    55-MY1B80TF-1000
    55-MY1B100TFG-1200

    Stroke

    (mm)

    Max. Load Mass (Range Selectable)

    (kg)

    Max. Load Mass

    (kg)

    Table Size Length L

    (mm)

    Cylinder Inner Diameter

    (Ø)

    Table Size Width W

    (mm)

    Table Size Height H

    (mm)

    Operating Pressure

    (MPa)

    Piping Format

    Port Screw Type

    		Minimum order quantity
    350
    5~9.2
    5
    50
    10
    24
    27
    0.2 to 0.8
    Centralized piping type
    M screw
    1 pieces
    1,500
    20~39.9
    29
    110
    25
    42
    54
    0.1 to 0.8
    Standard type
    Rc
    1 pieces
    400
    20~39.9
    29
    110
    25
    42
    54
    0.1 to 0.8
    Centralized piping type
    Rc
    1 pieces
    1,000
    20~39.9
    29
    110
    25
    42
    54
    0.1 to 0.8
    Standard type
    G
    1 pieces
    400
    40~57
    40
    140
    32
    52
    68
    0.1 to 0.8
    Standard type
    Rc
    1 pieces
    850
    40~57
    40
    140
    32
    52
    68
    0.1 to 0.8
    Standard type
    Rc
    1 pieces
    3200
    40~57
    40
    140
    32
    52
    68
    0.1 to 0.8
    Centralized piping type
    Rc
    1 pieces
    1600
    40~57
    40
    140
    32
    52
    68
    0.1 to 0.8
    Centralized piping type
    G
    1 pieces
    600
    40~57
    40
    140
    32
    52
    68
    0.1 to 0.8
    Centralized piping type
    G
    1 pieces
    800
    40~57
    40
    140
    32
    52
    68
    0.1 to 0.8
    Centralized piping type
    G
    1 pieces
    1,000
    40~57
    53
    170
    40
    64
    84
    0.1 to 0.8
    Standard type
    Rc
    1 pieces
    3,000
    60~80
    70
    200
    50
    80
    94
    0.1 to 0.8
    Standard type
    Rc
    1 pieces
    1,800
    60~80
    70
    200
    50
    80
    94
    0.1 to 0.8
    Standard type
    G
    1 pieces
    400
    80.1~100.1
    83
    230
    63
    96
    116
    0.1 to 0.8
    Standard type
    Rc
    1 pieces
    800
    80.1~100.1
    83
    230
    63
    96
    116
    0.1 to 0.8
    Centralized piping type
    Rc
    1 pieces
    1,000
    120~150.1
    120
    340
    80
    112
    150
    0.1 to 0.8
    Standard type
    G
    1 pieces
    1,200
    120~150.1
    150
    400
    100
    140
    190
    0.1 to 0.8
    Centralized piping type
    G
    1 pieces
