Mechanical Joint Type Rodless Cylinder, Slide Bearing Guide Type 55-MY1M Series

Configure

Stroke(mm)
- 1,000
- 1,200
- 1,300
- 1,500
- 1,900
- 2,000
- 100
- 170
- 280
- 300
- 400
- 500
- 600
- 700
- 750
- 860
- 1060
- 1400
- 1600
Max. Load Mass (Range Selectable)(kg)
Max. Load Mass(kg)
- 18
- 26
- 57
- 84
- 120
- 180
Table Size Length L(mm)
- 80
- 100
- 102
- 132
- 162
- 200
- 230
Cylinder Inner Diameter(Ø)
- 16
- 20
- 25
- 32
- 40
- 50
- 63
Table Size Width W(mm)
- 68
- 72
- 84
- 102
- 118
- 144
- 168
Table Size Height H(mm)
- 40
- 46
- 54
- 68
- 84
- 107
- 130
Operating Pressure(MPa)
- 0.15 to 0.8
- 0.2 to 0.8
Piping Format
- Centralized piping type
- Standard type
Port Screw Type
- G
- M screw
- Rc
Type
Est. shipping days
- All
- Within 26 working days
- Within 28 working days
- Within 37 working days
- Within 38 working days
- Within 39 working days
- Within 40 working days
- Within 43 working days
- Within 45 working days
- Within 50 working days
- Within 52 working days

Mechanical Joint Type Rodless Cylinder, Slide Bearing Guide Type 55-MY1M Series

Catalog

Caution

Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.

Part number:

Still undefined. 29 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Stroke

(mm)

Max. Load Mass (Range Selectable)

(kg)

Max. Load Mass

(kg)

Table Size Length L

(mm)

Cylinder Inner Diameter

(Ø)

Table Size Width W

(mm)

Table Size Height H

(mm)

Operating Pressure

(MPa)

Piping Format

Port Screw Type

Minimum order quantity

100	10~19	18	80	16	68	40	0.2 to 0.8	Standard type	M screw	1 pieces
1,000	10~19	18	80	16	68	40	0.2 to 0.8	Centralized piping type	M screw	1 pieces
700	10~19	18	80	16	68	40	0.2 to 0.8	Centralized piping type	M screw	1 pieces
170	20~39.9	26	100	20	72	46	0.2 to 0.8	Standard type	M screw	1 pieces
280	20~39.9	26	100	20	72	46	0.2 to 0.8	Centralized piping type	M screw	1 pieces
500	20~39.9	26	102	25	84	54	0.15 to 0.8	Standard type	Rc	1 pieces
1,200	20~39.9	26	102	25	84	54	0.15 to 0.8	Centralized piping type	Rc	1 pieces
1,300	20~39.9	26	102	25	84	54	0.15 to 0.8	Centralized piping type	Rc	1 pieces
300	20~39.9	26	102	25	84	54	0.15 to 0.8	Centralized piping type	Rc	1 pieces
500	20~39.9	26	102	25	84	54	0.15 to 0.8	Centralized piping type	Rc	1 pieces
750	20~39.9	26	102	25	84	54	0.15 to 0.8	Centralized piping type	Rc	1 pieces
860	20~39.9	26	102	25	84	54	0.15 to 0.8	Centralized piping type	Rc	1 pieces
100	40~57	57	132	32	102	68	0.15 to 0.8	Standard type	Rc	1 pieces
400	40~57	57	132	32	102	68	0.15 to 0.8	Standard type	Rc	1 pieces
1600	40~57	57	132	32	102	68	0.15 to 0.8	Centralized piping type	Rc	1 pieces
400	40~57	57	132	32	102	68	0.15 to 0.8	Centralized piping type	Rc	1 pieces
1060	40~57	57	132	32	102	68	0.15 to 0.8	Centralized piping type	G	1 pieces
1,200	80.1~100.1	84	162	40	118	84	0.15 to 0.8	Standard type	Rc	1 pieces
1600	80.1~100.1	84	162	40	118	84	0.15 to 0.8	Standard type	Rc	1 pieces
1,500	80.1~100.1	84	162	40	118	84	0.15 to 0.8	Standard type	G	1 pieces
400	80.1~100.1	84	162	40	118	84	0.15 to 0.8	Standard type	G	1 pieces
600	80.1~100.1	84	162	40	118	84	0.15 to 0.8	Centralized piping type	G	1 pieces
1,000	120~150.1	120	200	50	144	107	0.15 to 0.8	Centralized piping type	G	1 pieces
1400	120~150.1	120	200	50	144	107	0.15 to 0.8	Centralized piping type	G	1 pieces
1,000	153～	180	230	63	168	130	0.15 to 0.8	Standard type	Rc	1 pieces
1,200	153～	180	230	63	168	130	0.15 to 0.8	Standard type	Rc	1 pieces
500	153～	180	230	63	168	130	0.15 to 0.8	Standard type	Rc	1 pieces
1,900	153～	180	230	63	168	130	0.15 to 0.8	Centralized piping type	Rc	1 pieces
2,000	153～	180	230	63	168	130	0.15 to 0.8	Centralized piping type	G	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

398.02 € ( 473.64 € )	37 working days
562.35 € ( 669.20 € )	40 working days
514.68 € ( 612.47 € )	37 working days
503.89 € ( 599.63 € )	37 working days
542.98 € ( 646.15 € )	50 working days
622.03 € ( 740.22 € )	45 working days
779.40 € ( 927.49 € )	52 working days
798.73 € ( 950.49 € )	52 working days
604.81 € ( 719.72 € )	37 working days
643.61 € ( 765.90 € )	37 working days
701.74 € ( 835.07 € )	50 working days
721.16 € ( 858.18 € )	40 working days
706.63 € ( 840.89 € )	45 working days
786.02 € ( 935.36 € )	37 working days
1,125.03 € ( 1,338.79 € )	37 working days
807.60 € ( 961.04 € )	50 working days
992.76 € ( 1,181.38 € )	28 working days
1,155.50 € ( 1,375.05 € )	38 working days
1,284.61 € ( 1,528.69 € )	43 working days
1,252.35 € ( 1,490.30 € )	97 working days
897.39 € ( 1,067.89 € )	26 working days
992.89 € ( 1,181.54 € )	39 working days
1,514.35 € ( 1,802.08 € )	26 working days
1,745.45 € ( 2,077.09 € )	28 working days
1,723.05 € ( 2,050.43 € )	52 working days
1,858.35 € ( 2,211.44 € )	93 working days
1,384.68 € ( 1,647.77 € )	52 working days
2,361.35 € ( 2,810.01 € )	43 working days
2,429.02 € ( 2,890.53 € )	43 working days

More Information

Basic information

Basic information

Caution

Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.

Catalog

Products homepage

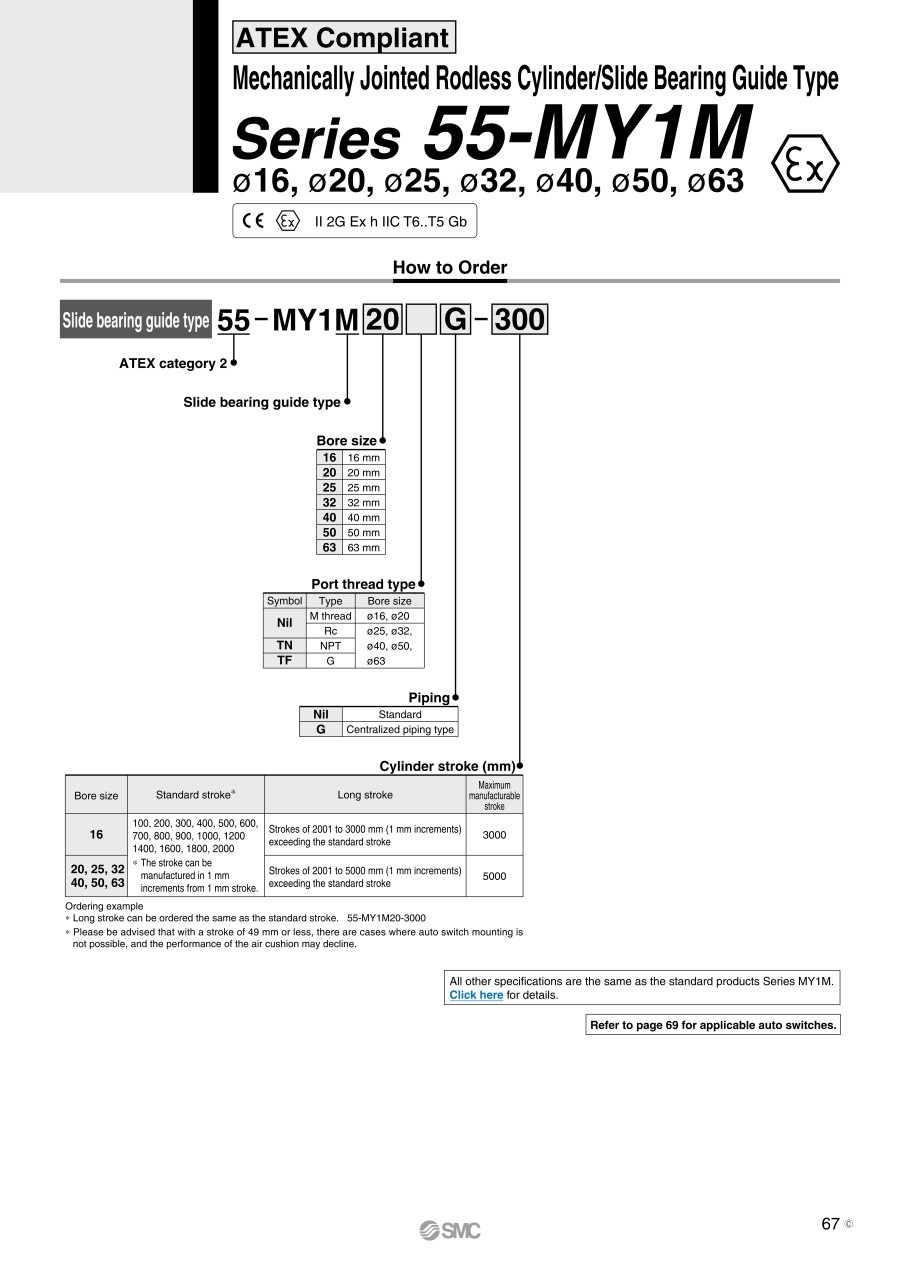

Catalog (2-page spread)
