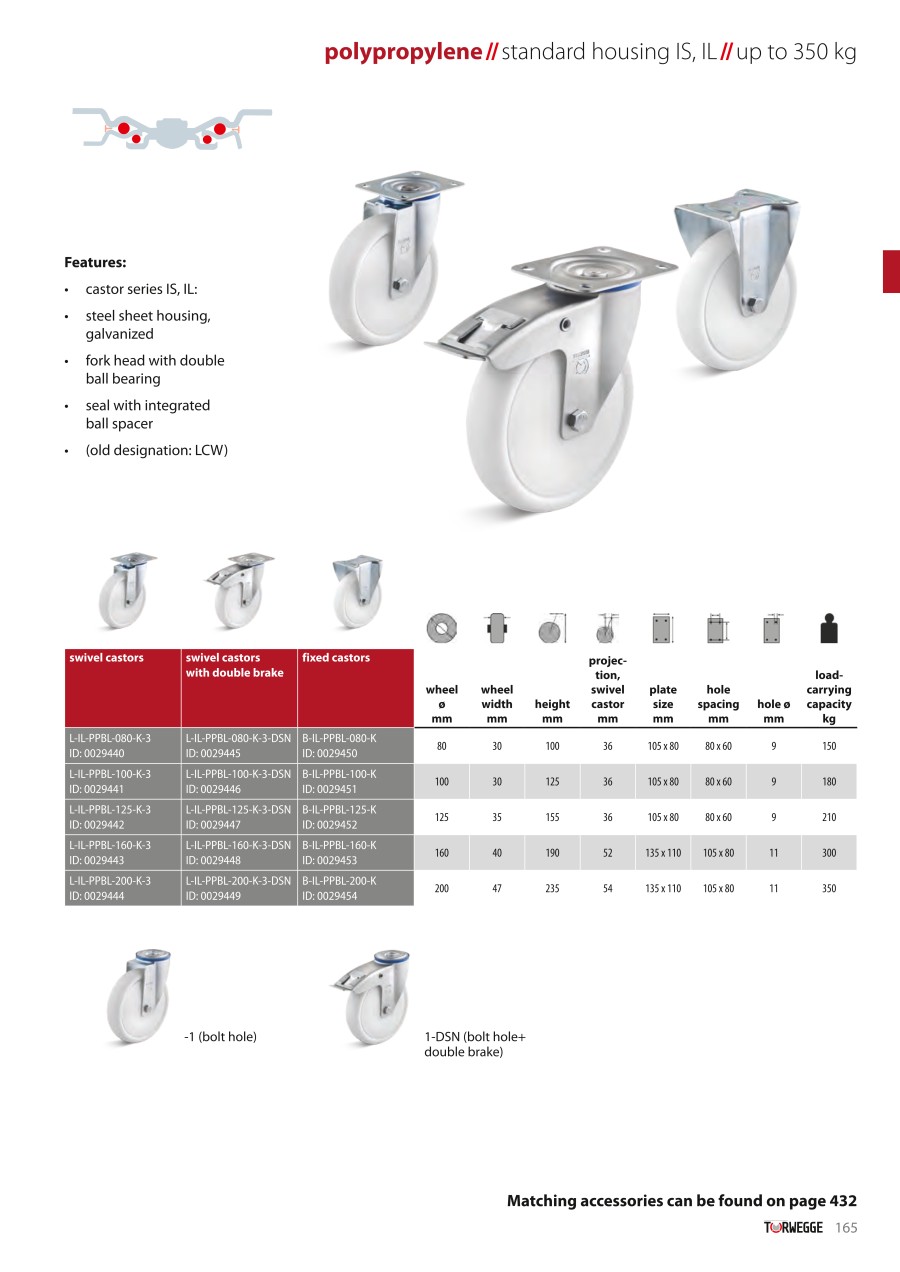

Swivel Castors with polypropylene wheel
・Rolls and case type: Steering housing
・Housing material RR: Steel galvanized
・Rim material: Polypropylene
・Tread material: Polypropylene, Polyurethane
・Tread color: White
・Wheel diameter(mm): 80-200
・Wheel width(mm): 30-47
・Load capacity dynamic(kg): 150-350
[Features]
・castor series IL:
・steel sheet housing, galvanized
・fork head with double ball bearing
・seal with integrated ball spacer
・(old designation:LCW)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-IL-PPBL-080-K-3 |
| L-IL-PPBL-100-K-3 |
| L-IL-PPBL-125-K-3 |
| L-IL-PPBL-160-K-3 |
| L-IL-PPBL-200-K-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Bolt Hole Length (mm) | Bolt hole width (mm) | Screw hole (mm) | panel thickness (mm) | Clevis bearing type | Clevis connection | Tread material | Swivel Radius (mm) | fork strength (mm) | Overall height housing (to center axis) (mm) | Axle bore housing (mm) | Light width (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.38 € | 1 | 4 Days | 105 | 80 | 80 | 30 | 150 | 100 | 36 | 80 | 60 | 9 | 2 | Clevis with double ball bearing | riveted | Polypropylene | 76.5 | 2 | 60 | 8.1 | 43 | 0.6 | ||
8.51 € | 1 | 4 Days | 105 | 80 | 100 | 30 | 180 | 125 | 36 | 80 | 60 | 9 | 2.5 | - | - | Polypropylene | 86.5 | 2.5 | 75 | 8.1 | 43 | 0.65 | ||
10.60 € | 1 | 4 Days | 105 | 80 | 125 | 35 | 210 | 155 | 36 | 80 | 60 | 9 | 3 | - | - | Polyurethane | 99 | 3 | 92.5 | 8.1 | 53 | 0.8 | ||
19.27 € | 1 | 4 Days | 135 | 110 | 160 | 40 | 300 | 190 | 52 | 105 | 80 | 11 | 3 | - | - | Polypropylene | 132 | 3 | 110 | 12.1 | 63 | 1.7 | ||
23.40 € | 1 | 4 Days | 135 | 110 | 200 | 47 | 350 | 235 | 54 | 105 | 80 | 11 | 3 | - | - | Polypropylene | 157 | 3 | 135 | 12.1 | 63 | 2.2 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Mounting plate | Wheel bearing | Ball-bearing |
|---|---|---|---|---|---|
| Housing Series Type | IL (LCW/BCW) | Housing material RR | Steel galvanized | Material Description Housing | Lightweight, pressed sheet steel housing, galvanized |
| Surface coating | galvanized | Number of wheels [piece] | 1 | Rim material | Polypropylene |
| electrically conductive | none | Tread color | White | Tread type | crowned |
| Housing classification | Standard housing IL |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Screw hole(mm)
-
panel thickness(mm)
-
Clevis bearing type
- Clevis with double ball bearing
-
Clevis connection
- riveted
-
Tread material
- Polypropylene
- Polyurethane
-
Swivel Radius(mm)
-
fork strength(mm)
- 2
- 2.5
- 3
-
Overall height housing (to center axis)(mm)
-
Axle bore housing(mm)
- 8.1
- 12.1
-
Light width(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
