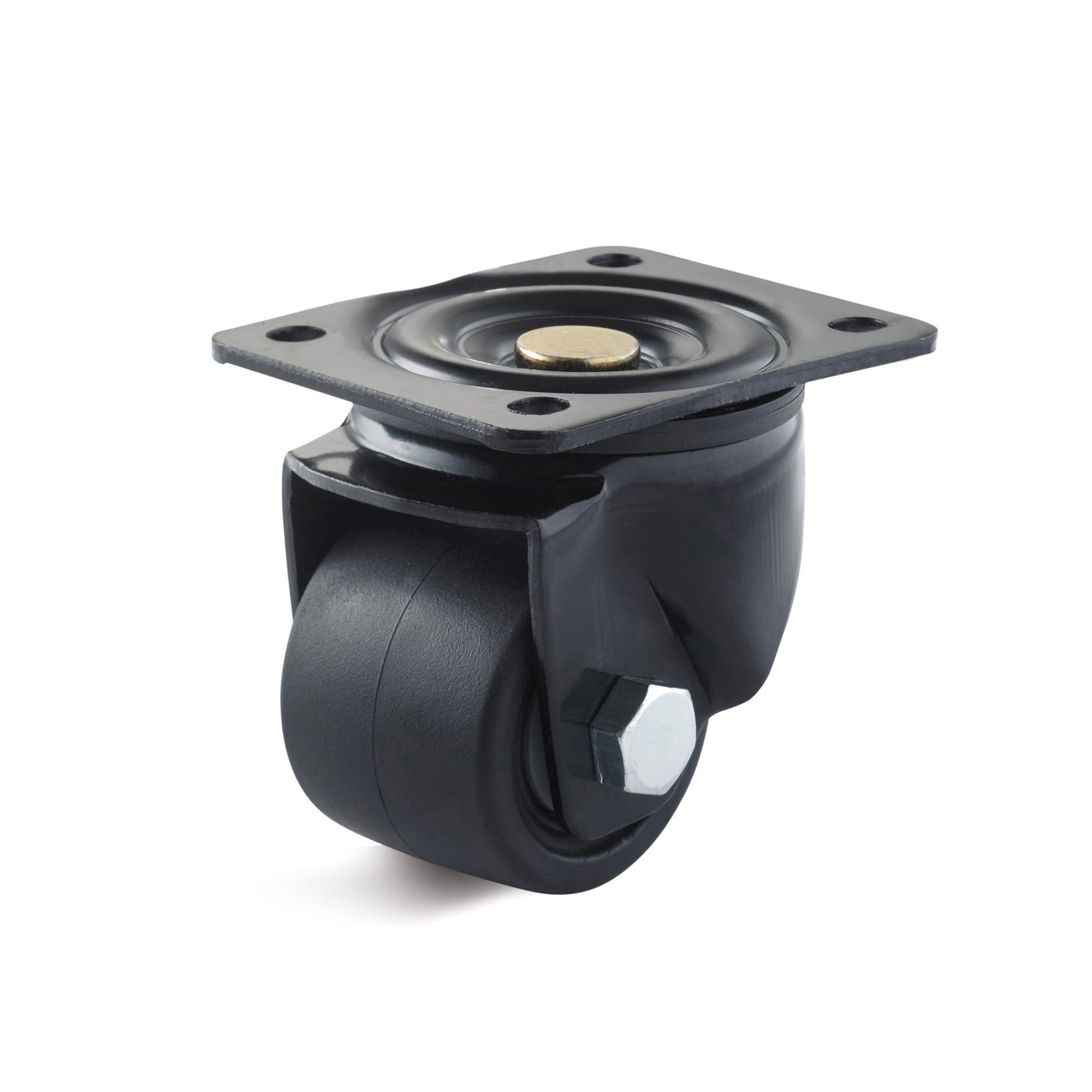

Swivel Castors with polyamide wheel / Steering housing / Mounting plate

Name: Swivel Castors with polyamide wheel / Steering housing / Mounting plate from TORWEGGE | MISUMI
Brand: TORWEGGE
SKU: 221302306672
Availability: Instock

Mouse over image to enlarge

Part number:

Still undefined. 20 possible part numbers found.

Part number list
More Information

Part number list

Number of items

Part number

Plate length

(mm)

Plate width

(mm)

Wheel diameter

(mm)

Wheel width

(mm)

Load capacity dynamic

(kg)

overall height

(mm)

Discharge swivel castor

(mm)

Wheel bearing

Housing Series Type

Bolt Hole Length

(mm)

Housing material RR

Bolt hole width

(mm)

Material Description Housing

Surface coating

Screw hole

(mm)

panel thickness

(mm)

Number of wheels [piece]

Clevis bearing type

Clevis connection

Swivel Radius

(mm)

electrically conductive

Housing design

Clevis bearing seal

Tread color

Tread type

Bearing shell type

fork strength

(mm)

Stop screw adjustable

Overall height housing (to center axis)

(mm)

Stop Type

Axle bore housing

(mm)

Light width

(mm)

Housing classification

Min. temperature resistance

(° C)

Max. temperature resistance

(° C)

Weight

(kg)

Minimum order quantity

100	100	65	50	500	95	20	Ball-bearing	HN (501/502)	80	Painted steel	80	-	Painted black	11	4	1	Clevis with double ball bearing	riveted	-	none	drawn	Gasket ring black	Black	crowned	not hardened	3	-	62	-	12	54	-	-	-	1.07	1 pieces
100	100	65	50	500	95	20	Ball-bearing	HN (501/502)	80	Painted steel	80	-	Painted black	11	4	1	Clevis with double ball bearing	riveted	100	none	drawn	Gasket ring black	Black	crowned	not hardened	3	No	62	wheel lock	12	56	-	-	-	1.17	1 pieces
105	80	80	35	150	100	36	Roller bearing	IL (LCW/BCW)	80	-	60	-	-	9	-	-	-	-	76.5	electrically conductive	-	-	Black	-	-	-	-	-	-	-	-	Standard housing IL	-20	90	0.57	1 pieces
105	80	100	35	150	125	36	Roller bearing	IL (LCW/BCW)	80	-	60	-	-	9	-	-	-	-	86.5	electrically conductive	-	-	Black	-	-	-	-	-	-	-	-	Standard housing IL	-20	90	0.68	1 pieces
105	80	125	35	200	155	37	Roller bearing	IL (LCW/BCW)	80	-	60	-	-	9	-	-	-	-	99	electrically conductive	-	-	Black	-	-	-	-	-	-	-	-	Standard housing IL	-20	90	0.92	1 pieces
135	110	150	45	350	185	52	Ball-bearing	IL (LCW/BCW)	105	-	80	-	-	11	-	-	-	-	127	electrically conductive	-	-	Black	-	-	-	-	-	-	-	-	Standard housing IL	-20	90	1.99	1 pieces
135	110	200	50	350	235	53	Ball-bearing	IL (LCW/BCW)	105	-	80	-	-	11	-	1	-	-	157	electrically conductive	-	-	Black	-	-	-	-	-	-	-	-	Standard housing IL	-20	90	2.52	1 pieces
105	80	80	35	200	108	40	Ball-bearing	IM (LU/BU)	80	Steel galvanized	60	Medium weight, pressed housing, galvanized	galvanized	8.5	3.5	1	Clevis with double ball bearing	riveted	80	none	drawn	Gasket ring red	White	-	-	3.5	-	-	-	8	43	Medium weight housing IM	-25	90	0.92	1 pieces
105	80	80	35	200	108	40	Ball-bearing	IM (LU/BU)	80	Steel	60	-	galvanized	8.5	-	1	-	-	80	electrically conductive	-	-	Anthracite	-	-	-	-	-	-	-	-	Medium weight housing IM	-25	90	0.95	1 pieces
105	80	100	35	300	128	40	Ball-bearing	IM (LU/BU)	80	Steel galvanized	60	Medium weight, pressed housing, galvanized	galvanized	8.5	3.5	1	Clevis with double ball bearing	riveted	90	none	drawn	Gasket ring red	White	-	-	3.5	-	-	-	8	43	Medium weight housing IM	-25	90	1.05	1 pieces
105	80	100	35	300	128	40	Ball-bearing	IM (LU/BU)	80	-	60	-	galvanized	8.5	-	-	-	-	90	electrically conductive	-	-	Anthracite	-	-	-	-	-	-	-	-	Medium weight housing IM	-25	90	1.1	1 pieces
105	80	125	40	350	155	40	Ball-bearing	IM (LU/BU)	80	Steel galvanized	60	Medium weight, pressed housing, galvanized	galvanized	8.5	3.5	1	Clevis with double ball bearing	riveted	102.5	none	drawn	Gasket ring red	White	-	-	3.5	-	-	-	10	53	Medium weight housing IM	-25	90	1.4	1 pieces
105	80	125	40	400	155	40	Ball-bearing	IM (LU/BU)	80	-	60	-	galvanized	8.5	-	-	-	-	102.5	electrically conductive	-	-	Anthracite	-	-	-	-	-	-	-	-	Medium weight housing IM	-25	90	1.35	1 pieces
135	110	150	45	500	195	56	Ball-bearing	IM (LU/BU)	105	Steel galvanized	80	Medium weight, pressed housing, galvanized	galvanized	10.5	4	1	Clevis with double ball bearing	riveted	131	none	drawn	Gasket ring red	White	-	-	4	-	-	-	12	63	Medium weight housing IM	-25	90	2.6	1 pieces
135	110	150	45	500	195	56	Ball-bearing	IM (LU/BU)	105	-	80	-	galvanized	10.5	-	-	-	-	131	electrically conductive	-	-	Anthracite	-	-	-	-	-	-	-	-	Medium weight housing IM	-25	90	2.7	1 pieces
135	110	200	50	500	245	56	Ball-bearing	IM (LU/BU)	105	Steel galvanized	80	Medium weight, pressed housing, galvanized	galvanized	10.5	4	1	Clevis with double ball bearing	riveted	156	none	drawn	Gasket ring red	White	-	-	4	-	-	-	12	63	Medium weight housing IM	-25	90	3.1	1 pieces
135	110	200	50	500	245	56	Ball-bearing	IM (LU/BU)	105	-	80	-	galvanized	10.5	-	-	-	-	156	electrically conductive	-	-	Anthracite	-	-	-	-	-	-	-	-	Medium weight housing IM	-25	90	3.67	1 pieces
135	110	250	60	700	297	67	Ball-bearing	IM (LU/BU)	105	Steel galvanized	80	Medium weight, pressed housing, galvanized	galvanized	10.5	5	1	Clevis with double ball bearing	riveted	192	none	drawn	Gasket ring red	White	-	-	5	-	-	-	12	77	Medium weight housing IM	-25	90	4.93	1 pieces
80	60	58	29	75	76	21	Roller bearing	IS (LI/BI)	60	Steel galvanized	40	Lightweight, pressed sheet steel housing, galvanized	galvanized	-	-	1	Clevis with double ball bearing	riveted	-	-	-	-	Black	cylindrical	-	-	-	-	-	-	-	Standard housing IL	-	-	0.252	1 pieces
95	70	65	32	100	88	20	Roller bearing	IS (LI/BI)	75	Steel galvanized	45	Lightweight, pressed sheet steel housing, galvanized	galvanized	6.5	2.5	1	Clevis with double ball bearing	riveted	-	-	-	without gasket ring	Black	crowned	not hardened	-	-	-	-	8	38	Standard housing IL	-	-	0.396	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

21.26 € ( 25.30 € )	4 working days
23.90 € ( 28.44 € )	4 working days
14.36 € ( 17.09 € )	5 working days
20.55 € ( 24.45 € )	5 working days
26.33 € ( 31.33 € )	5 working days
61.77 € ( 73.51 € )	5 working days
89.54 € ( 106.55 € )	5 working days
16.21 € ( 19.29 € )	5 working days
26.25 € ( 31.24 € )	5 working days
17.83 € ( 21.22 € )	4 working days
31.93 € ( 38.00 € )	5 working days
21.81 € ( 25.95 € )	5 working days
48.15 € ( 57.30 € )	5 working days
32.18 € ( 38.29 € )	5 working days
76.03 € ( 90.48 € )	5 working days
36.93 € ( 43.95 € )	5 working days
94.18 € ( 112.07 € )	5 working days
74.94 € ( 89.18 € )	5 working days
13.51 € ( 16.08 € )	4 working days
9.75 € ( 11.60 € )	4 working days

More Information

Basic information

Basic information

[Specifications]
・Rolls and case type: Steering housing
・Wheel bearing: Ball-bearing, Roller bearing
・Rim material: Polyamide
・Tread material: Polyamide
・Tread color: Anthracite, Black, White
・Tread type: crowned, cylindrical
・Mounting type: Mounting plate
・Housing material RR: Painted steel,Steel, Steel galvanized
・Clevis bearing type: Clevis with double ball bearing
・Clevis connection: riveted
・Stop Type: wheel lock
