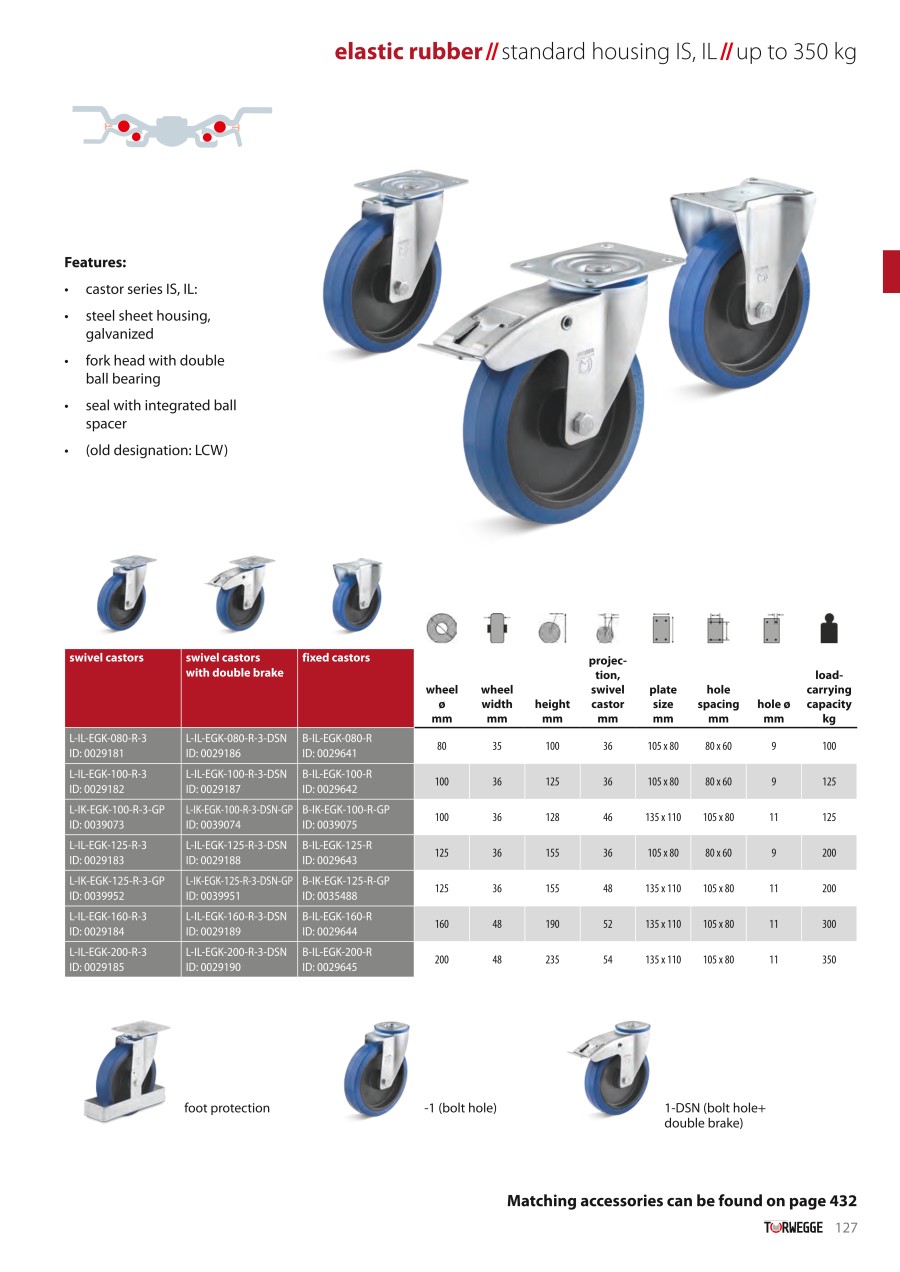

Swivel Castors with blue elastic solid rubber wheel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-IK-EGK-125-R-3-GP |
| L-IL-EGK-080-R-3 |
| L-IL-EGK-100-R-3 |
| L-IL-EGK-125-R-3 |
| L-IL-EGK-160-R-3 |
| L-IL-EGK-200-R-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Bolt Hole Length (mm) | Bolt hole width (mm) | Screw hole (mm) | Swivel Radius (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
19.47 € | 1 | 5 Days | 135 | 110 | 125 | 36 | 200 | 155 | 48 | 105 | 80 | 11 | 110.5 | 1.1 | ||
9.73 € | 1 | 5 Days | 105 | 80 | 80 | 35 | 100 | 100 | 36 | 80 | 60 | 9 | 76.5 | 0.622 | ||
11.69 € | 1 | 4 Days | 105 | 80 | 100 | 36 | 125 | 125 | 36 | 80 | 60 | 9 | 86.5 | 0.732 | ||
14.46 € | 1 | 5 Days | 105 | 80 | 125 | 36 | 200 | 155 | 36 | 80 | 60 | 9 | 99 | 0.99 | ||
26.28 € | 1 | 4 Days | 135 | 110 | 160 | 48 | 300 | 190 | 52 | 105 | 80 | 11 | 132 | 2.1 | ||
35.32 € | 1 | 4 Days | 135 | 110 | 200 | 48 | 350 | 235 | 54 | 105 | 80 | 11 | 157 | 2.41 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Mounting plate | Wheel bearing | Roller bearing |
|---|---|---|---|---|---|
| Housing Series Type | IL (LCW/BCW) | Number of wheels [piece] | 1 | Clevis bearing type | Clevis with double ball bearing |
| Clevis connection | riveted | Rim material | Plastic | Tread material | Elastic rubber |
| Housing design | drawn | Clevis bearing seal | Gasket ring blue | Tread color | Blue |
| Bearing shell type | not hardened | Housing classification | Standard housing IL | Min. temperature resistance(° C) | -20 |
| Max. temperature resistance(° C) | 80 |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Screw hole(mm)
-
Swivel Radius(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
