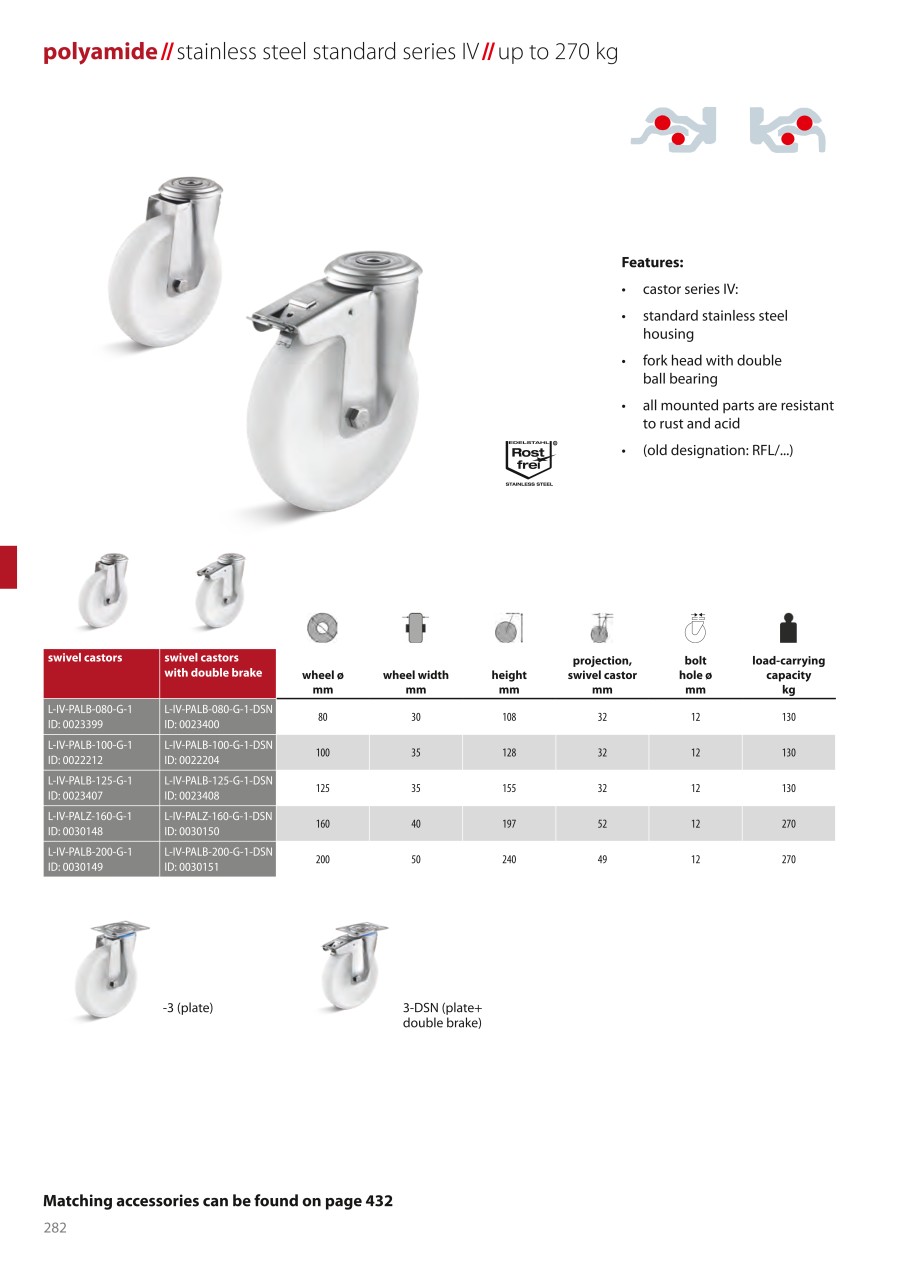

Stainless steel swivel Castors with back hole and polyamide wheel
・Rolls and case type: Steering housing
・Housing classification: Stainless steel standard series IV
・Rim material: Polyamide
・Tread material: Polyamide
・Wheel diameter(mm): 80-200
・Wheel width(mm): 30-50
・Load capacity dynamic(kg): 130, 270
[Features]
・castor series IV:
・standard stainless steel housing
・fork head with double ball bearing
・all mounted parts are resistant to rust and acid
・(old designation: RFL/...)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-IV-PALB-080-G-1 |
| L-IV-PALB-100-G-1 |
| L-IV-PALB-125-G-1 |
| L-IV-PALB-200-G-1 |
| L-IV-PALK-080-R-1-EC |
| L-IV-PALK-125-R-1-EC |
| L-IV-PALZ-160-G-1 |
| L-IV-PAM-150-K-1-EC |
| L-IV-PAM-200-K-1-EC |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Wheel bearing | Bolt hole Ø (mm) | Swivel Radius (mm) | electrically conductive | Min. temperature resistance (° C) | Max. temperature resistance (° C) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16.14 € | 1 | 5 Days | 80 | 30 | 130 | 108 | 32 | - | 12 | 72 | none | - | - | 0.395 | ||
17.72 € | 1 | 5 Days | 100 | 35 | 130 | 128 | 32 | - | 12 | 82 | none | - | - | 0.45 | ||
21.68 € | 1 | 5 Days | 125 | 35 | 130 | 155 | 32 | - | 12 | 94.5 | none | - | - | 0.65 | ||
40.02 € | 1 | 5 Days | 200 | 50 | 270 | 240 | 49 | - | 12.5 | 149 | none | - | - | 1.7 | ||
24.16 € | 1 | 5 Days | 80 | 35 | 130 | 108 | 32 | Roller bearing | 12 | 72 | electrically conductive | -20 | 90 | 0.38 | ||
36.69 € | 1 | 5 Days | 125 | 37 | 130 | 155 | 32 | Roller bearing | 12 | 94.5 | electrically conductive | -20 | 90 | 0.89 | ||
36.79 € | 1 | 4 Days | 160 | 40 | 270 | 197 | 52 | - | 12 | 132 | none | - | - | 1.2 | ||
95.28 € | 1 | 5 Days | 150 | 45 | 270 | 192 | 52 | Ball-bearing | 12 | 132 | electrically conductive | -20 | 90 | 1.54 | ||
122.94 € | 1 | 5 Days | 200 | 50 | 270 | 245 | 49 | Ball-bearing | 12 | - | electrically conductive | -20 | 90 | 2.1 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Baack hole | Rim material | Polyamide |
|---|---|---|---|---|---|
| Tread material | Polyamide | Housing classification | Stainless steel standard series IV |
Configure
Basic Attributes
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Wheel bearing
- Ball-bearing
- Roller bearing
-
Bolt hole Ø(mm)
- 12
- 12.5
-
Swivel Radius(mm)
-
electrically conductive
- electrically conductive
- none
-
Min. temperature resistance(° C)
- -20
-
Max. temperature resistance(° C)
- 90
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
