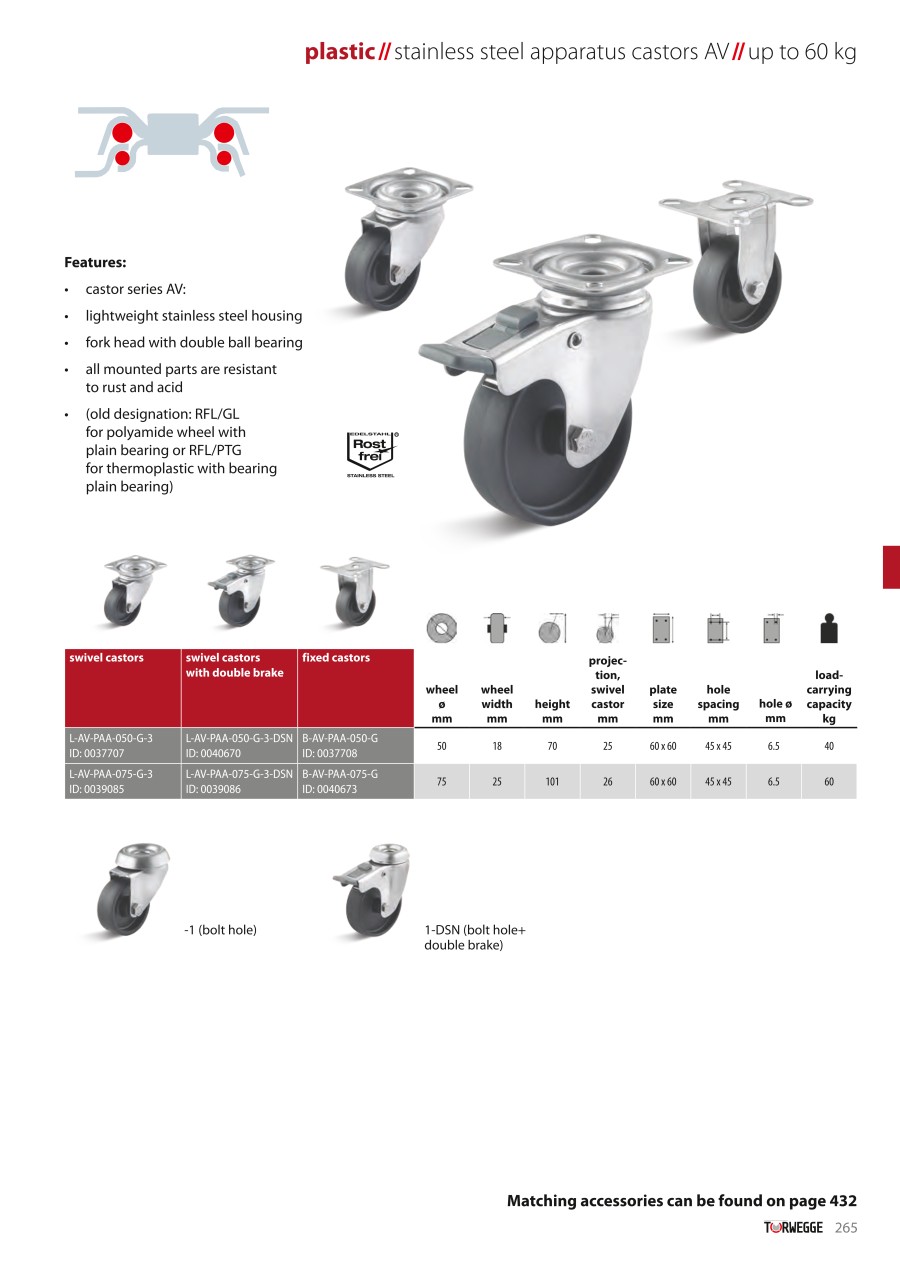

Stainless steel apparatus Castors with Polyamidrad and plain bearings
[Specifications]
・Rolls and case type: Fixed bracket
・Housing classification: Stainless steel apparatus castors AV
・Wheel diameter(mm): 50, 75
・Wheel width(mm): 18, 25
・Load capacity dynamic(kg): 40, 60
[Features]
・castor series AV:
・lightweight stainless steel housing
・fork head with double ball bearing
・all mounted parts are resistant to rust and acid
・(old designation: RFL/GL for polyamide wheel with plain bearing or RFL/PTG for thermoplastic with bearing plain bearing)
・Rolls and case type: Fixed bracket
・Housing classification: Stainless steel apparatus castors AV
・Wheel diameter(mm): 50, 75
・Wheel width(mm): 18, 25
・Load capacity dynamic(kg): 40, 60
[Features]
・castor series AV:
・lightweight stainless steel housing
・fork head with double ball bearing
・all mounted parts are resistant to rust and acid
・(old designation: RFL/GL for polyamide wheel with plain bearing or RFL/PTG for thermoplastic with bearing plain bearing)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| B-AV-PAA-050-G |
| B-AV-PAA-075-G |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
4.52 € | 1 | 5 Days | 50 | 18 | 40 | 70 | 0.12 | ||
12.73 € | 1 | 5 Days | 75 | 25 | 60 | 101 | 0.17 |
Loading...
Basic information
| Plate length(mm) | 60 | Plate width(mm) | 60 | Rolls and case type | Fixed bracket |
|---|---|---|---|---|---|
| Mounting type | Mounting plate | Bolt Hole Length(mm) | 45 | Bolt hole width(mm) | 45 |
| Housing classification | Stainless steel apparatus castors AV |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
