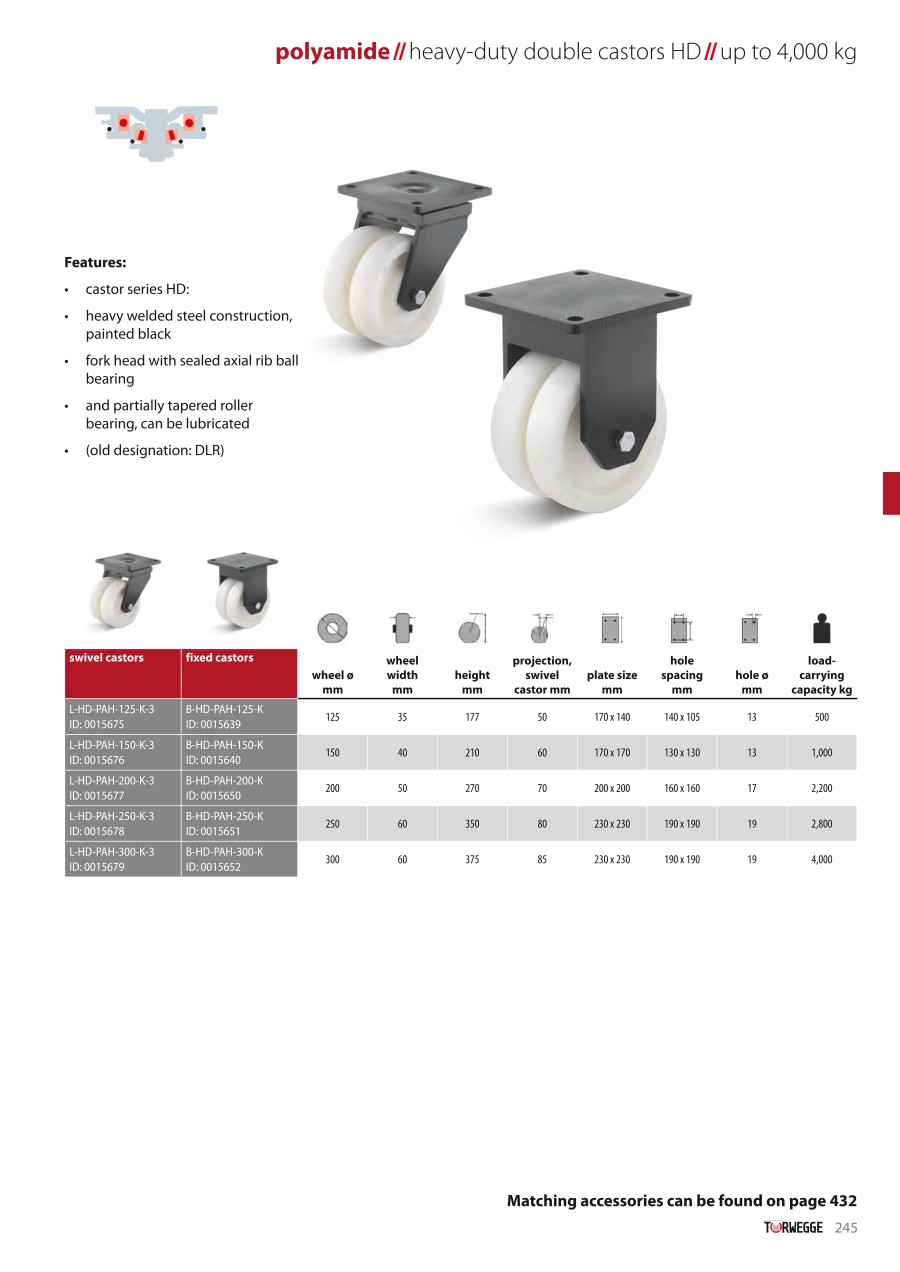

Double heavy duty swivel Castors with polyamide wheel
・Rolls and case type: Steering housing
・Housing material RR: Steel
・Rim material: Polyamide
・Tread material: Polyamide
・Tread color: White
・Wheel diameter(mm): 125-300
・Wheel width(mm): 35-60
・Load capacity dynamic(kg): 500-4000
[Features]
・castor series HD:
・heavy welded steel construction, painted black
・fork head with sealed axial rib ball bearing
・and partially tapered roller bearing, can be lubricated
・(old designation: DLR)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-HD-PAH-125-K-3 |
| L-HD-PAH-150-K-3 |
| L-HD-PAH-200-K-3 |
| L-HD-PAH-250-K-3 |
| L-HD-PAH-300-K-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Bolt Hole Length (mm) | Bolt hole width (mm) | Surface coating | Screw hole (mm) | Number of wheels [piece] | Housing design | Clevis bearing seal | Tread type | Bearing shell type | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
142.53 € | 1 | 4 Days | 170 | 140 | 125 | 35 | 500 | 177 | 50 | 140 | 105 | Painted | 13 | 2 | welded | without gasket ring | cylindrical | hardened | 5.4 | ||
313.23 € | 1 | 5 Days | 170 | 170 | 150 | 40 | 1000 | 210 | 60 | 130 | 130 | - | 13 | - | - | - | - | - | 7.7 | ||
220.05 € | 1 | 5 Days | 200 | 200 | 200 | 50 | 2200 | 270 | 70 | 160 | 160 | - | 17 | - | - | - | - | - | 12.9 | ||
489.27 € | 1 | 5 Days | 230 | 230 | 250 | 60 | 2800 | 350 | 80 | 190 | 190 | - | 19 | - | - | - | - | - | 22.4 | ||
435.08 € | 1 | 5 Days | 230 | 230 | 300 | 60 | 4000 | 375 | 80 | 190 | 190 | - | 19 | - | - | - | - | - | 22.8 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Mounting plate | Wheel bearing | Ball-bearing |
|---|---|---|---|---|---|
| Housing Series Type | HD-DLR/DBR | Housing material RR | Steel | Rim material | Polyamide |
| Tread material | Polyamide | electrically conductive | none | Tread color | White |
| Housing classification | Heavy Duty Double Rollers HD |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Surface coating
- Painted
-
Screw hole(mm)
-
Number of wheels [piece]
- 2
-
Housing design
- welded
-
Clevis bearing seal
- without gasket ring
-
Tread type
- cylindrical
-
Bearing shell type
- hardened
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
