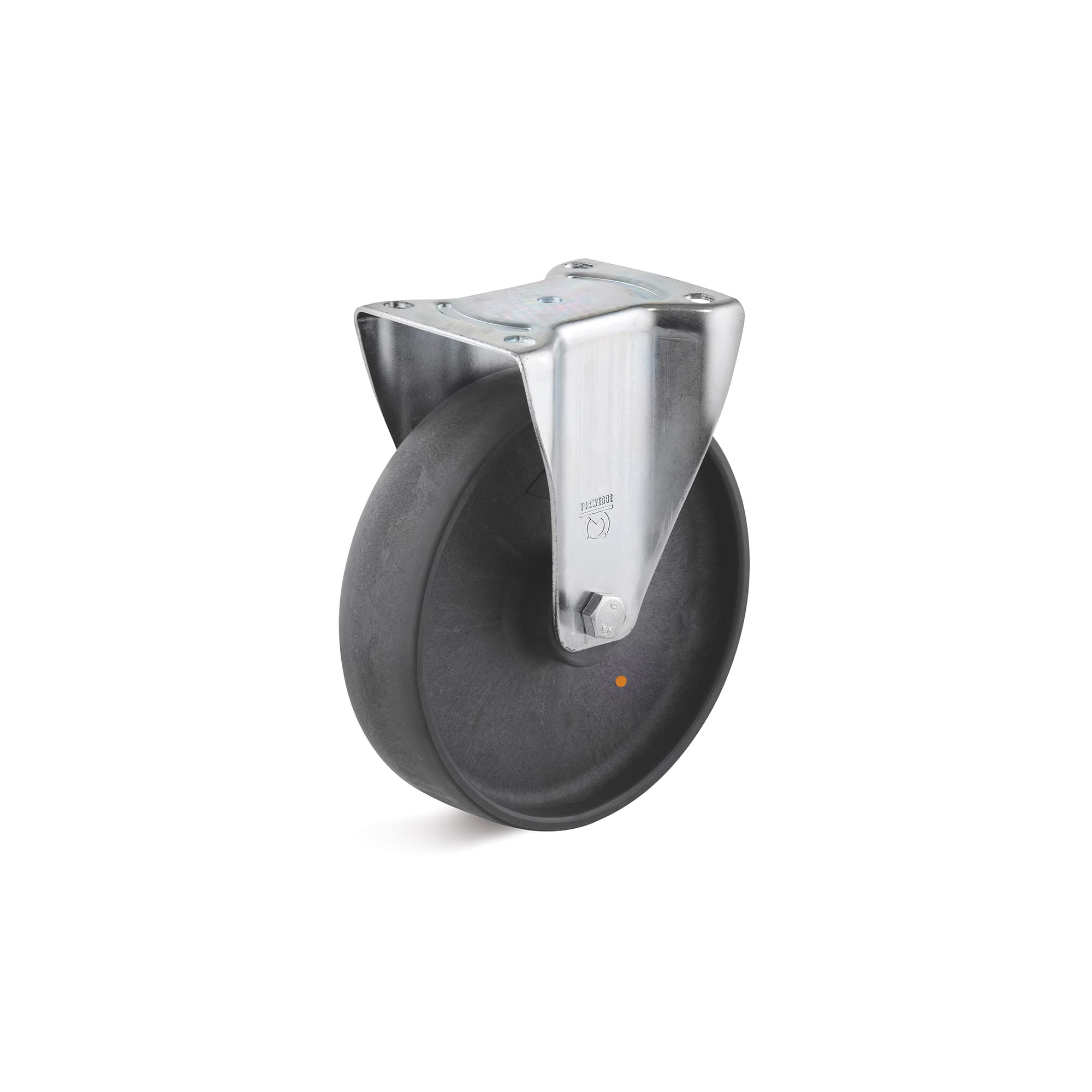

Fixed Castors with polyamide wheel
・Rolls and case type: Fixed bracket
・Mounting type: Mounting plate
・Tread material: Polyamide
・Wheel diameter(mm): 58-300
・Wheel width(mm): 25-60
・Load capacity dynamic(kg): 75-2000
[Features]
castor series HB, HN:
・heavy welded steel construction, galvanized
・fork head with axial rib ball bearing and tapered roller bearing, can be lubricated
・center pin screwed and secured
・(old designation: LP)
castor series IK, IL, IP, IS:
・steel sheet housing, galvanized
・fork head with double ball bearing
・seal with integrated ball spacer
・(old designation:LCW)
castor series IM:
・heavy steel plate housing, galvanized
・fork head with double ball bearing
・(old designation: LU)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Wheel bearing | Housing Series Type | Bolt Hole Length (mm) | Housing material RR | Bolt hole width (mm) | Material Description Housing | Surface coating | Screw hole (mm) | panel thickness (mm) | Number of wheels [piece] | Rim material | electrically conductive | Housing design | Tread color | Tread type | fork strength (mm) | Overall height housing (to center axis) (mm) | Axle bore housing (mm) | Light width (mm) | Housing classification | Min. temperature resistance (° C) | Max. temperature resistance (° C) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
39.88 € | 1 | 5 Days | 135 | 110 | 100 | 40 | 500 | 150 | - | - | HB (LP/BP) | 105 | - | 80 | - | - | 11 | - | - | Polyamide | none | welded | White | - | - | - | - | - | Heavy load series HB | -25 | 90 | 2.17 | ||
40.26 € | 1 | 5 Days | 135 | 110 | 125 | 50 | 700 | 170 | - | - | HB (LP/BP) | 105 | - | 80 | - | - | 11 | - | - | Polyamide | none | welded | White | - | - | - | - | - | Heavy load series HB | -25 | 90 | 2.7 | ||
40.90 € | 1 | 5 Days | 135 | 110 | 150 | 50 | 800 | 200 | - | - | HB (LP/BP) | 105 | - | 80 | - | - | 11 | - | - | Polyamide | none | welded | White | - | - | - | - | - | Heavy load series HB | -25 | 90 | 3.1 | ||
56.75 € | 1 | 5 Days | 135 | 110 | 200 | 50 | 1300 | 245 | - | - | HB (LP/BP) | 105 | - | 80 | - | - | 11 | - | - | Polyamide | none | welded | White | - | - | - | - | - | Heavy load series HB | -25 | 90 | 3.7 | ||
65.56 € | 1 | 4 Days | 135 | 110 | 250 | 50 | 1500 | 295 | - | - | HB (LP/BP) | 105 | - | 80 | - | - | 11 | - | - | Polyamide | none | welded | White | - | - | - | - | - | Heavy load series HB | -25 | 90 | 4.2 | ||
103.43 € | 1 | 5 Days | 175 | 140 | 250 | 58 | 1700 | 305 | - | - | HB (LP/BP) | 140 | - | 105 | - | - | 15 | - | - | Polyamide | none | welded | White | - | - | - | - | - | Heavy load series HB | -25 | 90 | 6.6 | ||
156.93 € | 1 | 5 Days | 175 | 140 | 300 | 60 | 2000 | 355 | - | - | HB (LP/BP) | 140 | - | 105 | - | - | 15 | - | - | Polyamide | none | welded | White | - | - | - | - | - | Heavy load series HB | -25 | 90 | 7.6 | ||
13.72 € | 1 | 4 Days | 100 | 100 | 65 | 50 | 500 | 95 | - | Ball-bearing | HN (501/502) | 80 | Painted steel | 80 | - | Painted black | 11 | - | 1 | Polyamide | none | - | Black | crowned | 3 | 62 | 12 | 55 | - | - | - | 0.774 | ||
13.37 € | 1 | 5 Days | 135 | 110 | 125 | 38 | 300 | 155 | - | Roller bearing | IL (LCW/BCW) | 105 | Steel galvanized | 105 | Sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | cylindrical | - | - | - | - | Standard housing IL | - | - | 0.9 | ||
5.03 € | 1 | 5 Days | 100 | 80 | 80 | 33 | 150 | 100 | - | Bearing | IL (LCW/BCW) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 9 | 2 | 1 | - | none | - | - | - | 2 | - | 8.1 | 43 | Standard housing IL | - | - | 0.37 | ||
5.85 € | 1 | 4 Days | 100 | 80 | 80 | 33 | 150 | 100 | - | Roller bearing | IL (LCW/BCW) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | crowned | - | - | - | - | Standard housing IL | - | - | 0.45 | ||
6.25 € | 1 | 4 Days | 100 | 80 | 100 | 35 | 200 | 125 | 36 | Bearing | IL (LCW/BCW) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 9 | 2.5 | 1 | - | none | - | - | - | 2.5 | - | 8.1 | 43 | Standard housing IL | - | - | 0.43 | ||
7.00 € | 1 | 4 Days | 100 | 80 | 100 | 35 | 200 | 125 | - | Roller bearing | IL (LCW/BCW) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | crowned | - | - | - | - | Standard housing IL | - | - | 0.5 | ||
9.96 € | 1 | 5 Days | 100 | 80 | 125 | 36 | 200 | 155 | - | Bearing | IL (LCW/BCW) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 9 | 3 | 1 | - | none | - | - | - | 3 | - | 8.1 | 53 | Standard housing IL | - | - | 0.689 | ||
11.15 € | 1 | 4 Days | 100 | 80 | 125 | 36 | 200 | 155 | - | Roller bearing | IL (LCW/BCW) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | crowned | - | - | - | - | Standard housing IL | - | - | 0.85 | ||
15.79 € | 1 | 4 Days | 135 | 114 | 150 | 40 | 300 | 185 | - | Bearing | IL (LCW/BCW) | 105 | Steel galvanized | 80 | Heavy sheet steel housing, galvanized | galvanized | 11 | 3 | 1 | - | none | - | - | - | 3 | - | 12.1 | 63 | Standard housing IL | - | - | 1.4 | ||
14.54 € | 1 | 4 Days | 135 | 114 | 150 | 40 | 300 | 185 | - | Roller bearing | IL (LCW/BCW) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | crowned | - | - | - | - | Standard housing IL | - | - | 1.35 | ||
18.22 € | 1 | 4 Days | 135 | 114 | 200 | 48 | 350 | 235 | - | Bearing | IL (LCW/BCW) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 11 | 3 | 1 | - | none | - | - | - | 3 | - | 12.1 | 63 | Standard housing IL | - | - | 1.8 | ||
21.68 € | 1 | 4 Days | 135 | 114 | 200 | 48 | 350 | 235 | - | Roller bearing | IL (LCW/BCW) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | crowned | - | - | - | - | Standard housing IL | - | - | 1.8 | ||
13.29 € | 1 | 5 Days | 100 | 80 | 80 | 35 | 150 | 100 | - | Roller bearing | IL (LCW/BCW) | 80 | - | 60 | - | - | 9 | - | - | Polyamide | electrically conductive | - | Black | - | - | - | - | - | Standard housing IL | -20 | 90 | 0.43 | ||
19.08 € | 1 | 5 Days | 100 | 80 | 100 | 35 | 150 | 125 | - | Roller bearing | IL (LCW/BCW) | 80 | - | 60 | - | - | 9 | - | - | Polyamide | electrically conductive | - | Black | - | - | - | - | - | Standard housing IL | -20 | 90 | 0.52 | ||
25.10 € | 1 | 5 Days | 100 | 80 | 125 | 35 | 200 | 155 | - | Roller bearing | IL (LCW/BCW) | 80 | - | 60 | - | - | 9 | - | - | Polyamide | electrically conductive | - | Black | - | - | - | - | - | Standard housing IL | -20 | 90 | 0.75 | ||
58.68 € | 1 | 5 Days | 135 | 110 | 150 | 45 | 350 | 185 | - | Ball-bearing | IL (LCW/BCW) | 105 | - | 80 | - | - | 11 | - | - | Polyamide | electrically conductive | - | Black | - | - | - | - | - | Standard housing IL | -20 | 90 | 1.7 | ||
79.64 € | 1 | 5 Days | 135 | 114 | 200 | 50 | 350 | 235 | - | Ball-bearing | IL (LCW/BCW) | 105 | - | 80 | - | - | 11 | - | 1 | Polyamide | electrically conductive | - | Black | - | - | - | - | - | Standard housing IL | -20 | 90 | 2.26 | ||
10.73 € | 1 | 5 Days | 102 | 90 | 80 | 35 | 200 | 108 | - | Ball-bearing | IM (LU/BU) | 105 | Steel galvanized | 60 | Medium weight, pressed housing, galvanized | galvanized | 8.5 | 3.5 | 1 | Polyamide | none | drawn | White | - | 3.5 | - | 8 | 43 | Medium weight housing IM | -25 | 90 | 0.65 | ||
21.59 € | 1 | 5 Days | 105 | 80 | 80 | 35 | 200 | 108 | - | Ball-bearing | IM (LU/BU) | 80 | - | 60 | - | galvanized | 8.5 | - | - | Polyamide | electrically conductive | - | Anthracite | - | - | - | - | - | Medium weight housing IM | -25 | 90 | 0.7 | ||
12.08 € | 1 | 4 Days | 102 | 90 | 100 | 35 | 300 | 128 | - | Ball-bearing | IM (LU/BU) | 80 | Steel galvanized | 60 | Medium weight, pressed housing, galvanized | galvanized | 8.5 | 3.5 | 1 | Polyamide | none | drawn | White | - | 3.5 | - | 8 | 43 | Medium weight housing IM | -25 | 90 | 0.8 | ||
25.70 € | 1 | 5 Days | 105 | 80 | 100 | 35 | 300 | 128 | - | Ball-bearing | IM (LU/BU) | 80 | - | 60 | - | galvanized | 8.5 | - | - | Polyamide | electrically conductive | - | Anthracite | - | - | - | - | - | Medium weight housing IM | -25 | 90 | 0.85 | ||
16.16 € | 1 | 5 Days | 102 | 90 | 125 | 40 | 350 | 155 | - | Ball-bearing | IM (LU/BU) | 80 | Steel galvanized | 60 | Medium weight, pressed housing, galvanized | galvanized | 8.5 | 3.5 | 1 | Polyamide | none | drawn | White | - | 3.5 | - | 10 | 53 | Medium weight housing IM | -25 | 90 | 1.1 | ||
41.62 € | 1 | 5 Days | 105 | 80 | 125 | 40 | 400 | 128 | - | Ball-bearing | IM (LU/BU) | 80 | - | 60 | - | galvanized | 8.5 | - | - | Polyamide | electrically conductive | - | Anthracite | - | - | - | - | - | Medium weight housing IM | -25 | 90 | 1.15 | ||
29.55 € | 1 | 5 Days | 135 | 114 | 150 | 45 | 500 | 195 | - | Ball-bearing | IM (LU/BU) | 105 | Steel galvanized | 80 | Medium weight, pressed housing, galvanized | galvanized | 10.5 | 4 | 1 | Polyamide | none | drawn | White | - | 4 | - | 12 | 63 | Medium weight housing IM | -25 | 90 | 1.8 | ||
62.62 € | 1 | 5 Days | 135 | 114 | 150 | 45 | 500 | 195 | - | Ball-bearing | IM (LU/BU) | 105 | - | 80 | - | galvanized | 10.5 | - | - | Polyamide | electrically conductive | - | Anthracite | - | - | - | - | - | Medium weight housing IM | -25 | 90 | 1.85 | ||
31.05 € | 1 | 4 Days | 135 | 114 | 200 | 50 | 500 | 245 | - | Ball-bearing | IM (LU/BU) | 105 | Steel galvanized | 80 | Medium weight, pressed housing, galvanized | galvanized | 10.5 | 4 | 1 | Polyamide | none | drawn | White | - | 4 | - | 12 | 63 | Medium weight housing IM | -25 | 90 | 2.6 | ||
83.87 € | 1 | 5 Days | 135 | 114 | 200 | 50 | 500 | 245 | - | Ball-bearing | IM (LU/BU) | 105 | - | 80 | - | galvanized | 10.5 | - | - | Polyamide | electrically conductive | - | Anthracite | - | - | - | - | - | Medium weight housing IM | -25 | 90 | 2.65 | ||
55.21 € | 1 | 5 Days | 135 | 110 | 250 | 60 | 700 | 297 | - | Ball-bearing | IM (LU/BU) | 105 | Steel galvanized | 80 | Medium weight, pressed housing, galvanized | galvanized | 10.5 | 5 | 1 | Polyamide | none | drawn | White | - | 5 | - | 12 | 77 | Medium weight housing IM | -25 | 90 | 3.95 | ||
55.80 € | 1 | 5 Days | 230 | 128 | 250 | 58 | 450 | 290 | - | Bearing | - | 190 | Steel galvanized | 75 | Sheet steel housing, galvanized | galvanized | 14.5 | 4 | 1 | - | none | drawn | - | - | 4 | 165 | 12 | 80 | Standard housing IL | - | - | 3.75 | ||
10.48 € | 1 | 4 Days | 95 | 54 | 58 | 25 | 75 | 76 | - | Roller bearing | IL (LCW/BCW) | 71 | Steel galvanized | 24 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | Black | cylindrical | - | - | - | - | Standard housing IL | - | - | 0.182 | ||
6.92 € | 1 | 4 Days | 95 | 54 | 65 | 30 | 100 | 87 | - | Roller bearing | IL (LCW/BCW) | 71 | Steel galvanized | 24 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | Black | crowned | - | - | - | - | Standard housing IL | - | - | 0.268 | ||
13.64 € | 1 | 4 Days | 135 | 110 | 100 | 38 | 200 | 128 | - | Roller bearing | IL (LCW/BCW) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | cylindrical | - | - | - | - | Standard housing IL | - | - | 0.55 | ||
22.91 € | 1 | 5 Days | 135 | 110 | 175 | 48 | 350 | 208 | - | Roller bearing | IL (LCW/BCW) | 105 | Steel galvanized | 105 | Lightweight, pressed sheet steel housing, galvanized | galvanized | - | - | 1 | Polyamide | - | - | White | cylindrical | - | - | - | - | Standard housing IL | -20 | 90 | 1.52 |
Loading...
Basic information
| Rolls and case type | Fixed bracket | Mounting type | Mounting plate | Tread material | Polyamide |
|---|
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Wheel bearing
- Ball-bearing
- Bearing
- Roller bearing
-
Housing Series Type
-
Bolt Hole Length(mm)
-
Housing material RR
- Painted steel
- Steel galvanized
-
Bolt hole width(mm)
-
Material Description Housing
- Heavy sheet steel housing, galvanized
- Lightweight, pressed sheet steel housing, galvanized
- Medium weight, pressed housing, galvanized
- Sheet steel housing, galvanized
-
Surface coating
- Painted black
- galvanized
-
Screw hole(mm)
-
panel thickness(mm)
-
Number of wheels [piece]
- 1
-
Rim material
- Polyamide
-
electrically conductive
- electrically conductive
- none
-
Housing design
- drawn
- welded
-
Tread color
- Anthracite
- Black
- White
-
Tread type
- crowned
- cylindrical
-
fork strength(mm)
- 2
- 2.5
- 3
- 3.5
- 4
- 5
-
Overall height housing (to center axis)(mm)
-
Axle bore housing(mm)
- 8
- 8.1
- 10
- 12
- 12.1
-
Light width(mm)
-
Housing classification
- Heavy load series HB
- Medium weight housing IM
- Standard housing IL
-
Min. temperature resistance(° C)
- -25
- -20
-
Max. temperature resistance(° C)
- 90
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
