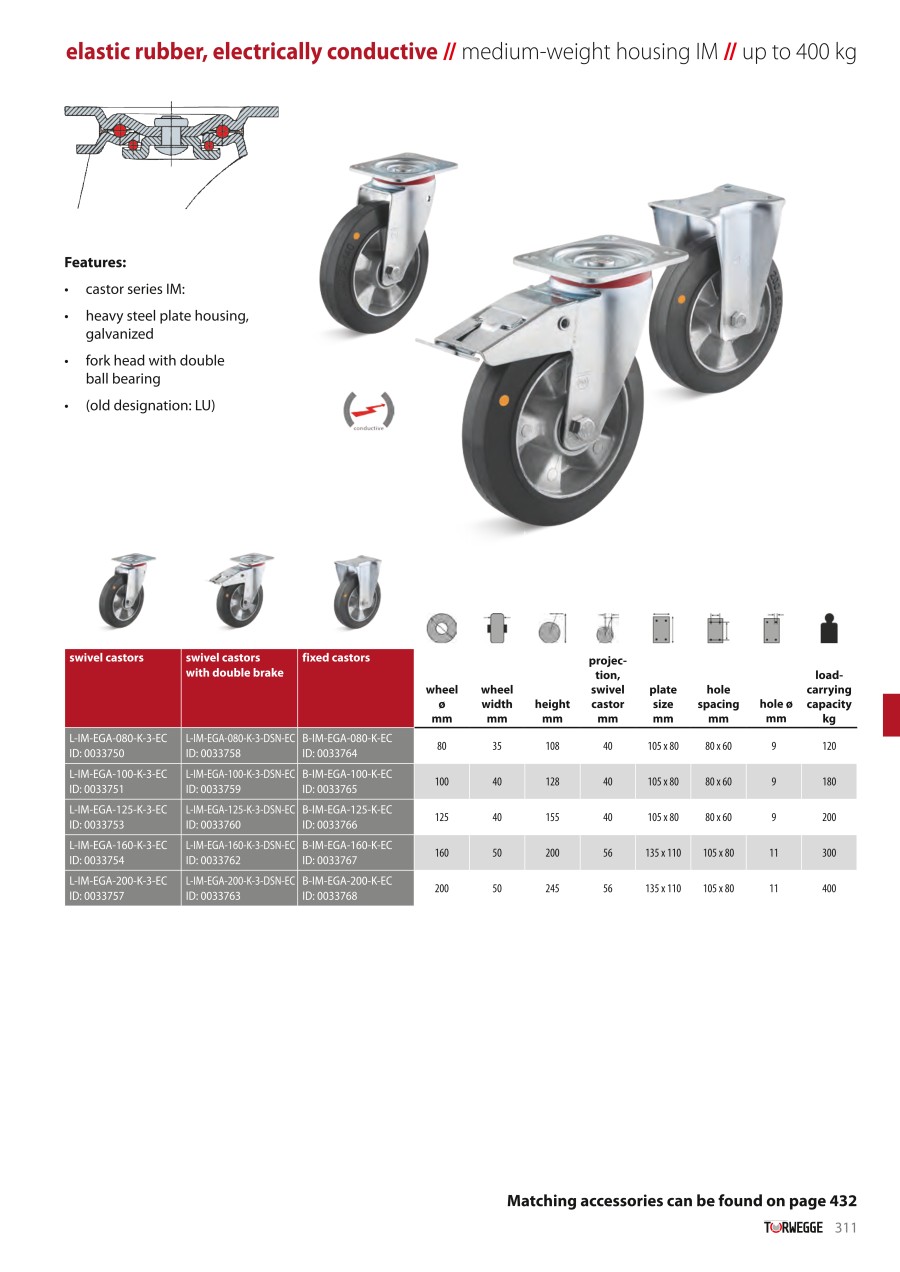

Fixed Castors with elastic wheel
・Rolls and case type: Fixed bracket
・Housing classification: Medium weight housing IM
・Rim material: Aluminum
・Tread material: Elastic rubber, electrically conductive
・Tread color: Black
・Wheel diameter(mm): 100-200
・Wheel width(mm): 40-50
・Load capacity dynamic(kg): 180-400
[Features]
・castor series IM:
・heavy steel plate housing, galvanized
・fork head with double ball bearing
・(old designation: LU)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| B-IM-EGA-100-K-EC |
| B-IM-EGA-125-K-EC |
| B-IM-EGA-160-K-EC |
| B-IM-EGA-200-K-EC |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Bolt Hole Length (mm) | Housing material RR | Bolt hole width (mm) | Screw hole (mm) | Number of wheels [piece] | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
33.45 € | 1 | 5 Days | 102 | 90 | 100 | 40 | 180 | 128 | 80 | Steel galvanized | 60 | 9 | 1 | 0.972 | ||
45.18 € | 1 | 5 Days | 102 | 90 | 125 | 40 | 200 | 155 | 80 | - | 60 | 9 | - | 1.5 | ||
60.99 € | 1 | 4 Days | 135 | 114 | 160 | 50 | 300 | 200 | 105 | - | 80 | 11 | - | 2.24 | ||
76.65 € | 1 | 5 Days | 135 | 114 | 200 | 50 | 400 | 245 | 105 | - | 80 | 11 | - | 3.1 |
Loading...
Basic information
| Rolls and case type | Fixed bracket | Mounting type | Mounting plate | Wheel bearing | Ball-bearing |
|---|---|---|---|---|---|
| Housing Series Type | IM (LU/BU) | Rim material | Aluminum | Tread material | Elastic rubber, electrically conductive |
| electrically conductive | electrically conductive | Tread color | Black | Tread type | cylindrical |
| Housing classification | Medium weight housing IM | Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 80 |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Bolt Hole Length(mm)
-
Housing material RR
- Steel galvanized
-
Bolt hole width(mm)
-
Screw hole(mm)
-
Number of wheels [piece]
- 1
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
