Microswitch series GPT

[Specifications]
・Dielectric strength: 1,000 VAC 50/60 Hz for 1 minute
・Insulation resistance: 100 MΩ min. at 500 VDC
・Initial contact resistance: 15 mΩ max.

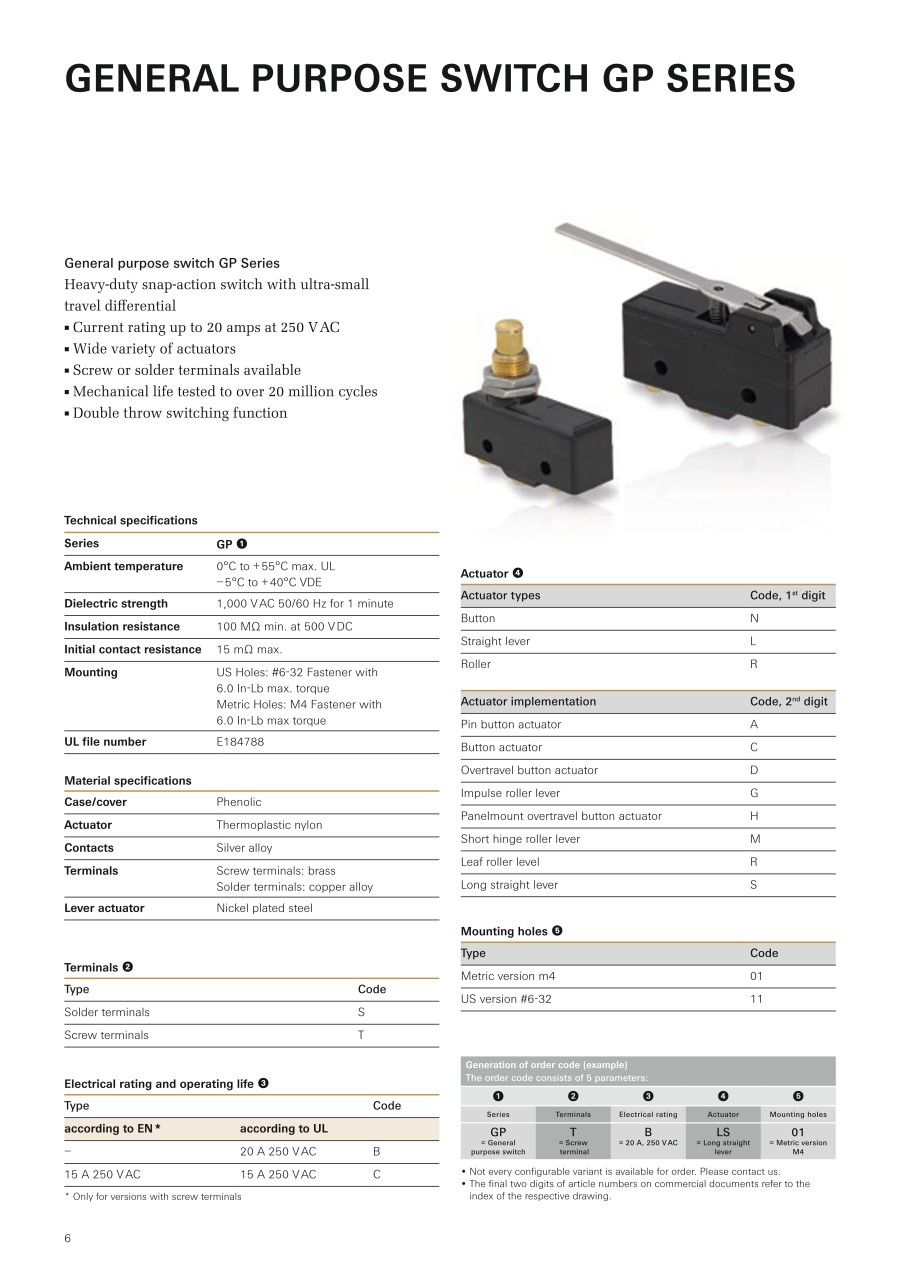

General purpose switch GP Series Heavy-duty snap-action switch with ultra-small travel differential
・Current rating up to 20 amps at 250 VAC
・Wide variety of actuators
・Screw or solder terminals available
・Mechanical life tested to over 20 million cycles
・Double throw switching function
