  • Horizontal Hold Down Clamps 227

    Horizontal Hold Down Clamps 227

    Click image to view enlarged image

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

    Part number list

    Number of items

    Base mounting style

    Max. holding capacity

    (N)

    Body Material

    Height under clamp arm

    (mm)

    Clamp arm length

    (mm)

    Clamp arm style

    Minimum order quantity
    Flange Base
    2220
    Steel
    31.8
    67.3
    U-Bar
    1 pieces
    Flange Base
    2220
    Steel
    31.8
    60.7
    Open U-Bar
    1 pieces
    Straight Base
    2220
    Steel
    36.8
    67.3
    U-Bar
    1 pieces
    Straight Base
    2220
    Steel
    36.8
    60.7
    Open U-Bar
    1 pieces
    Flange Base
    2670
    Stainless Steel
    32.5
    67.6
    U-Bar
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    38.29 €
    ( 45.57 € )
    Stock item: 1 working dayAvailable for same-day shipping
    46.34 €
    ( 55.14 € )
    90 working days
    38.29 €
    ( 45.57 € )
    20 working days
    46.34 €
    ( 55.14 € )
    60 working days
    72.48 €
    ( 86.25 € )
    5 working days

    More Information

    Basic information

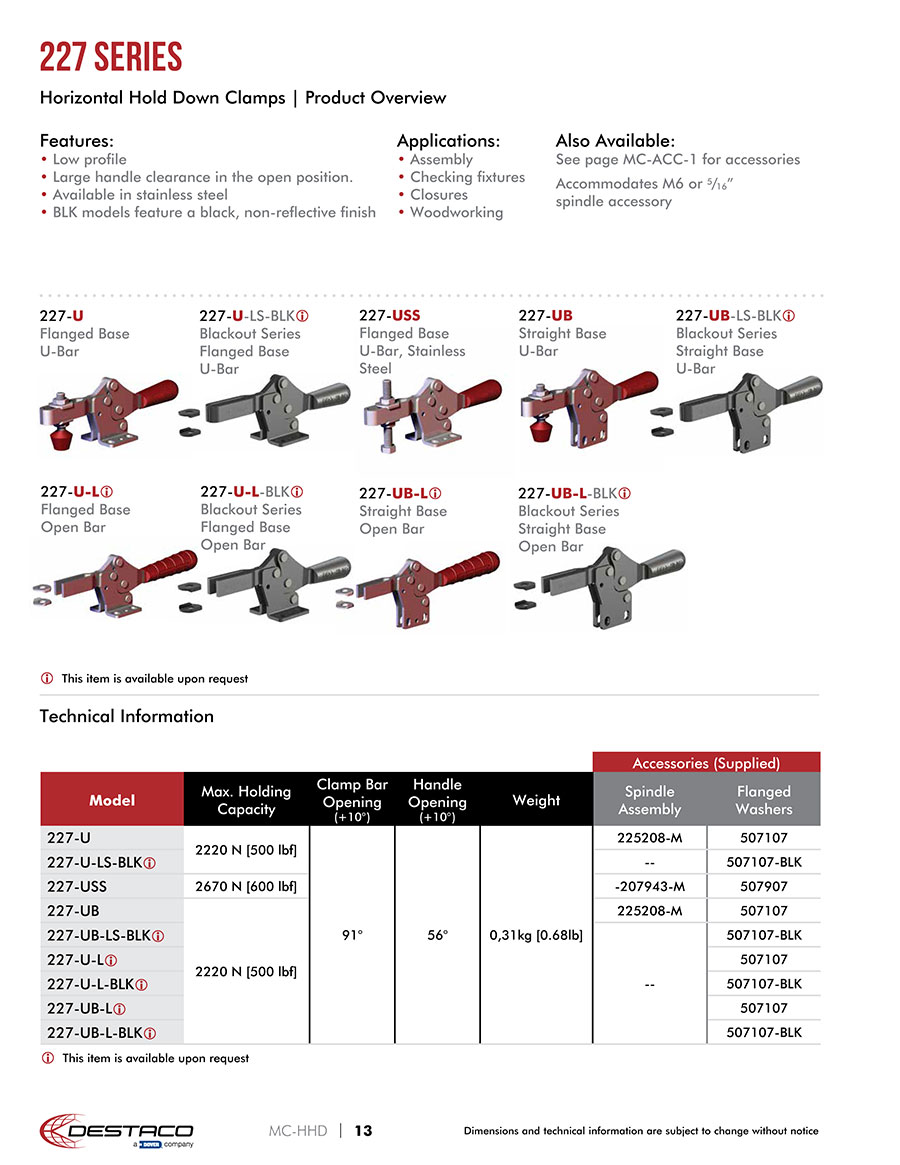

    Destaco’s 227 Series horizontal hold down clamps feature a low profile design, availability in stainless steel models, and large handle clearance in the open position. These clamps are used in assembly, fixture checking, woodworking, and closures.
