One-way flow control valve, VFOF Series
Click on this image to zoom in.
Click on this image to zoom in.
[Specifications]
・Adjusting element: Internal hexagon
Flat, rotatable shut-off valve with possible supply/exhaust air flow control combination.
[Features]
・Functional combination of one-way flow control valve and piloted check valve
・High flow rate
・Can be rotated horizontally through 360° in assembled state
・Compact and can be operated from the side
・Compressed air as per ISO 8573-1:2010 [7:4:4]
・Adjusting element: Internal hexagon
Flat, rotatable shut-off valve with possible supply/exhaust air flow control combination.
[Features]
・Functional combination of one-way flow control valve and piloted check valve
・High flow rate
・Can be rotated horizontally through 360° in assembled state
・Compact and can be operated from the side
・Compressed air as per ISO 8573-1:2010 [7:4:4]

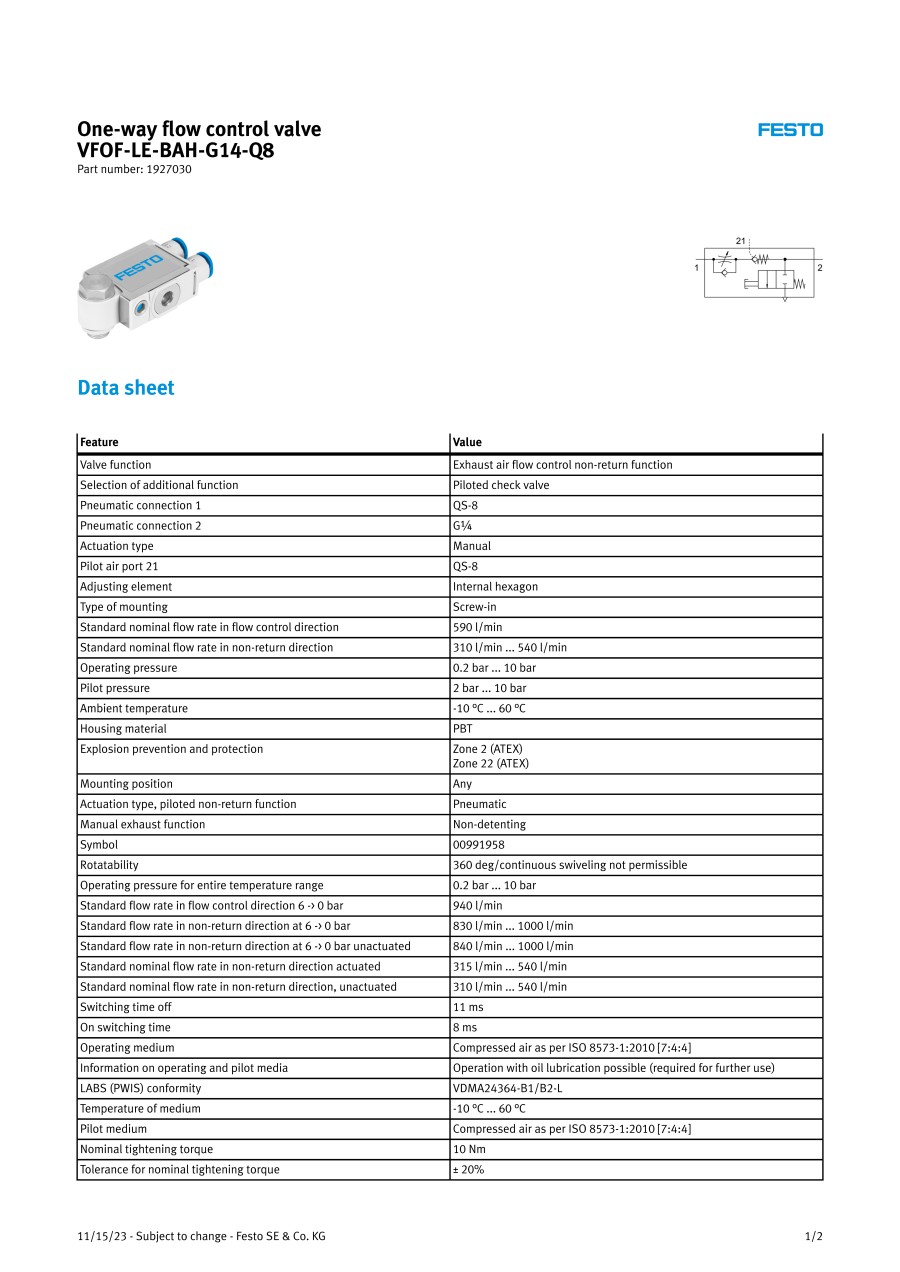

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
VFOF-LE-BAH-G18-Q6
- Product data
- CAD data not available
Basic information
| Housing material | PBT | Seals material | NBR | Material of screws | Brass |
|---|---|---|---|---|---|
| Hollow bolt material | Wrought aluminum alloy | Adjusting element | Internal hexagon | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | G1/8 | Pilot air port 21 | QS-6 | Min. Operating pressure(bar) | 0.2 |
| Max. Operating pressure(bar) | 10 | Min. Pilot pressure(bar) | 2 | Max. Pilot pressure(bar) | 10 |
| Min. Ambient temperature(°C) | -10 | Max. Ambient temperature(°C) | 60 | Min. Temperature of medium(°C) | -10 |
| Max. Temperature of medium(°C) | 60 | Standard nominal flow rate in flow control direction(l/min) | 240 | Standard nominal flow rate in non-return direction(l/min) | 120-220 |
| Standard flow rate in flow control direction 6 -> 0 bar(l/min) | 420 | Standard flow rate in non-return direction at 6 -> 0 bar(l/min) | 400-460 | Nominal tightening torque(Nm) | 3 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Manufacturer part # | 8001459 |
| Weight(g) | 28.6 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
