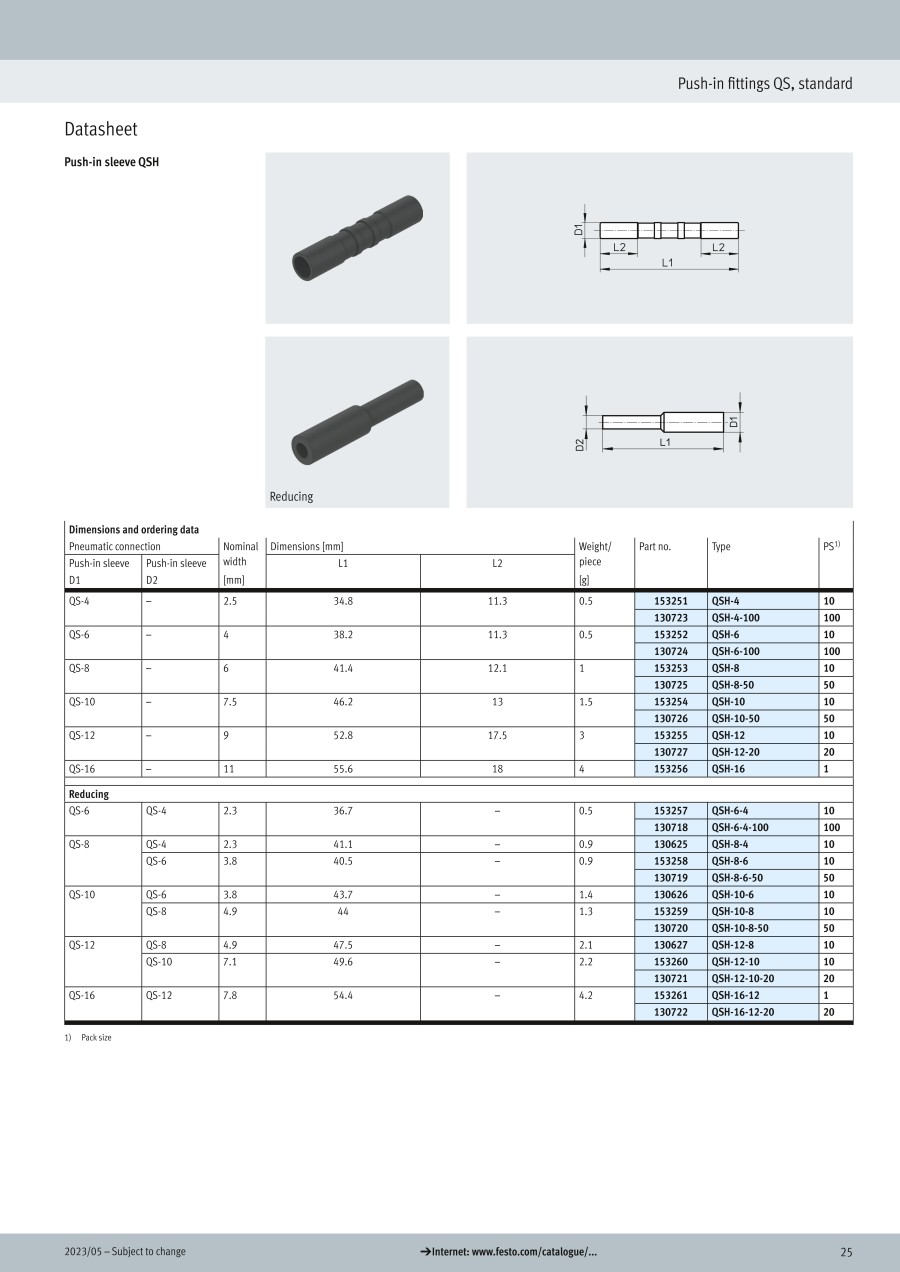

Push-in sleeve, QSH Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| QSH-4 |
| QSH-4-100 |
| QSH-6 |
| QSH-6-4 |
| QSH-6-4-100 |
| QSH-8 |
| QSH-8-4 |
| QSH-8-6 |
| QSH-10 |
| QSH-10-6 |
| QSH-10-8 |
| QSH-10-8-50 |
| QSH-10-50 |
| QSH-12 |
| QSH-12-8 |
| QSH-12-10 |
| QSH-12-10-20 |
| QSH-16 |
| QSH-16-12 |
| QSH-16-12-20 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal width (mm) | Pack size | Pneumatic connection 1 | Pneumatic connection 2 | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1.58 € | 10 | 3 Days | 2.5 | 10 | Push-in sleeve QS-4 | Push-in sleeve QS-4 | 153251 | 0.5 | |||
1.63 € | 1 | Available | 10 Days | 2.5 | 100 | Push-in sleeve QS-4 | Push-in sleeve QS-4 | 130723 | 0.5 | ||
1.80 € | 10 | 3 Days | 4 | 10 | Push-in sleeve QS-6 | Push-in sleeve QS-6 | 153252 | 0.5 | |||
2.08 € | 10 | 3 Days | 2.3 | 10 | Push-in sleeve QS-6 | Push-in sleeve QS-4 | 153257 | 0.5 | |||
2.00 € | 1 | Available | 10 Days | 2.3 | 100 | Push-in sleeve QS-6 | Push-in sleeve QS-4 | 130718 | 0.5 | ||
2.02 € | 10 | 3 Days | 6 | 10 | Push-in sleeve QS-8 | Push-in sleeve QS-8 | 153253 | 1 | |||
2.63 € | 10 | 4 Days | 2.3 | 10 | Push-in sleeve QS-8 | Push-in sleeve QS-4 | 130625 | 0.9 | |||
2.29 € | 10 | 3 Days | 3.8 | 10 | Push-in sleeve QS-8 | Push-in sleeve QS-6 | 153258 | 0.9 | |||
2.29 € | 10 | 3 Days | 7.5 | 10 | Push-in sleeve QS-10 | Push-in sleeve QS-10 | 153254 | 1.5 | |||
2.82 € | 10 | 3 Days | 3.8 | 10 | Push-in sleeve QS-10 | Push-in sleeve QS-6 | 130626 | 1.4 | |||
2.51 € | 10 | 3 Days | 4.9 | 10 | Push-in sleeve QS-10 | Push-in sleeve QS-8 | 153259 | 1.3 | |||
2.52 € | 1 | Available | 3 Days | 4.9 | 50 | Push-in sleeve QS-10 | Push-in sleeve QS-8 | 130720 | 1.3 | ||
2.29 € | 1 | Available | 3 Days | 7.5 | 50 | Push-in sleeve QS-10 | Push-in sleeve QS-10 | 130726 | 1.5 | ||
2.92 € | 10 | 3 Days | 9 | 10 | Push-in sleeve QS-12 | Push-in sleeve QS-12 | 153255 | 3 | |||
3.63 € | 10 | 4 Days | 4.9 | 10 | Push-in sleeve QS-12 | Push-in sleeve QS-8 | 130627 | 2.1 | |||
2.77 € | 10 | 3 Days | 7.1 | 10 | Push-in sleeve QS-12 | Push-in sleeve QS-10 | 153260 | 2.2 | |||
2.91 € | 1 | Available | 3 Days | 7.1 | 20 | Push-in sleeve QS-12 | Push-in sleeve QS-10 | 130721 | 2.2 | ||
3.75 € | 1 | 3 Days | 11 | 1 | Push-in sleeve QS-16 | Push-in sleeve QS-16 | 153256 | 4 | |||
2.83 € | 1 | 3 Days | 7.8 | 1 | Push-in sleeve QS-16 | Push-in sleeve QS-12 | 153261 | 4.2 | |||
2.84 € | 1 | Available | 3 Days | 7.8 | 20 | Push-in sleeve QS-16 | Push-in sleeve QS-12 | 130722 | 4.2 |
Loading...
Basic information
| Housing material | PBT | Min. Operating pressure(bar) | -0.95 | Max. Operating pressure(bar) | 6 |
|---|---|---|---|---|---|
| Min. Temperature-dependent operating pressure(bar) | -0.95 | Max. Temperature-dependent operating pressure(bar) | 14 | Min. Ambient temperature(°C) | -10 |
| Max. Ambient temperature(°C) | 80 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-], Water as per manufacturer's declaration at www.festo.com | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Configure
Basic Attributes
-
Nominal width(mm)
-
Pack size
- 1
- 10
- 20
- 50
- 100
-
Pneumatic connection 1
-
Pneumatic connection 2
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
