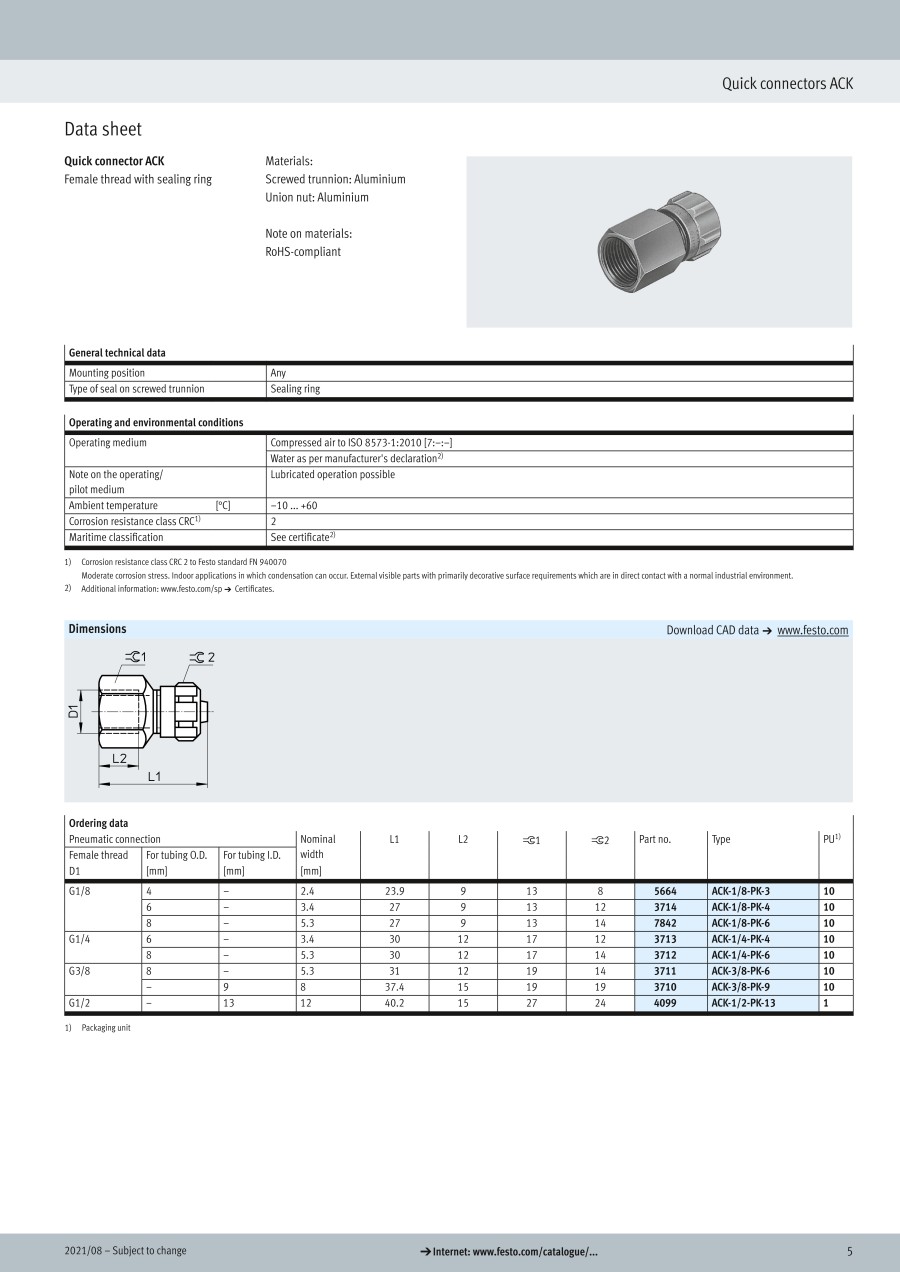

Quick connector, ACK Series
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| ACK-1/2-PK-13 |
| ACK-1/4-PK-4 |
| ACK-1/4-PK-6 |
| ACK-1/8-PK-3 |
| ACK-1/8-PK-4 |
| ACK-1/8-PK-6 |
| ACK-3/8-PK-6 |
| ACK-3/8-PK-9 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal width (mm) | Pneumatic connection 1 | Pneumatic connection 2 | Manufacturer part # | |
|---|---|---|---|---|---|---|---|---|---|
12.46 € | 1 | 4 Days | 12 | Internal thread G1/2 | for pneumatic tubing inside diameter 13 mm | 4099 | |||
4.43 € | 10 | 4 Days | 3.4 | Internal thread G1/4 | for pneumatic tubing outside diameter 6 mm | 3713 | |||
4.43 € | 10 | 4 Days | 5.3 | Internal thread G1/4 | for pneumatic tubing outside diameter 8 mm | 3712 | |||
3.89 € | 10 | 4 Days | 2.4 | Internal thread G1/8 | for pneumatic tubing outside diameter 4 mm | 5664 | |||
3.89 € | 10 | 10 Days | 3.4 | Internal thread G1/8 | for pneumatic tubing outside diameter 6 mm | 3714 | |||
4.06 € | 10 | 4 Days | 5.3 | Internal thread G1/8 | for pneumatic tubing outside diameter 8 mm | 7842 | |||
5.38 € | 10 | 4 Days | 5.3 | Internal thread G3/8 | for pneumatic tubing outside diameter 8 mm | 3711 | |||
6.46 € | 10 | 4 Days | 8 | Internal thread G3/8 | for pneumatic tubing inside diameter 9 mm | 3710 |
Loading...
Basic information
| Type of seal on screwed trunnion | Sealing ring | Housing material | Aluminum | Min. Ambient temperature(°C) | -10 |
|---|---|---|---|---|---|
| Max. Ambient temperature(°C) | 60 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-], Water as per manufacturer's declaration at www.festo.com | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Configure
Basic Attributes
-
Nominal width(mm)
-
Pneumatic connection 1
-
Pneumatic connection 2
Filter by standard shipping days
-
- All
- 4 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
