Chemical Liquid Valve, Compact, Manual Type, Integrated Fitting, LVDH-F/FN Series, Tube Extension

Chemical Liquid Valve, Compact, Manual Type, Integrated Fitting, LVDH-F/FN Series, Tube Extension

Caution

  • The product images are representative only. Please refer to the manufacturer's catalog for shape details.

Part number:

Still undefined. 18 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    LVDH20-V04-F
    LVDH20-V06-F
    LVDH20-Z07-F
    LVDH20-Z07-FN
    LVDH30-T11-F
    LVDH30-V06-F
    LVDH30-V08-F
    LVDH30-V10-F
    LVDH30-Z08-F
    LVDH30-Z11-F
    LVDH30-Z11-FN
    LVDH40-T13-F
    LVDH40-V10-FN
    LVDH40-V12-F
    LVDH40-V13-F
    LVDH40-V13-FN
    LVDH40-Z13-F
    LVDH40-Z13-FN

    Tube Diameter

    Orifice Diameter

    (mm)

    B port size

    Specifications

    Seal/buffer material

    		Minimum order quantity
    Ø4
    -
    Same size as A/B port
    Insert bushing
    FKM
    1 pieces
    Ø6
    -
    Same size as A/B port
    Insert bushing
    FKM
    1 pieces
    Ø6.35
    -
    -
    Flare
    FKM
    1 pieces
    Ø6.35
    -
    -
    Flare
    EPDM
    1 pieces
    Ø9.52
    8
    -
    Tube extensions
    FKM
    1 pieces
    Ø6
    8
    Same size as A/B port
    Insert bushing
    FKM
    1 pieces
    Ø8
    8
    Same size as A/B port
    Insert bushing
    FKM
    1 pieces
    Ø10
    8
    Same size as A/B port
    Insert bushing
    FKM
    1 pieces
    Ø8
    8
    -
    Flare
    FKM
    1 pieces
    Ø9.52
    8
    -
    Flare
    FKM
    1 pieces
    Ø9.52
    8
    -
    Flare
    EPDM
    1 pieces
    Ø12.7
    -
    -
    Tube extensions
    FKM
    1 pieces
    Ø10
    -
    Same size as A/B port
    Insert bushing
    EPDM
    1 pieces
    Ø12
    -
    Same size as A/B port
    Insert bushing
    FKM
    1 pieces
    Ø12.7
    -
    Same size as A/B port
    Insert bushing
    FKM
    1 pieces
    Ø12.7
    -
    Same size as A/B port
    Insert bushing
    EPDM
    1 pieces
    Ø12.7
    -
    -
    Flare
    FKM
    1 pieces
    Ø12.7
    -
    -
    Flare
    EPDM
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    347.65 €
    ( 413.70 € )
    84 working days
    322.10 €
    ( 383.30 € )
    84 working days
    322.10 €
    ( 383.30 € )
    84 working days
    322.10 €
    ( 383.30 € )
    84 working days
    506.47 €
    ( 602.70 € )
    84 working days
    396.73 €
    ( 472.11 € )
    84 working days
    396.73 €
    ( 472.11 € )
    84 working days
    371.18 €
    ( 441.70 € )
    84 working days
    371.18 €
    ( 441.70 € )
    84 working days
    371.18 €
    ( 441.70 € )
    84 working days
    371.18 €
    ( 441.70 € )
    84 working days
    535.50 €
    ( 637.25 € )
    84 working days
    434.05 €
    ( 516.52 € )
    84 working days
    398.68 €
    ( 474.43 € )
    84 working days
    398.68 €
    ( 474.43 € )
    84 working days
    398.68 €
    ( 474.43 € )
    84 working days
    398.68 €
    ( 474.43 € )
    84 working days
    398.68 €
    ( 474.43 € )
    84 working days
  • 1

    • More Information

    Basic information

    [Features]
    ・ Compact and space saving
    Pipe direction dimension MAX. 29% shorter than the conventional integrated fitting type LVC series
    · Guide ring prevents internal leakage
    · Diaphragm (PTFE) prevents formation of micro-bubbles
    · Prevents residual liquid
    ・ Low dust generation piston damper
    ・ Long life buffer resistant to back pressure

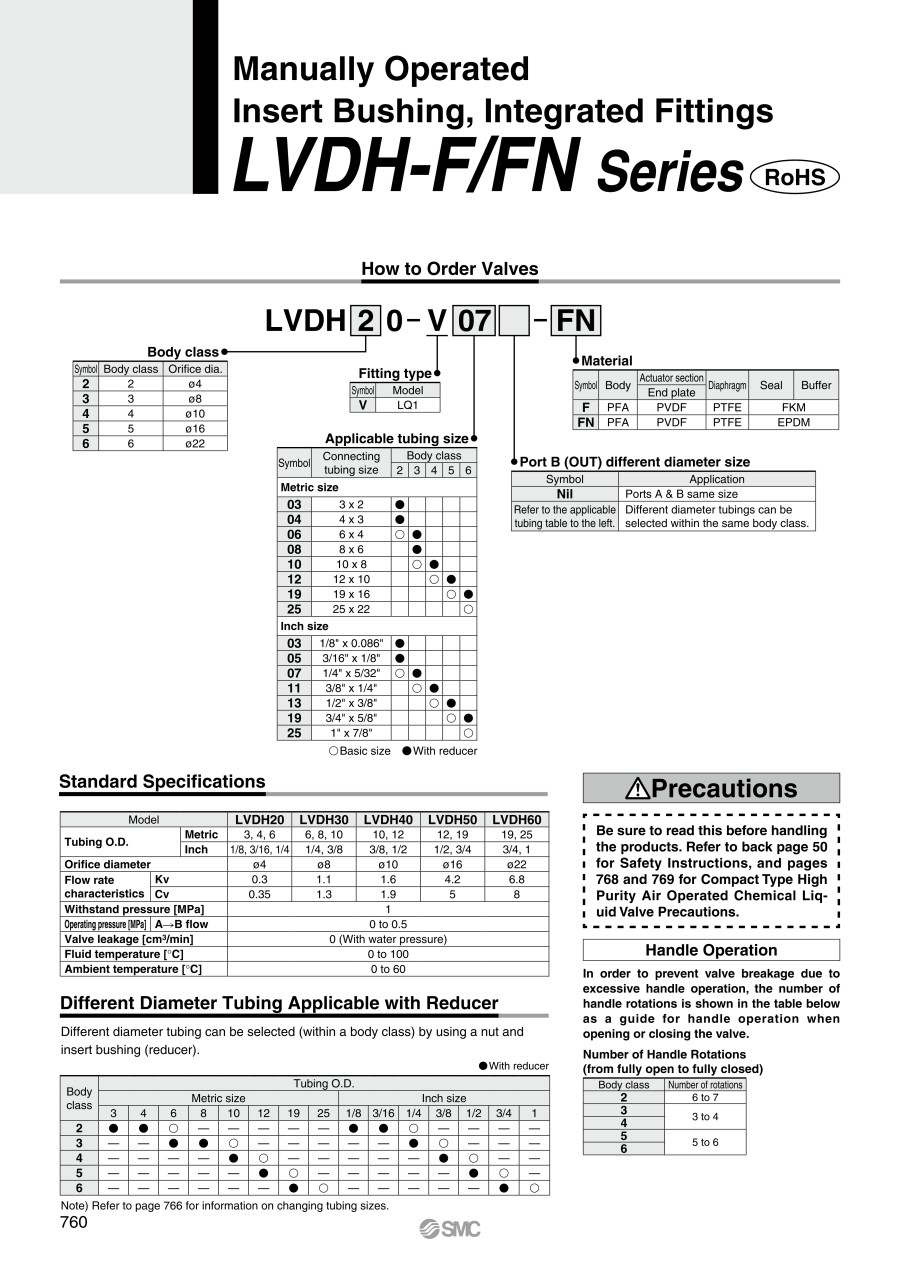

    [Please click here for the catalog]
    P. 760 Insert Bushing, Integrated Fittings
    P. 762 Flare, Integrated Fittings
    P. 764 Tube Extensions

    Caution

    • The product images are representative only. Please refer to the manufacturer's catalog for shape details.
