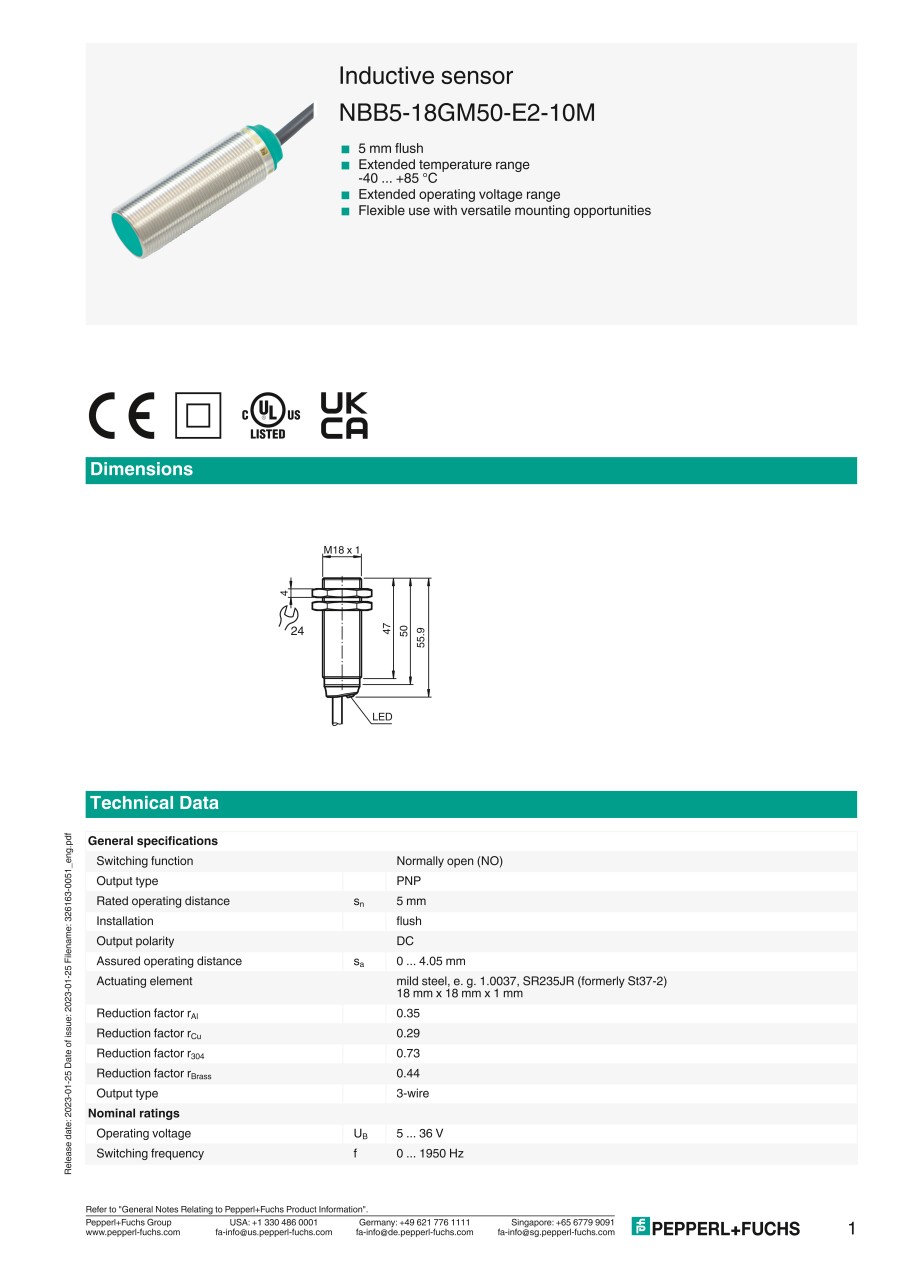

Inductive proximity switches Cylindrical type
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
NBB5-18GM50-E2-10M
- Product data
- CAD data not available
Basic information
| Detection Distance L1(mm) | 5 | Detection Head Size Dimension D(Ø) | 18 | Detection Head Size Dimension L2(mm) | 50 |
|---|---|---|---|---|---|
| Voltage type | DC | Material housing | Metal | Switching distance(mm) | 5 |
| Type of electric connection | Cable | Type of switching output | PNP | Type of switch function | Normally open (NO) |
| Construction type housing | Cylinder. screw-thread | Mechanical mounting condition for sensor | Concise |
This page is Inductive proximity switches Cylindrical type, part number NBB5-18GM50-E2-10M.
You can find the detail information about specifications and dimensions on part number NBB5-18GM50-E2-10M.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
