Locating rings / Internal diameter 101~350mm
[Specifications]
・Internal diameter(mm): 101~350
・Outer diameter(mm): 110~370
・eClass code: 23-05-17-90

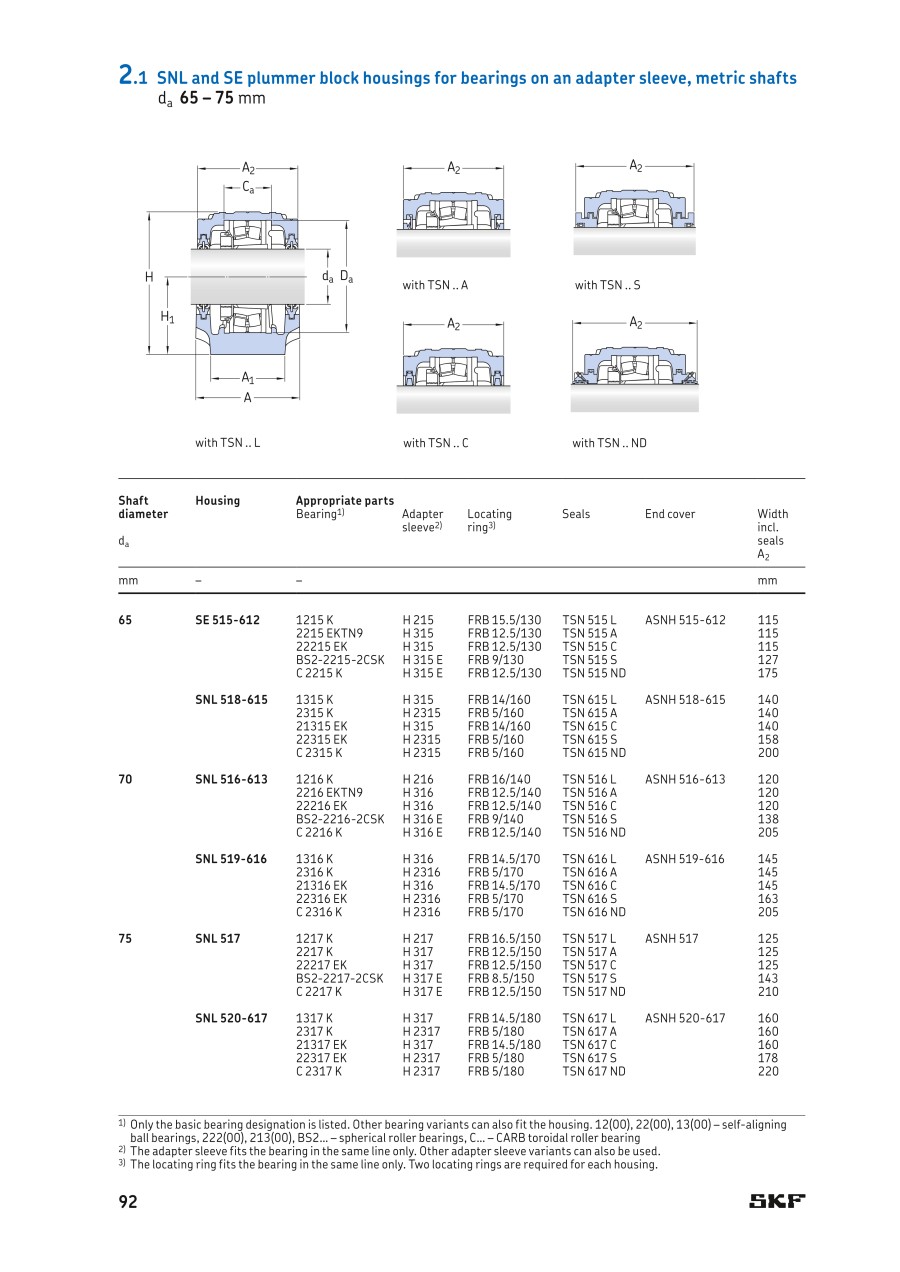

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.
・Internal diameter(mm): 101~350
・Outer diameter(mm): 110~370
・eClass code: 23-05-17-90
A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| FRB5/160 |
| FRB5/215 |
| FRB5/230 |
| FRB10/110 |
| FRB10/370 |
| FRB15.5/130 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal diameter (mm) | Outer diameter (mm) | Width (mm) | Weight (g) | GTIN/EAN | |
|---|---|---|---|---|---|---|---|---|---|
12.32 € | 1 | 17 Days | 149 | 160 | 5 | 55.0 | 7316577043290 | ||
17.18 € | 1 | 17 Days | 202 | 215 | 5 | 90.0 | 7316577661371 | ||
21.62 € | 1 | 17 Days | 215 | 230 | 5 | 110.0 | 7316570080148 | ||
7.22 € | 1 | 17 Days | 101 | 110 | 10 | 62.0 | 7316577017079 | ||
75.67 € | 1 | 17 Days | 350 | 370 | 10 | 576.0 | 7316577017246 | ||
12.35 € | 1 | 17 Days | 119 | 130 | 15.5 | 149.0 | 7316577090072 |
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
