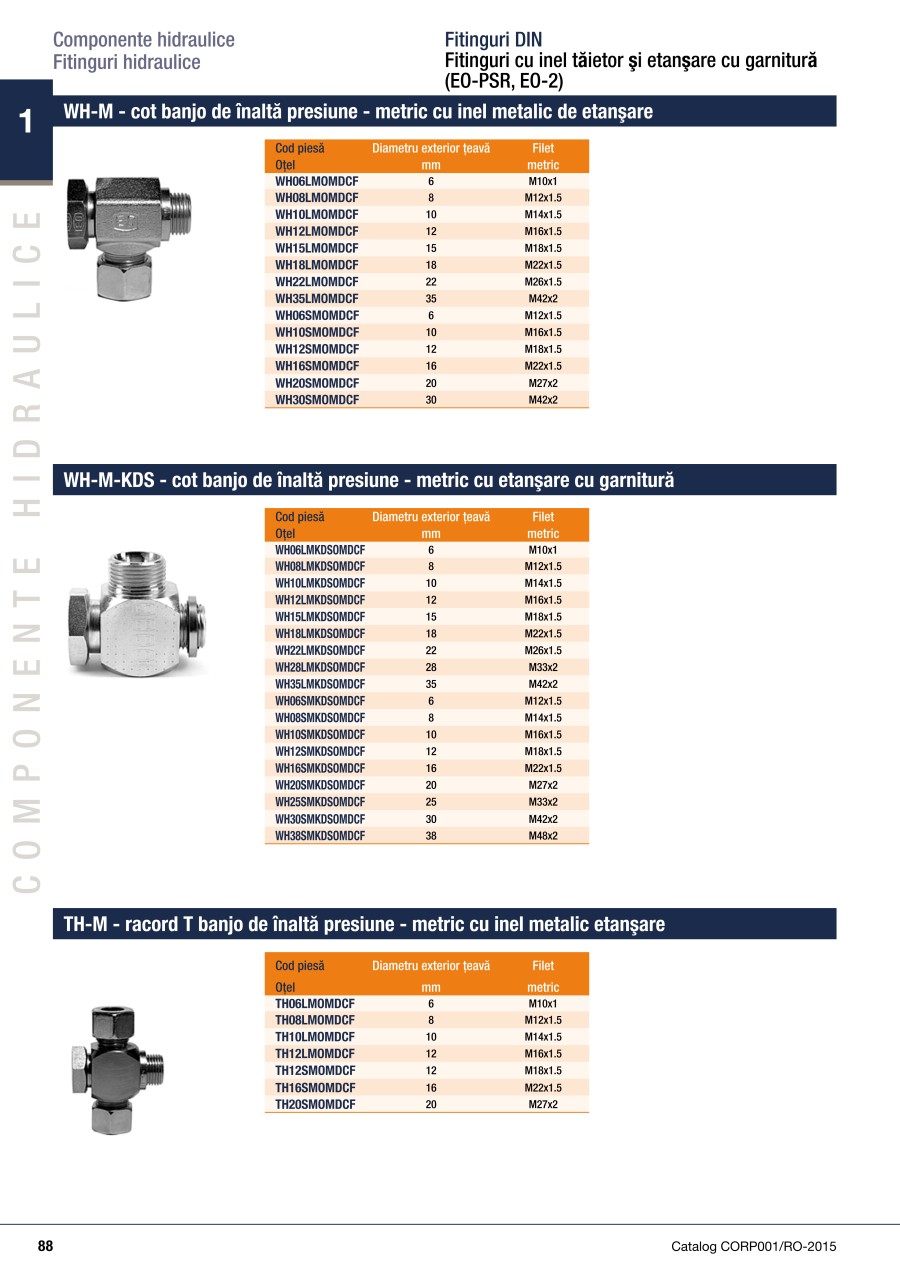

PARKER High Pressure Elbow Swivel Screw Fitting WH-M-KDS
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| WH06LMKDSOMDCF |
| WH08LMKDSOMDCF |
| WH08SMKDSOMDCF |
| WH10LMKDSCF |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | S2 (mm) | D4 | L5 | L7 | PN bar | Customs tariff weight (kg) | External pipe diameter D1 | L4 | Scope of delivery | S1 | L2 | L3 | L1 | D3 | Model series | T | L6 | S3 | D5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
41.09 € | 1 | 5 Days | 17 | 4.5 | 24 | 2.5 | 315 | 0.051 | 6 | 8 | Without nut and ring, but including all other parts, such as seals | 17 | 12 | 10.5 | 19 | 4 | L | M 10×1.0 | 27 | 14 | 14.9 | ||
- | 1 | 5 Days | 19 | 6 | 30 | 3 | 315 | 0.097 | 8 | 12 | Without nut and ring, but including all other parts, such as seals | 22 | 14.5 | 14 | 21.5 | 6 | L | M 12×1.5 | 29 | 17 | 17 | ||
45.23 € | 1 | 5 Days | 19 | 6 | 30 | 3 | 400 | 0.103 | 8 | 12 | Without nut and ring, but including all other parts, such as seals | 22 | 16.5 | 14 | 23.5 | 5 | S | M 14×1.5 | 31 | 19 | 18.9 | ||
- | 1 | 5 Days | 19 | 6 | 30 | 3 | 315 | 0.125 | 10 | 12 | Complete, with nut and ring | 22 | 15.5 | 14 | 22.5 | 8 | L | M 14×1.5 | 30 | 19 | 18.9 |
Loading...
Basic information
| Customs tariff weight unit | kg | Order code | WH-M-KDS | Surface | Cr(VI)-free |
|---|---|---|---|---|---|
| Customs tariff item number | 73079290 | Engineering material | Steel | Customs tariff weight per | 1 |
| Customs tariff country of origin | DE |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
