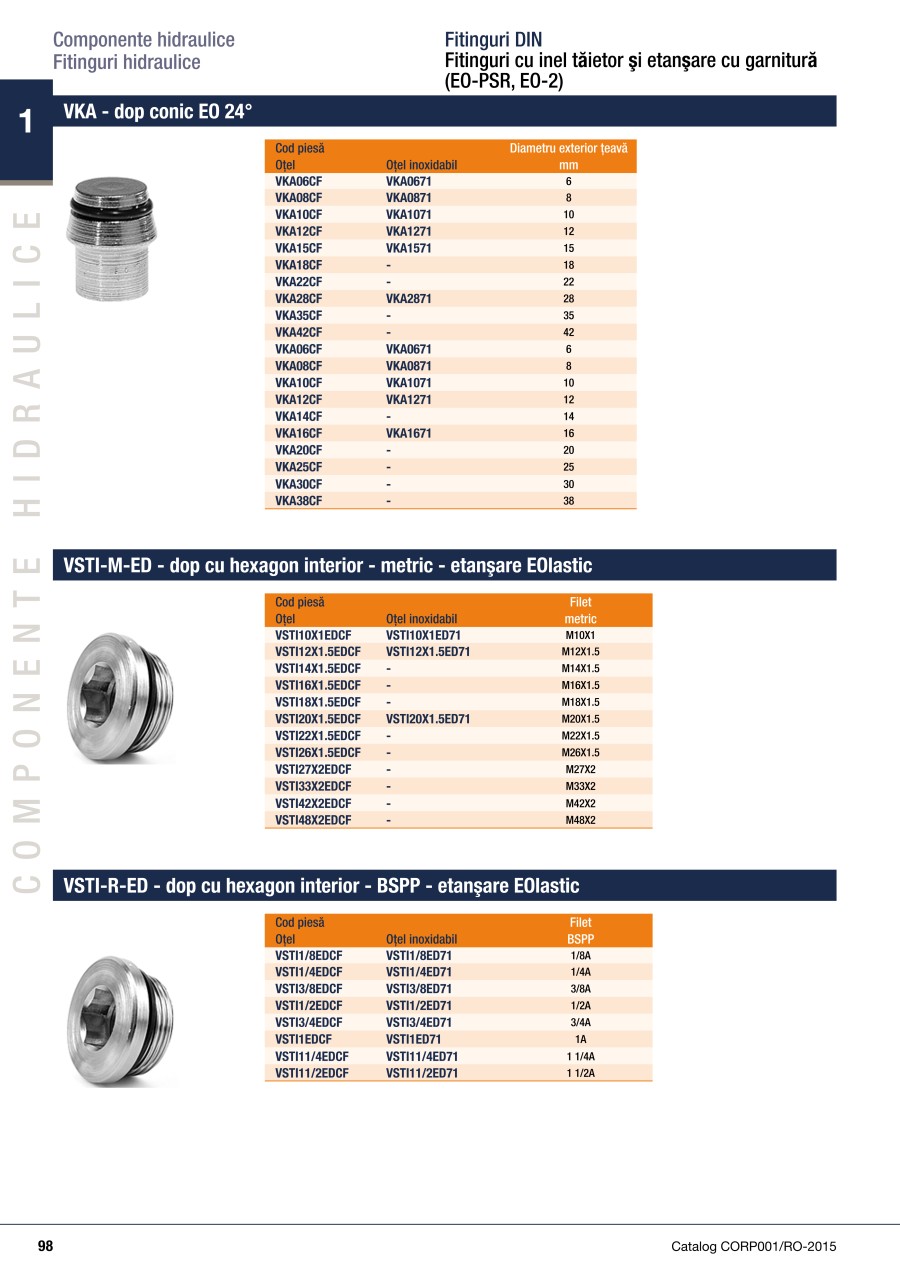

PARKER Blanking Plug for Cones VKA
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| VKA06MS |
| VKA08MS |
| VKA0671 |
| VKA0871 |
| VKA10MS |
| VKA12MS |
| VKA14MS |
| VKA15MS |
| VKA18MS |
| VKA20MS |
| VKA22MS |
| VKA28MS |
| VKA1071 |
| VKA1271 |
| VKA1471 |
| VKA1571 |
| VKA1671 |
| VKA1871 |
| VKA2071 |
| VKA2271 |
| VKA2571 |
| VKA2871 |
| VKA3071 |
| VKA3571 |
| VKA3871 |
| VKA4271 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | PN bar | Customs tariff weight (kg) | External pipe diameter D1 | L1 | Surface | Model series | Engineering material | |
|---|---|---|---|---|---|---|---|---|---|---|---|
61.77 € | 1 | 5 Days | 200 | 0.007 | 6 | 18.5 | Brass | L | Brass | ||
57.42 € | 1 | 5 Days | 200 | 0.009 | 8 | 18.5 | Brass | L | Brass | ||
28.31 € | 1 | 5 Days | 315 | 0.007 | 6 | 18.5 | Stainless steel | L | Stainless steel | ||
27.12 € | 1 | 5 Days | 315 | 0.011 | 8 | 18.5 | Stainless steel | L | Stainless steel | ||
18.57 € | 1 | 5 Days | 200 | 0.02 | 10 | 20 | Brass | L | Brass | ||
38.31 € | 1 | 5 Days | 200 | 0.022 | 12 | 20.5 | Brass | L | Brass | ||
- | 1 | Quote | 400 | 0.03 | 14 | 22.5 | Brass | S | Brass | ||
37.94 € | 1 | 5 Days | 200 | 0.033 | 15 | 20.5 | Brass | L | Brass | ||
73.82 € | 1 | 5 Days | 200 | 0.052 | 18 | 22.5 | Brass | L | Brass | ||
132.31 € | 1 | 5 Days | 250 | 0.078 | 20 | 28.5 | Brass | S | Brass | ||
36.34 € | 1 | 5 Days | 100 | 0.11 | 22 | 25 | Brass | L | Brass | ||
130.95 € | 1 | 5 Days | 100 | 0.131 | 28 | 25.5 | Brass | L | Brass | ||
27.95 € | 1 | 5 Days | 315 | 0.018 | 10 | 20 | Stainless steel | L | Stainless steel | ||
30.69 € | 1 | 5 Days | 315 | 0.025 | 12 | 20.5 | Stainless steel | L | Stainless steel | ||
48.43 € | 1 | 5 Days | 630 | 0.032 | 14 | 22.5 | Stainless steel | S | Stainless steel | ||
36.95 € | 1 | 5 Days | 315 | 0.035 | 15 | 20.5 | Stainless steel | L | Stainless steel | ||
45.69 € | 1 | 5 Days | 400 | 0.044 | 16 | 23.5 | Stainless steel | S | Stainless steel | ||
47.72 € | 1 | 5 Days | 315 | 0.053 | 18 | 22.5 | Stainless steel | L | Stainless steel | ||
62.63 € | 1 | 5 Days | 400 | 0.085 | 20 | 28.5 | Stainless steel | S | Stainless steel | ||
65.77 € | 1 | 5 Days | 160 | 0.088 | 22 | 25 | Stainless steel | L | Stainless steel | ||
83.75 € | 1 | 5 Days | 400 | 0.128 | 25 | 29 | Stainless steel | S | Stainless steel | ||
95.97 € | 1 | 5 Days | 160 | 0.139 | 28 | 25.5 | Stainless steel | L | Stainless steel | ||
141.02 € | 1 | 5 Days | 400 | 0.196 | 30 | 30.5 | Stainless steel | S | Stainless steel | ||
163.11 € | 1 | 5 Days | 160 | 0.25 | 35 | 30 | Stainless steel | L | Stainless steel | ||
201.68 € | 1 | 5 Days | 315 | 0.325 | 38 | 33 | Stainless steel | S | Stainless steel | ||
203.20 € | 1 | 5 Days | 160 | 0.38 | 42 | 30 | Stainless steel | L | Stainless steel |
Loading...
Basic information
| Customs tariff weight unit | kg | Scope of delivery | Complete, including seal; nut not included | Order code | VKA |
|---|---|---|---|---|---|
| Customs tariff item number | 73072980 | Customs tariff weight per | 1 | Customs tariff country of origin | DE |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
