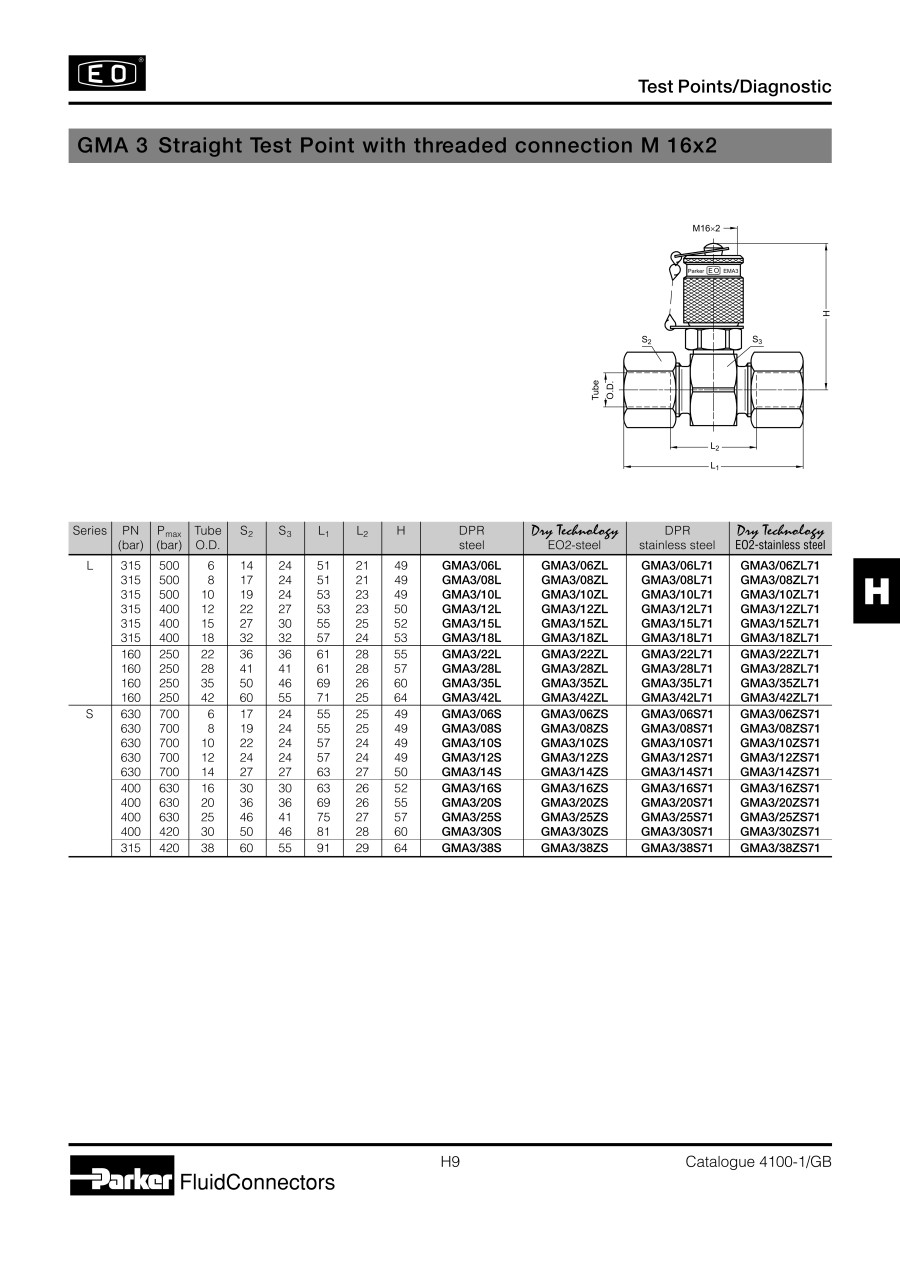

Parker GMA3 Straight Test Point M 16 × 2 Threaded Connection
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| GMA3/10LCF |
| GMA3/10SCF |
| GMA3/12LCF |
| GMA3/12SCF |
| GMA3/15LCF |
| GMA3/16SCF |
| GMA3/18LCF |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | S2 (mm) | L5 | PN bar | Customs tariff weight (kg) | External pipe diameter D1 | L4 | S1 | L2 | L3 | L1 | D3 | Model series | T1 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
107.77 € | 1 | 5 Days | 19 | 49 | 315 | 0.176 | 10 | 53 | 24 | 23 | 11 | 37 | 7 | L | M 16×1.5 | ||
107.71 € | 1 | 5 Days | 22 | 49 | 630 | 0.212 | 10 | 57 | 24 | 24 | 12 | 39 | 7 | S | M 18×1.5 | ||
102.57 € | 1 | 5 Days | 22 | 50.5 | 315 | 0.192 | 12 | 53 | 27 | 23 | 11 | 37 | 8 | L | M 18×1.5 | ||
119.42 € | 1 | 5 Days | 24 | 49 | 630 | 0.233 | 12 | 57 | 24 | 24 | 12 | 39 | 7 | S | M 20×1.5 | ||
118.18 € | 1 | 5 Days | 27 | 52 | 315 | 0.271 | 15 | 55 | 30 | 25 | 12 | 39 | 11 | L | M 22×1.5 | ||
123.14 € | 1 | 5 Days | 30 | 52 | 400 | 0.351 | 16 | 63 | 30 | 26 | 14 | 43 | 11 | S | M 24×1.5 | ||
133.52 € | 1 | 5 Days | 32 | 53 | 315 | 0.343 | 18 | 57 | 32 | 24 | 12 | 39 | 14 | L | M 26×1.5 |
Loading...
Basic information
| Customs tariff weight unit | kg | Scope of delivery | Complete, with nut and ring | Order code | GMA3 |
|---|---|---|---|---|---|
| Surface | Cr(VI)-free | Customs tariff item number | 90269000 | Engineering material | Steel |
| Customs tariff weight per | 1 | Customs tariff country of origin | PL |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
