Radial insert ball bearings / single row / NPP / inner ring for fit / adjusting ring / INA

Configure

Inner Diameter d(φ)
- 20
- 25
- 30
- 35
- 40
- 50
Outer Diameter D(φ)
- 55
- 62
- 72
- 80
- 90
- 100
Width B (or T)(mm)
- 16
- 17
- 21
- 25
Basic Dynamic Load Rating(N)
- 12800
- 14000
- 20700
- 25500
- 32500
Load Direction
- Radial
- Thrust
Customs tariff — weight(kg)
- 0.188
- 0.24
- 0.36
- 0.43
- 0.6
- 0.785
Type
CAD
- 3D
Est. shipping days
- All
- Within 3 working days
- Within 4 working days

Radial insert ball bearings / single row / NPP / inner ring for fit / adjusting ring / INA

Radial insert ball bearings / single row / NPP / inner ring for fit / adjusting ring / INA

Catalog

Part number:

Still undefined. 6 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Related

Inner Diameter d

(φ)

Outer Diameter D

(φ)

Width B (or T)

(mm)

Basic Dynamic Load Rating

(N)

Load Direction

Basic Load Rating Static Rating

(N)

Basic Load Rating Dynamic Rating (Ca)

(N)

Basic Load Rating Static Rating(Coa)

(N)

Customs tariff — weight

(kg)

Minimum order quantity

Data sheet	20	55	16	12800	Radial / Thrust	6600	12800	6600	0.188	1 pieces
Data sheet	25	62	17	14000	Radial / Thrust	7800	14000	7800	0.24	1 pieces
Data sheet	30	72	21	20700	Radial / Thrust	11300	20700	11300	0.36	1 pieces
Data sheet	35	80	21	25500	Radial / Thrust	15300	25500	15300	0.43	1 pieces
Data sheet	40	90	25	32500	Radial / Thrust	19800	32500	19800	0.6	1 pieces
-	50	100	25	-	-	-	-	-	0.785	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

30.40 € ( 36.18 € )	4 working days
28.42 € ( 33.82 € )	3 working days
34.71 € ( 41.30 € )	3 working days
40.26 € ( 47.91 € )	3 working days
46.58 € ( 55.43 € )	3 working days
125.35 € ( 149.17 € )	4 working days

Catalog

Product Features 1

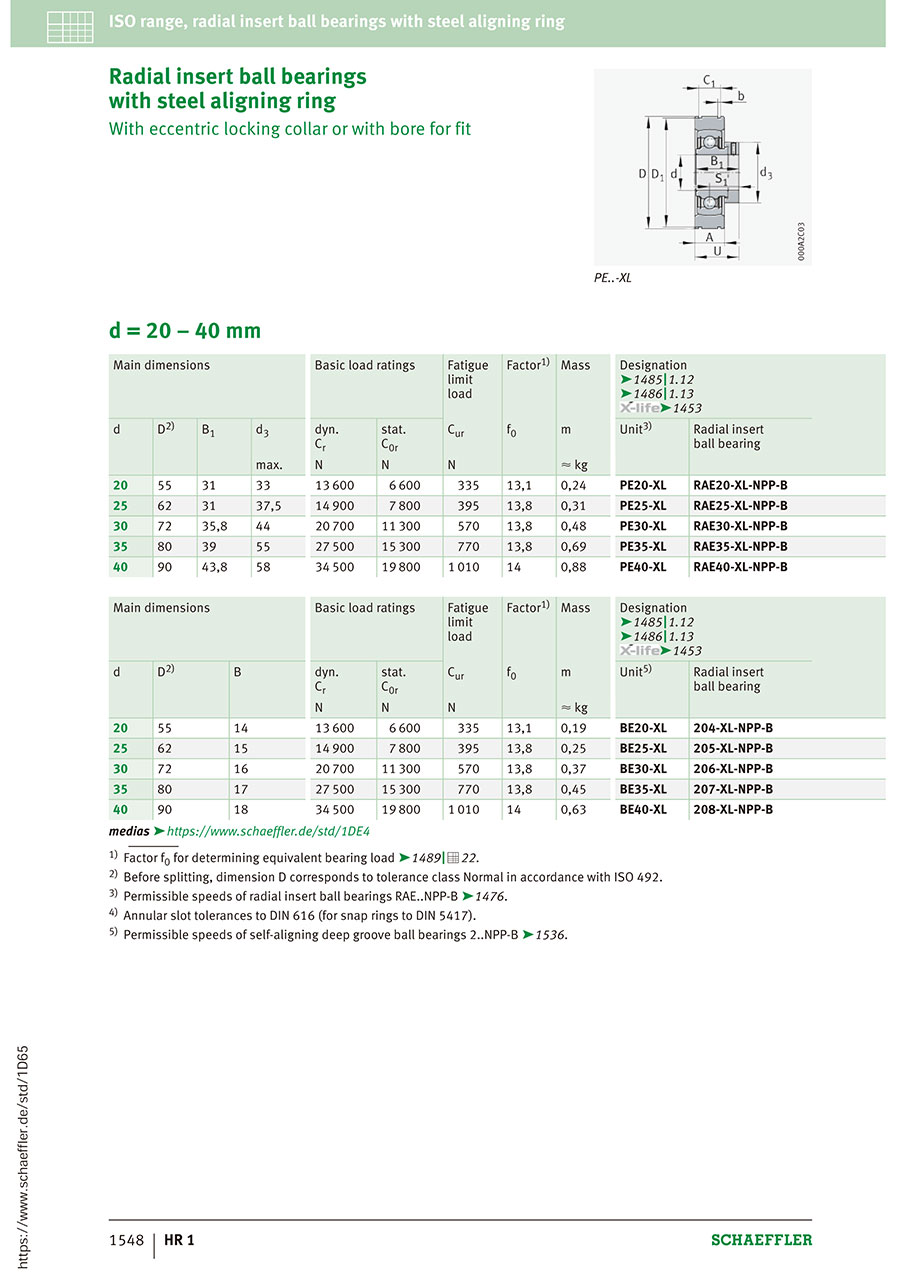

Catalog (2-page spread)

1548
