NORGREN

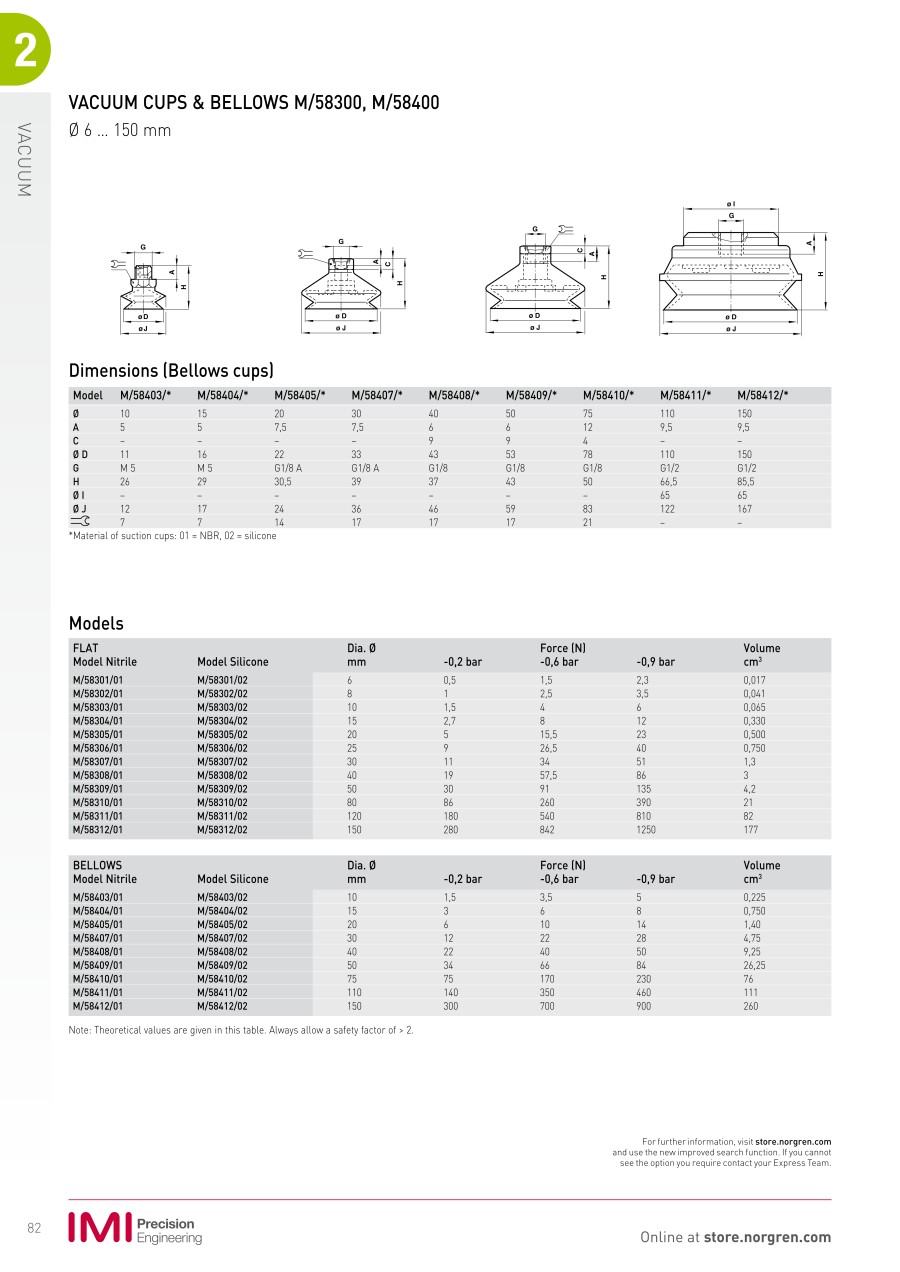

Vacuum Bellows Cups

Vacuum Bellows Cups

Part number:

Still undefined. 18 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    M/58403/01
    M/58403/02
    M/58404/01
    M/58404/02
    M/58405/01
    M/58405/02
    M/58407/01
    M/58407/02
    M/58408/01
    M/58408/02
    M/58409/01
    M/58409/02
    M/58410/01
    M/58410/02
    M/58411/01
    M/58411/02
    M/58412/01
    M/58412/02

    Operating Temperature Range

    (°C)

    Medium

    Materials

    Port Size

    		Minimum order quantity
    -10 - 70
    -
    Nitrile rubber
    M5
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    M5
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    M5
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    M5
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    G1/8A
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    G1/8A
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    G1/8A
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    G1/8A
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    G1/8
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    G1/8
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    G1/8
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    G1/8
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    G1/8
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    G1/8
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    G1/2
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    G1/2
    1 pieces
    -10 - 70
    -
    Nitrile rubber
    G1/2
    1 pieces
    -30 - 200
    Vacuum
    Aluminium
    G1/2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    10.24 €
    ( 12.19 € )
    5 working days
    18.70 €
    ( 22.25 € )
    5 working days
    12.24 €
    ( 14.57 € )
    5 working days
    19.47 €
    ( 23.17 € )
    5 working days
    20.03 €
    ( 23.84 € )
    5 working days
    29.16 €
    ( 34.70 € )
    5 working days
    24.91 €
    ( 29.64 € )
    5 working days
    38.27 €
    ( 45.54 € )
    5 working days
    30.71 €
    ( 36.54 € )
    5 working days
    42.71 €
    ( 50.82 € )
    5 working days
    35.60 €
    ( 42.36 € )
    5 working days
    50.50 €
    ( 60.09 € )
    5 working days
    53.74 €
    ( 63.95 € )
    5 working days
    98.47 €
    ( 117.18 € )
    5 working days
    154.21 €
    ( 183.51 € )
    5 working days
    207.50 €
    ( 246.93 € )
    5 working days
    244.66 €
    ( 291.15 € )
    5 working days
    363.46 €
    ( 432.52 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Specifications]
    ・Thread Type: BSPP
    ・Materials: Aluminium, Nitrile rubber

    [Features]
    ・φ 10 ... 150 mm
    ・Bellows cups ideal when level compensation is required or when a vertical off-set motion is involved on curved surface
    ・Flexibe connector for a vertical offset motion
    ・Level compensator allows variations in product positioning
