Ball buttons spring plungers
- Volume Discount
[Specifications]
・d1:12
・d2: 6

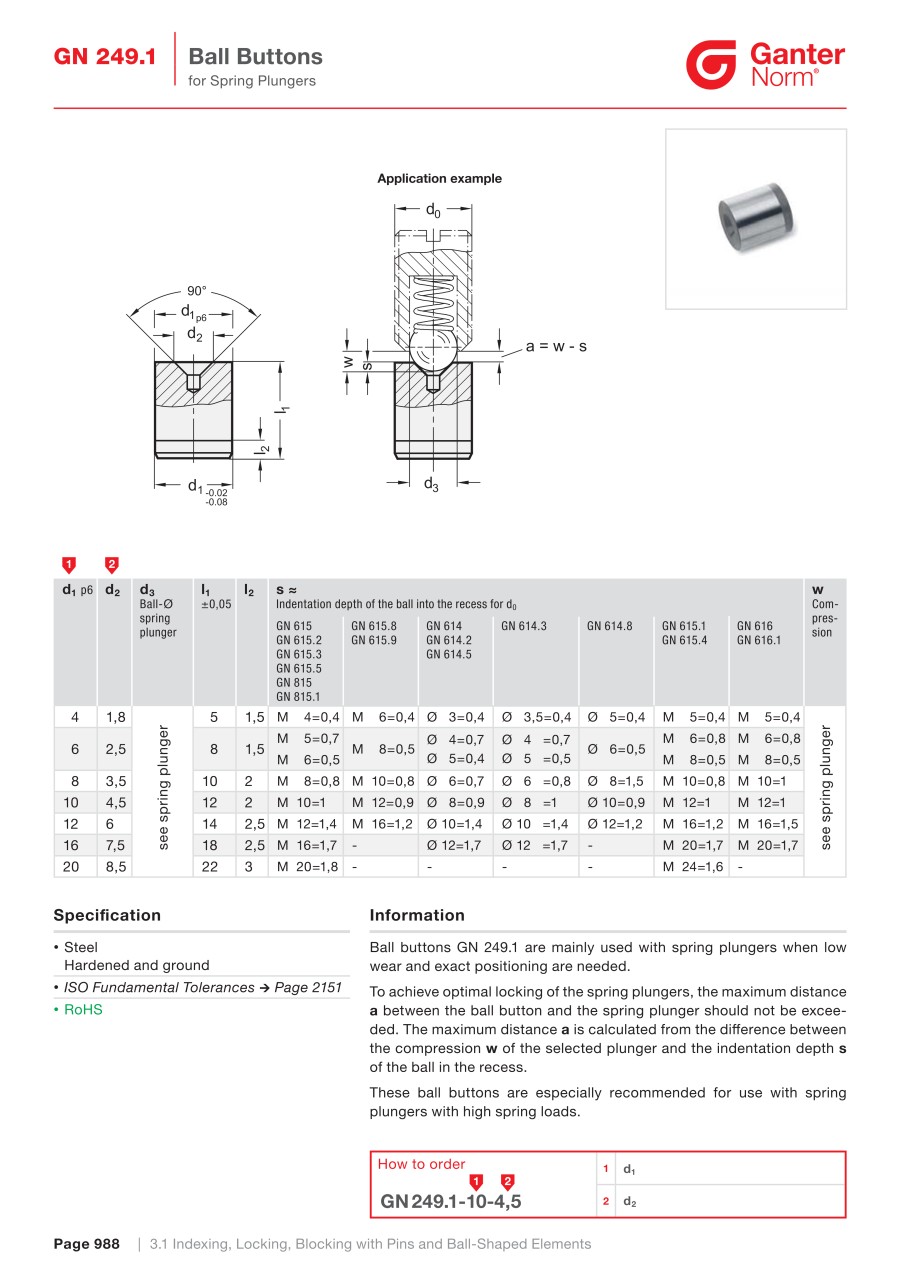

Ball buttons GN 249.1 are mainly used with spring plungers when low wear and exact positioning are needed.
・d1:12
・d2: 6
Ball buttons GN 249.1 are mainly used with spring plungers when low wear and exact positioning are needed.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
249.1-12-6
- Product data
- CAD data not available
Basic information
| d1 | 12 | d2 | 6 | l1 | 14 |
|---|---|---|---|---|---|
| l2 | 2.5 | x1 | M_16=1.2. M_16=1.2 | x2 | Ø_10=1.4. Ø_10=1.4 |
| x3 | Ø_10=1.4. Ø_10=1.4 | s | M_12=1.4. M_12=1.4 | RoHS | Ja |
| x6 | M_16=1.5. M_16=1.5 | x4 | Ø_12=1.2. Ø_12=1.2 | Weight(g) | 12.0 |
| x5 | M_16=1.2. M_16=1.2 |
This page is Ball buttons spring plungers, part number 249.1-12-6.
You can find the detail information about specifications and dimensions on part number 249.1-12-6.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
