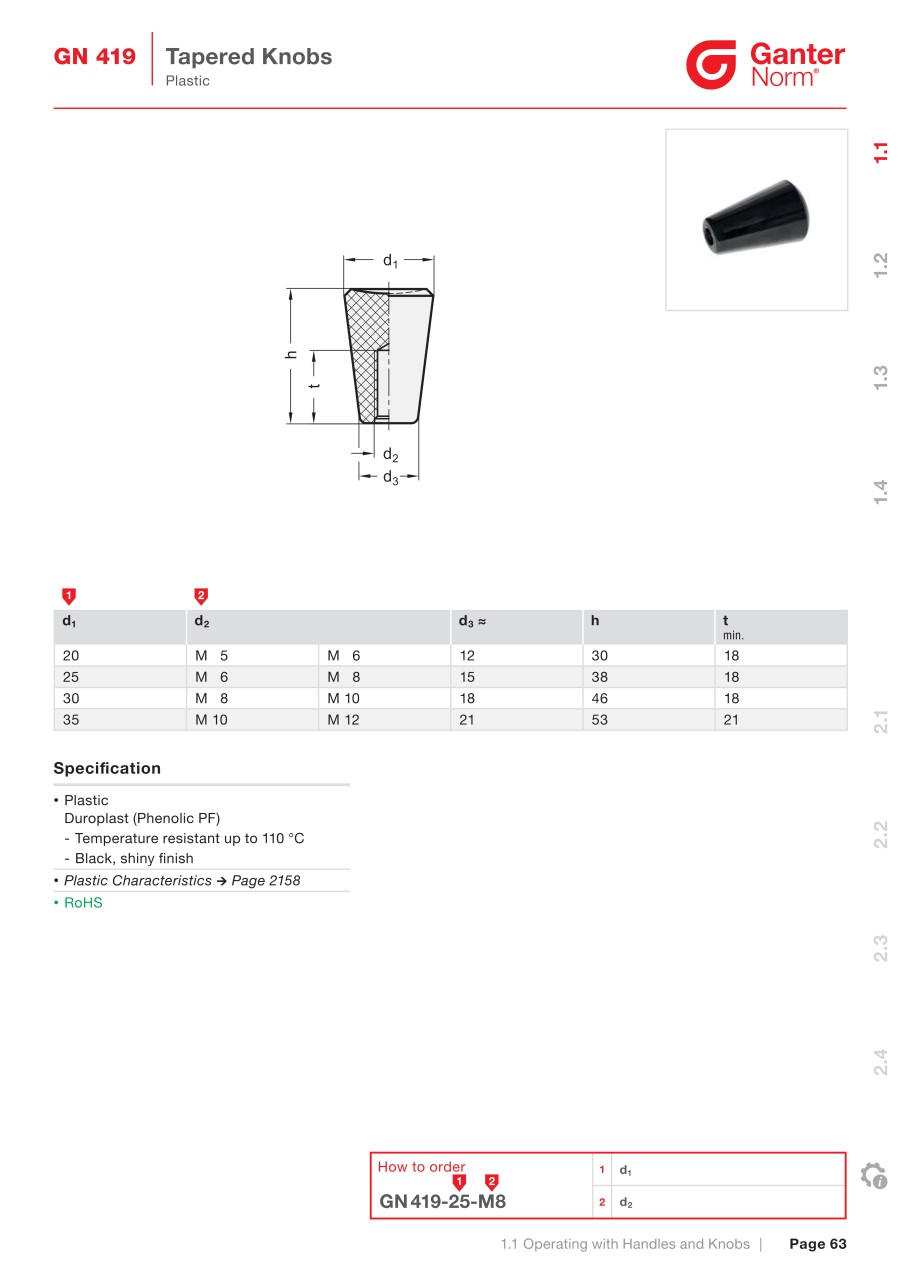

Tapered knobs, Plastic
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 419-20-M5 |
| 419-20-M6 |
| 419-25-M6 |
| 419-25-M8 |
| 419-30-M8 |
| 419-30-M10 |
| 419-35-M10 |
| 419-35-M12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | d3 | h | t | Thread d2 | Handle diameter d1 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
1.38 € | 1 | Available | 9 Days | 12 | 30 | 18 | M 5 | 20 | 8.0 | |
1.38 € | 1 | Available | 9 Days | 12 | 30 | 18 | M 6 | 20 | 7.0 | |
1.92 € | 1 | Available | 9 Days | 15 | 38 | 18 | M 6 | 25 | 14.0 | |
1.92 € | 1 | Available | 9 Days | 15 | 38 | 18 | M 8 | 25 | 15.0 | |
2.62 € | 1 | Available | 9 Days | 18 | 46 | 18 | M 8 | 30 | 26.0 | |
2.62 € | 1 | Available | 9 Days | 18 | 46 | 18 | M 10 | 30 | 26.0 | |
3.24 € | 1 | Available | 9 Days | 21 | 53 | 21 | M 10 | 35 | 40.0 | |
3.24 € | 1 | Available | 9 Days | 21 | 53 | 21 | M 12 | 35 | 44.0 |
Loading...
Basic information
| RoHS | Ja |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
