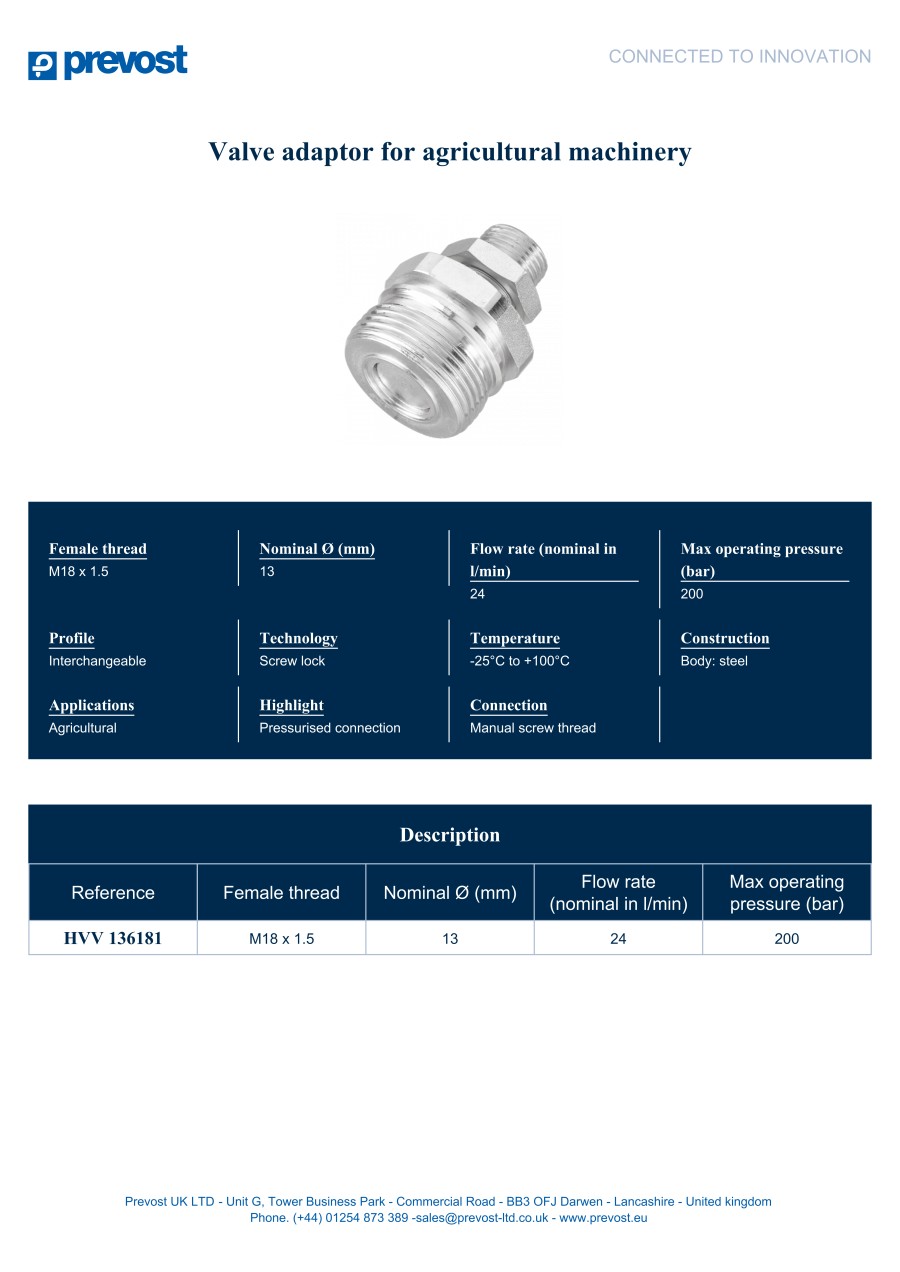

Valve Adaptor
[Specifications]
・Type: Valve adaptor
・Application: Agricultural
・Construction: Body: steel
・Nominal Diameter: Ø13mm
・Profile: Interchangeable
[Features]
・Hydraulic quick fittings are used to easily and safely connect and disconnect pipe and other oil equipment, without the need for special tools or equipment
・Technicians can select the specific part for their system from the Prevost fittings range (anchor link to the first paragraph), by figuring out the pressure, temperature and other technical conditions
・Double-closure fitting system: when uncoupled, the fitting shuts off the fluid supply and a closure system stops the adaptor to avoid downstream fluid flow
・Type: Valve adaptor
・Application: Agricultural
・Construction: Body: steel
・Nominal Diameter: Ø13mm
・Profile: Interchangeable
[Features]
・Hydraulic quick fittings are used to easily and safely connect and disconnect pipe and other oil equipment, without the need for special tools or equipment
・Technicians can select the specific part for their system from the Prevost fittings range (anchor link to the first paragraph), by figuring out the pressure, temperature and other technical conditions
・Double-closure fitting system: when uncoupled, the fitting shuts off the fluid supply and a closure system stops the adaptor to avoid downstream fluid flow
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
HVV 136181
- Product data
- CAD data not available
Basic information
| Temperature(°C) | - 25 to +100 | Nominal Diameter(mm) | 13 | Application | Agricultural |
|---|---|---|---|---|---|
| Female Thread | M18 x 1.5 | Flow Rate(l/min) | 24 (nominal) | Max. Operating Pressure(bar) | 200 |
| Construction | Body: steel | Technology | Screw lock | Connection | Manual screw thread |
| Profile | Interchangeable | Highlight | Pressurised connection |
This page is Valve Adaptor, part number HVV 136181.
You can find the detail information about specifications and dimensions on part number HVV 136181.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
