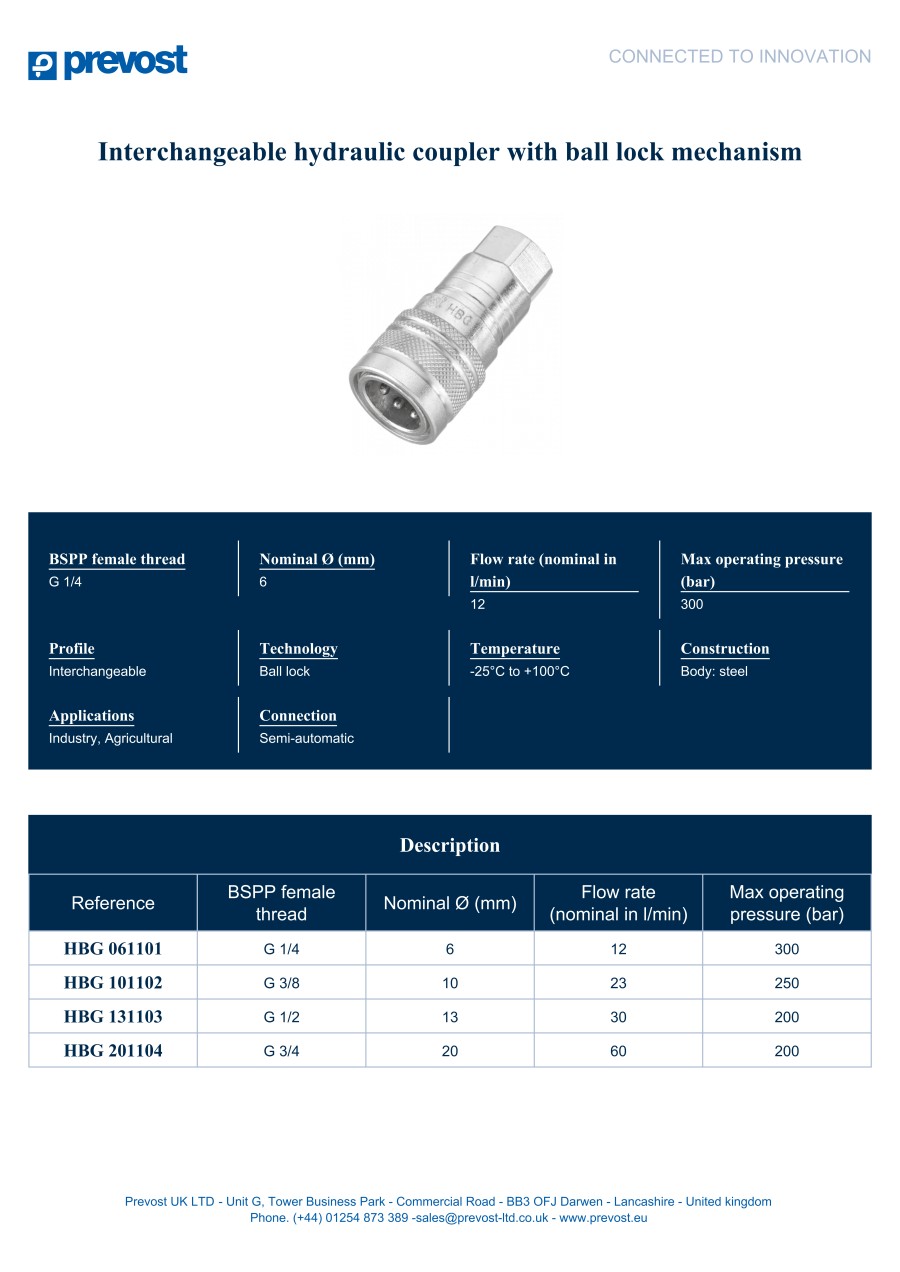

Interchangeable Ball Adaptors
[Specifications]
・Type: Interchangeable hydraulic adaptor with ball lock mechanism
・Application: Industry, Agricultural
・Construction: Body: steel
・Profile: Interchangeable
[Features]
・Hydraulic quick fittings are used to easily and safely connect and disconnect pipe and other oil equipment, without the need for special tools or equipment
・Technicians can select the specific part for their system from the Prevost fittings range (anchor link to the first paragraph), by figuring out the pressure, temperature and other technical conditions
・Double-closure fitting system: when uncoupled, the fitting shuts off the fluid supply and a closure system stops the adaptor to avoid downstream fluid flow
・Type: Interchangeable hydraulic adaptor with ball lock mechanism
・Application: Industry, Agricultural
・Construction: Body: steel
・Profile: Interchangeable
[Features]
・Hydraulic quick fittings are used to easily and safely connect and disconnect pipe and other oil equipment, without the need for special tools or equipment
・Technicians can select the specific part for their system from the Prevost fittings range (anchor link to the first paragraph), by figuring out the pressure, temperature and other technical conditions
・Double-closure fitting system: when uncoupled, the fitting shuts off the fluid supply and a closure system stops the adaptor to avoid downstream fluid flow
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| HBG 066101 |
| HBG 106102 |
| HBG 136103 |
| HBG 206104 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Diameter (mm) | BSPP Female Thread | Flow Rate (l/min) | Max. Operating Pressure (bar) | |
|---|---|---|---|---|---|---|---|---|
8.52 € | 1 | 7 Days | 6 | G 1/4 | 12 (nominal) | 300 | ||
10.75 € | 1 | 7 Days | 10 | G 3/8 | 23 (nominal) | 250 | ||
12.10 € | 1 | 7 Days | 13 | G 1/2 | 30 (nominal) | 200 | ||
26.82 € | 1 | 7 Days | 20 | G 3/4 | 60 (nominal) | 200 |
Loading...
Basic information
| Temperature(°C) | - 25 to +100 | Application | Industry, Agricultural | Construction | Body: steel |
|---|---|---|---|---|---|
| Technology | Ball lock | Connection | Semi-automatic | Profile | Interchangeable |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
