Configure
- Air consumption per cycle(dm³)
- 0.02
- 0.04
- 0.09
- 0.27
- Strokes per min. at 6 bar(mm)
- 40
- 55
- 60
- A(mm)
- 12.7
- 16
- 19
- 32
- A1(mm)
- 145
- 185
- 234
- 289
- A2(mm)
- 5
- 7
- 8
- 10
- B(mm)
- 24
- 27
- 32
- 45
- B1(mm)
- 40
- 48
- 59
- 76
- B3(mm)
- 5.3
- 6.4
- 8.9
- 12.7
- C(mm)
- 18
- 24
- 35
- 54
- C1(mm)
- 9
- 11
- 17.5
- 25
- D(mm)
- 4.4
- 5.1
- 7.1
- 8.7
- H(mm)
- 50
- 62
- 84
- 122
- L(mm)
- 177
- 227
- 309
- 413
- L1(mm)
- 32
- 42
- 75
- 124
- Clamping force at 6 bar F3(N)
- 800
- 1000
- 1200
- 2600
- Clamping force at 6 bar F4(N)
- 1400
- 1600
- 1800
- 5400
- Holding force at 6 bar F1(N)
- 1000
- 1300
- 1600
- 3000
- Holding force at 6 bar F2(N)
- 1600
- 1900
- 2400
- 5800
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days
Pneumatic clamps horizontal Form B (K0090)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
282.84 € ( 336.58 € ) | 4 working days |
335.55 € ( 399.30 € ) | 4 working days |
375.31 € ( 446.62 € ) | 4 working days |
445.83 € ( 530.54 € ) | 4 working days |
More Information
Basic information

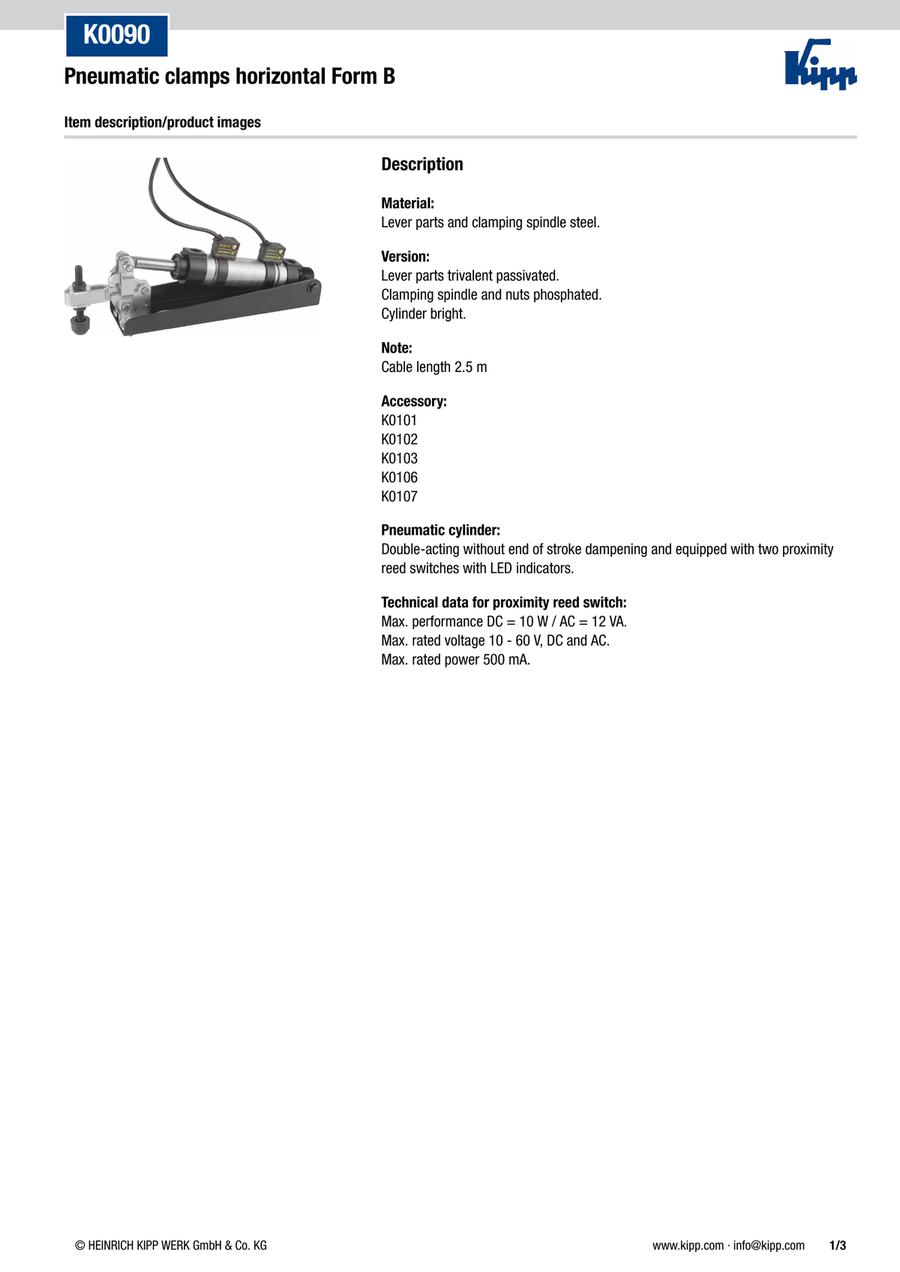

· Pneumatic clamps are used as assembly and workholding fixtures
· Application sectors: machine construction, metal processing, woodworking, plastics industry
· Double-acting without end position damping
· Automatable
· Proximity reed switch included
