    KIPP

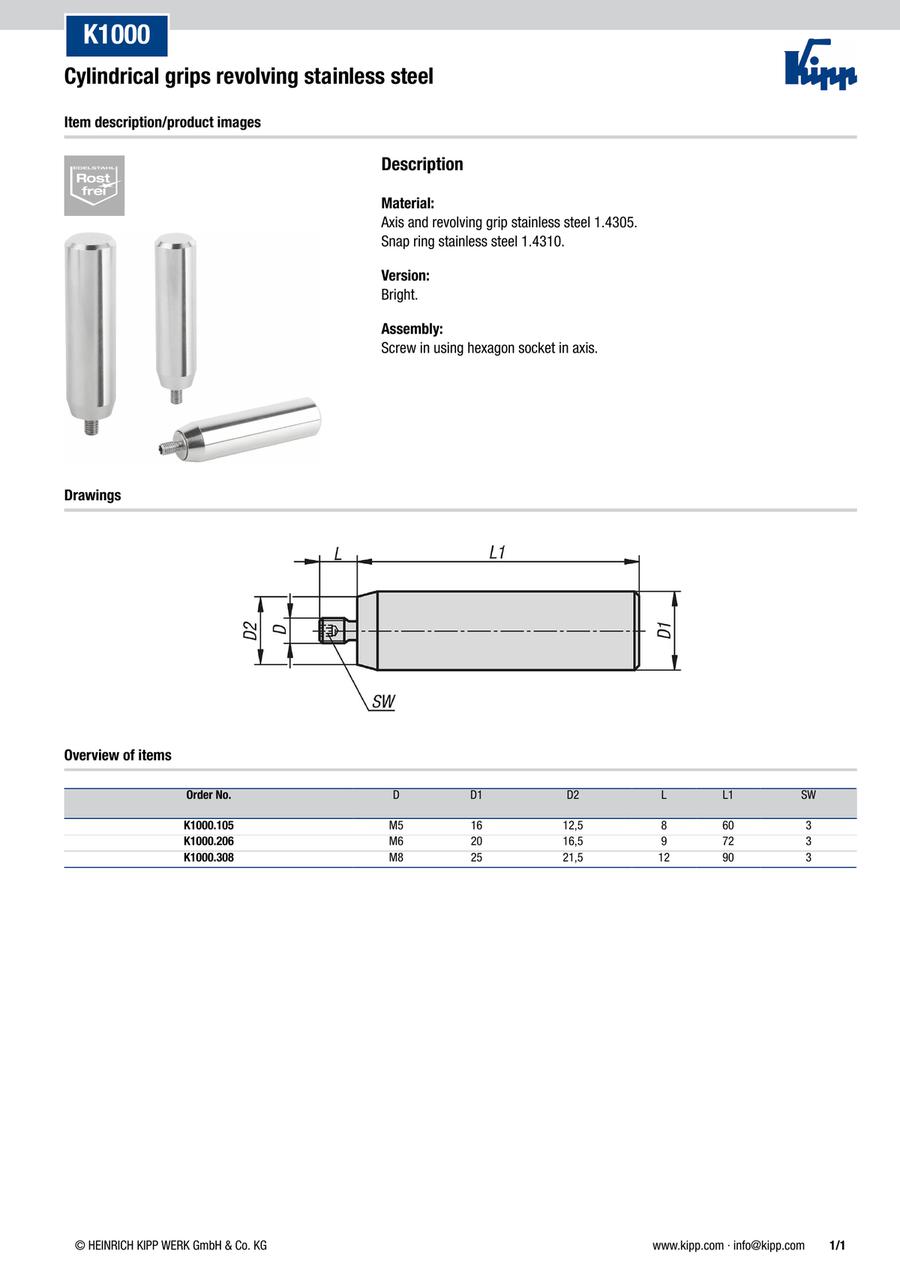

    Cylindrical grips revolving stainless steel (K1000)

    Cylindrical grips revolving stainless steel (K1000)

    Part number:

    Still undefined. 3 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1000.105
    K1000.206
    K1000.308

    Thread Nominal M

    Handle Length

    (mm)

    D1=Outside diameter

    (mm)

    D2

    (mm)

    L=thread length

    (mm)

    		Minimum order quantity
    M5
    60
    16
    12.5
    8
    1 pieces
    M6
    72
    20
    16.5
    9
    1 pieces
    M8
    90
    25
    21.5
    12
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    14.12 €
    ( 16.80 € )
    4 working days
    15.27 €
    ( 18.17 € )
    4 working days
    18.70 €
    ( 22.25 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Grips for handwheels and cranks

    · Application sectors: machine, plant, armament and instrument construction, measuring equipment

    · Mounting: via hex socket on centre pin

    · Stainless steel 1.4305, 1.4310

    · Different thread sizes
