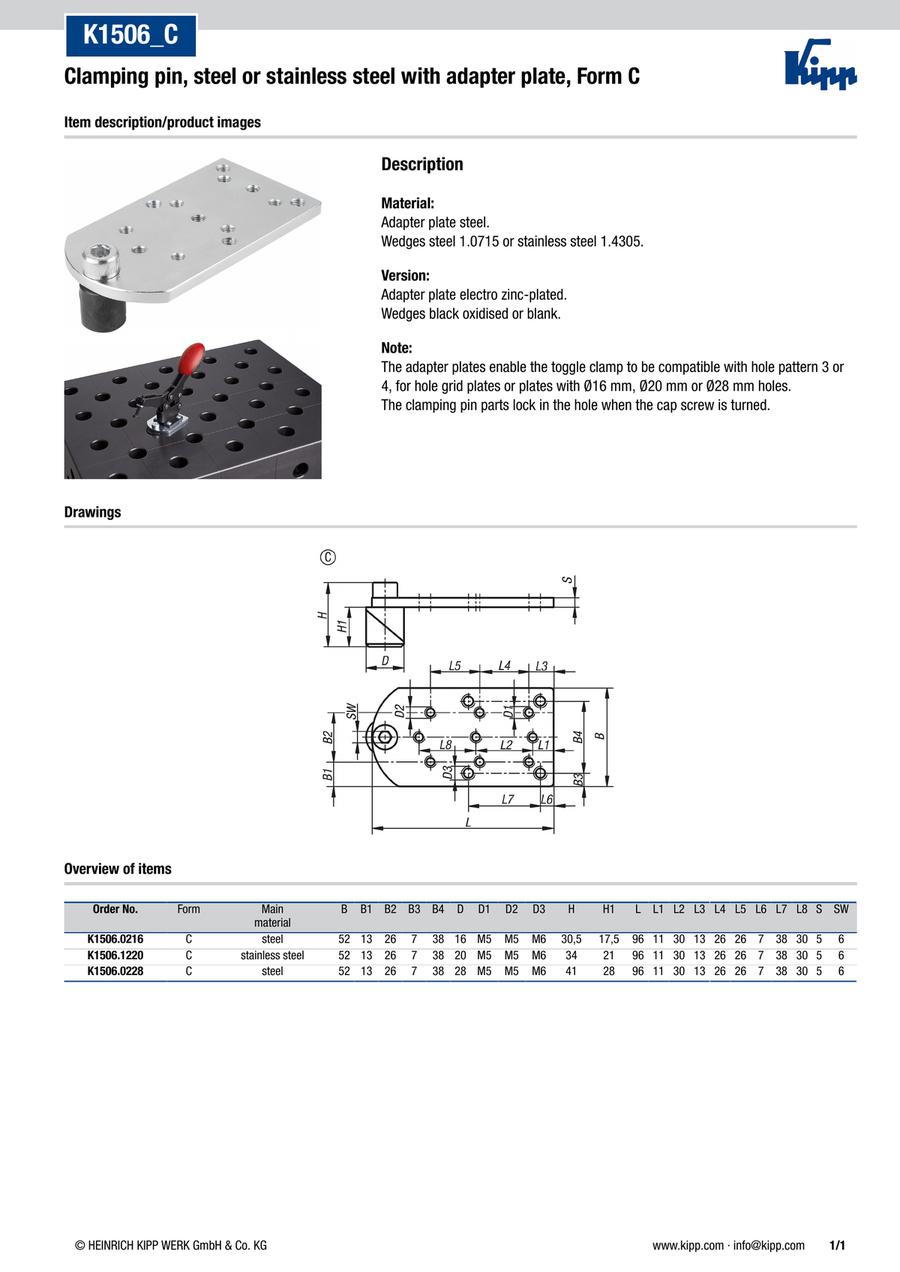

Clamping pin steel or stainless steel with adapter plate, Form C (K1506)
· Compatible with KIPP toggle clamps
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1506.0216 |
| K1506.0228 |
| K1506.1220 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Surface finish body | D=diameter (mm) | H=Height (mm) | H1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|
38.86 € | 1 | 4 Days | Steel | black oxidised | 16 | 30.5 | 17.5 | ||
48.24 € | 1 | 4 Days | Steel | black oxidised | 28 | 41 | 28 | ||
42.00 € | 1 | 4 Days | Stainless steel | bright | 20 | 34 | 21 |
Loading...
Basic information
| Component material | Steel | Surface finish component | galvanised | Form | C |
|---|---|---|---|---|---|
| B=Width(mm) | 52 | B1(mm) | 13 | B2(mm) | 26 |
| B3(mm) | 7 | B4(mm) | 38 | D1(mm) | M5 |
| D2(mm) | M5 | D3(mm) | M6 | L=Length(mm) | 96 |
| L1(mm) | 11 | L2(mm) | 30 | L3(mm) | 13 |
| L4(mm) | 26 | L5(mm) | 26 | L6(mm) | 7 |
| L7(mm) | 38 | L8(mm) | 30 | S=Thickness(mm) | 5 |
| SW(mm) | 6 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
