Configure
- B(mm)
- 19
- 28.5
- 38
- B1(mm)
- 8.4
- 13
- 17
- B2(mm)
- 13.4
- 19.8
- 24.8
- G(mm)
- 5.3
- 9.5
- 12.7
- H1(mm)
- 15.9
- 41
- H3(mm)
- 6.6
- 6.9
- 21
- L(mm)
- 63.5
- 95.1
- 107
- L1(mm)
- 21
- 42.7
- 46.3
- L2(mm)
- 12.7
- 13.5
- S(mm)
- 6.3
- 7.1
- 8.3
- S1(mm)
- 1.2
- 2
- 2.5
- SW(mm)
- 7
- 8
- 12
- Clamping force(kN)
- 8.9
- 17.8
- 26.7
- Tightening torque max.(Nm)
- 28
- 88
- 135
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

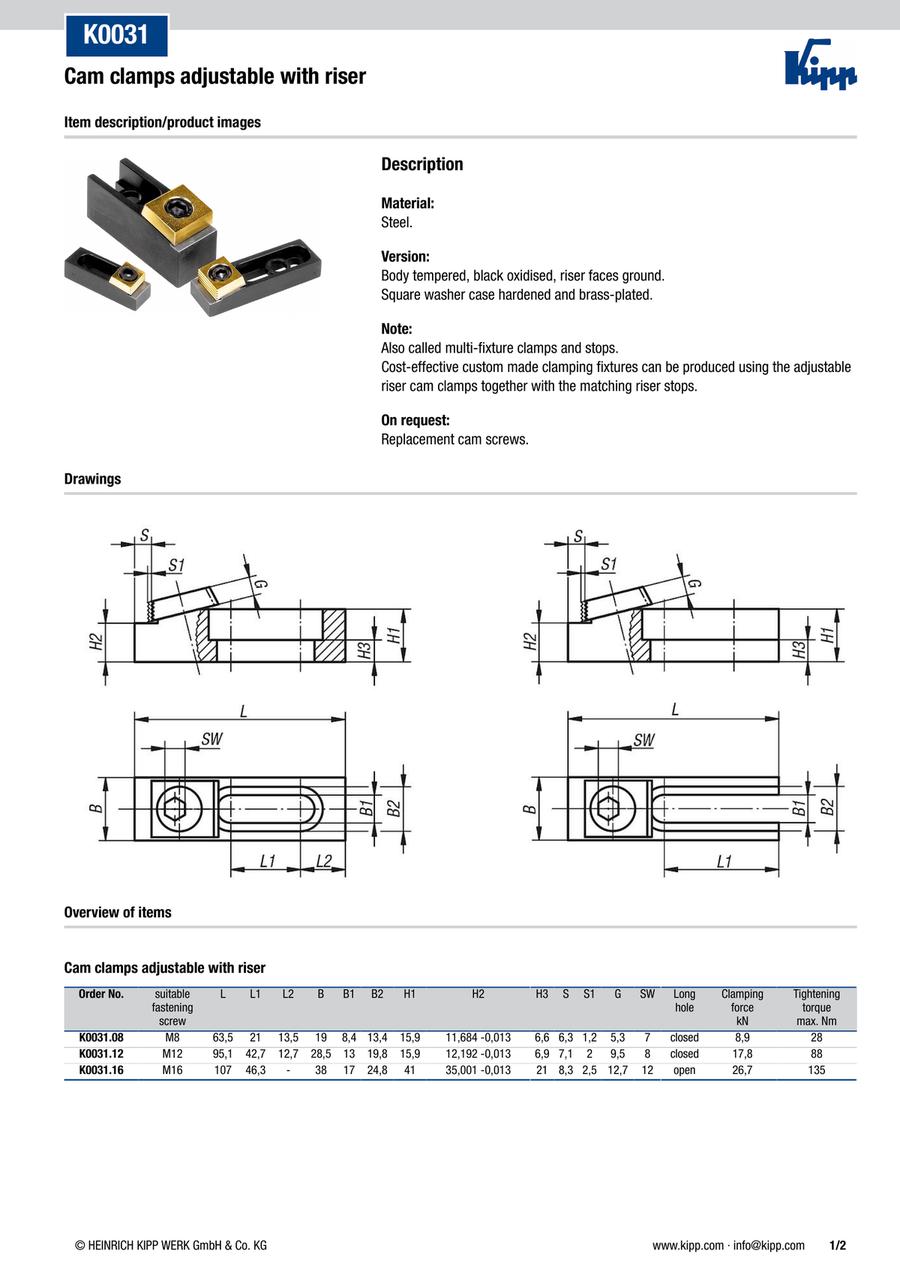

Cam clamps adjustable with riser (K0031)
Part number:
possible part numbers found.More Information
Basic information
· Mountable directly on machine tables
· With positive down force
· Ground contact face
· For clamping rough and finished parts
