    KIPP

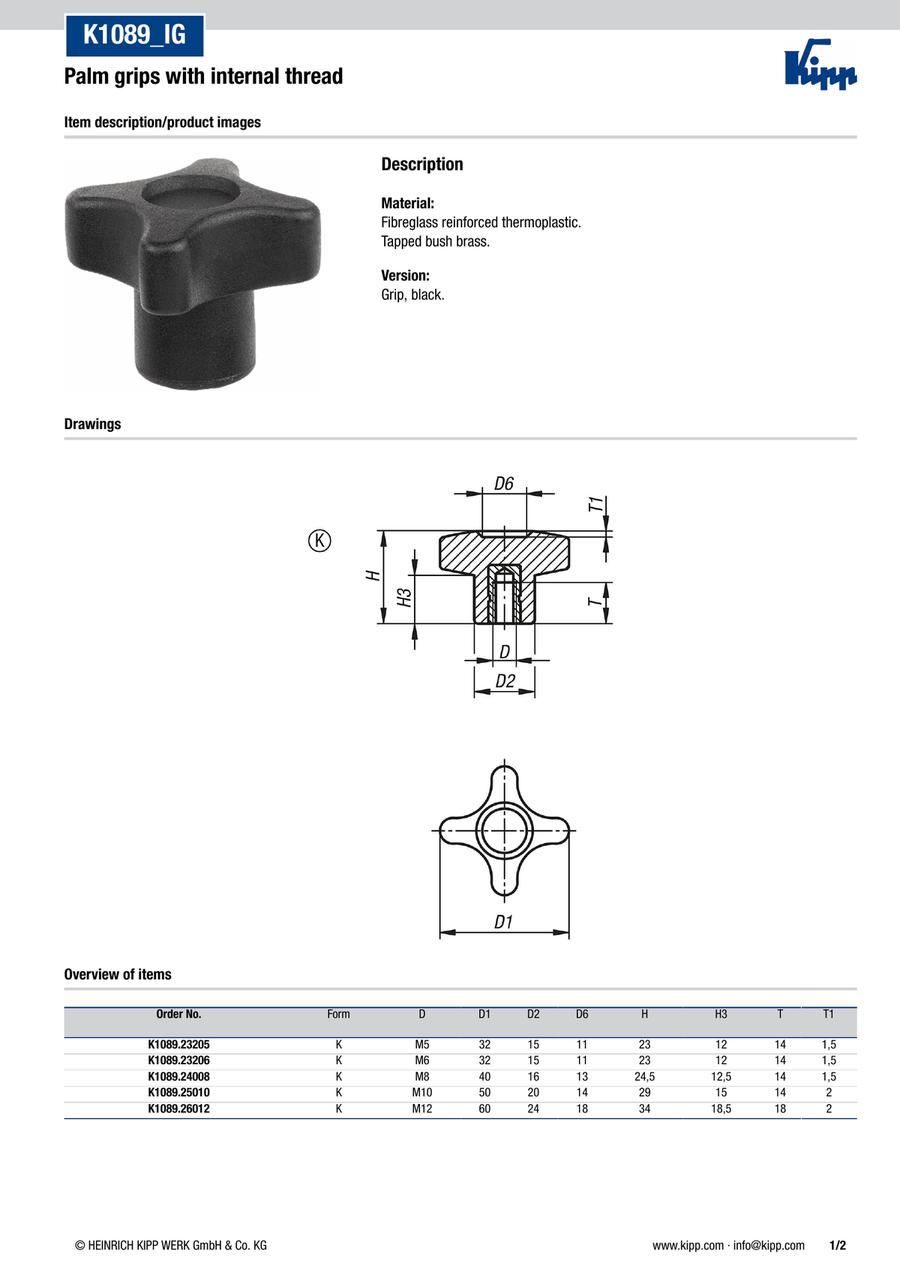

    Palm grips with internal thread (K1089)

    Palm grips with internal thread (K1089)

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1089.23205
    K1089.23206
    K1089.24008
    K1089.25010
    K1089.26012

    Thread

    Outside diameter

    (φ)

    D2

    (mm)

    D6

    (mm)

    H=Height

    (mm)

    H3

    T=thread depth

    (mm)

    T1

    (mm)

    		Minimum order quantity
    M5
    32
    15
    11
    23
    12
    14
    1.5
    1 pieces
    M6
    32
    15
    11
    23
    12
    14
    1.5
    1 pieces
    M8
    40
    16
    13
    24.5
    12.5
    14
    1.5
    1 pieces
    M10
    50
    20
    14
    29
    15
    14
    2
    1 pieces
    M12
    60
    24
    18
    34
    18.5
    18
    2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.94 €
    ( 1.12 € )
    4 working days
    0.98 €
    ( 1.17 € )
    4 working days
    0.98 €
    ( 1.17 € )
    4 working days
    1.35 €
    ( 1.61 € )
    4 working days
    1.99 €
    ( 2.37 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Universally applicable

    · Different thread sizes
