Configure

Thread
- M6
- M8
- M10
- M12
Outside diameter(φ)
- 25
- 32
- 40
- 50
Steel code
- 1.4305
Component material
- Stainless steel
- Steel
Colour Cap
Size
- 1
- 2
- 3
- 4
D2(mm)
- 12
- 15.5
- 19
- 24
D3(mm)
- 17
- 19
- 23
- 31
H=Height(mm)
- 25
- 33
- 41
- 51
H1(Nm)
- 3
- 3.5
- 4
- 5.5
H2
- 2
- 2.6
- 3
- 4.5
L=thread length(mm)
- 15
- 20
- 25
- 30
- 40
T=thread depth(mm)
- 10
- 14
- 18
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

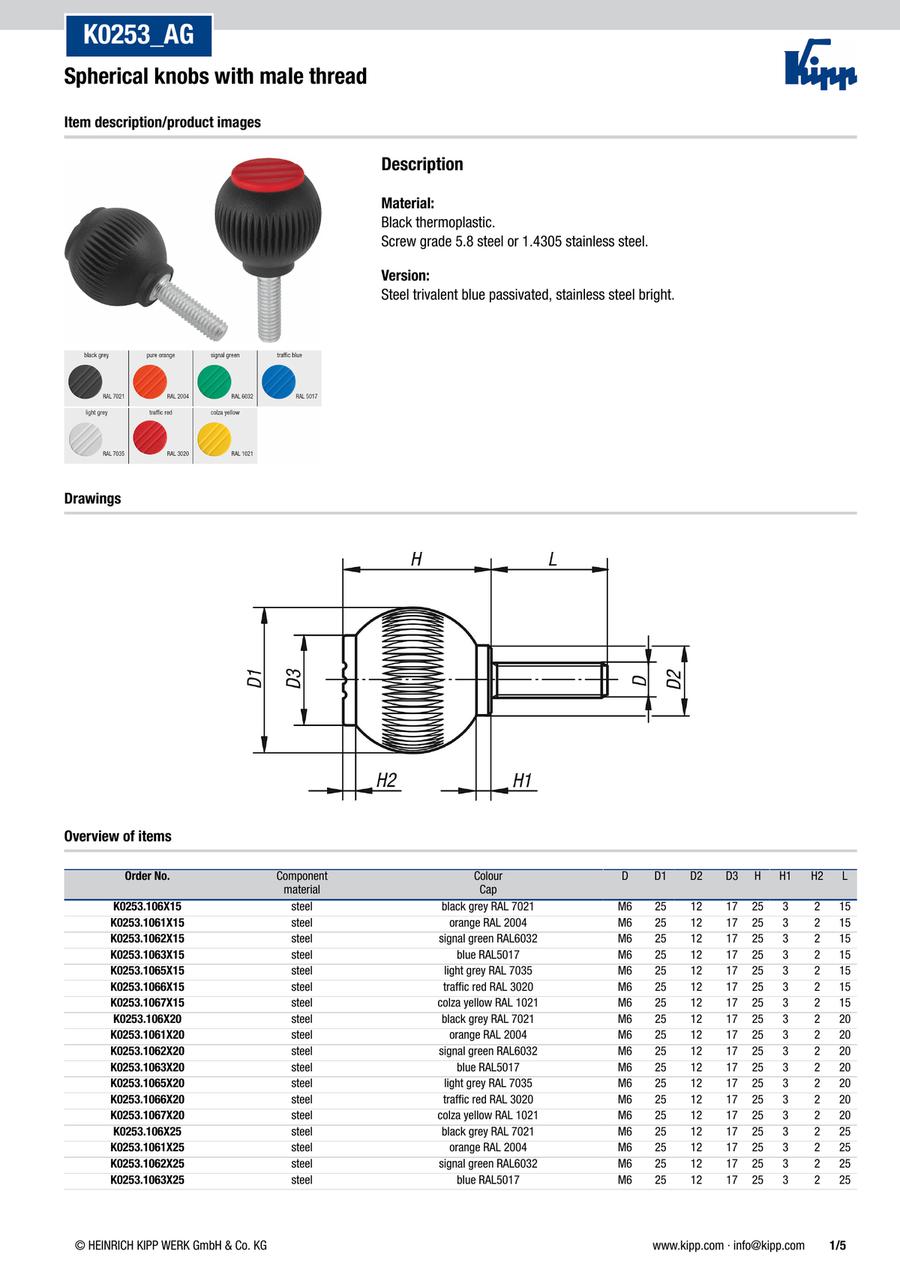

Spherical knobs with male thread (K0253)

Catalog

Part number:

Still undefined. 238 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Thread

Outside diameter

(φ)

Steel code

Component material

Colour Cap

Size

(mm)

H=Height

(mm)

(Nm)

L=thread length

(mm)

T=thread depth

(mm)

Minimum order quantity

M6	25	1.4305	Stainless steel	orange RAL 2004	1	12	17	25	3	2	15	-	1 pieces
M6	25	1.4305	Stainless steel	orange RAL 2004	1	12	17	25	3	2	20	-	1 pieces
M6	25	1.4305	Stainless steel	orange RAL 2004	1	12	17	25	3	2	25	-	1 pieces
M6	25	1.4305	Stainless steel	orange RAL 2004	1	12	17	25	3	2	30	-	1 pieces
M6	25	1.4305	Stainless steel	signal green RAL6032	1	12	17	25	3	2	15	-	1 pieces
M6	25	1.4305	Stainless steel	signal green RAL6032	1	12	17	25	3	2	20	-	1 pieces
M6	25	1.4305	Stainless steel	signal green RAL6032	1	12	17	25	3	2	25	-	1 pieces
M6	25	1.4305	Stainless steel	signal green RAL6032	1	12	17	25	3	2	30	-	1 pieces
M6	25	1.4305	Stainless steel	blue RAL5017	1	12	17	25	3	2	15	-	1 pieces
M6	25	1.4305	Stainless steel	blue RAL5017	1	12	17	25	3	2	20	-	1 pieces
M6	25	1.4305	Stainless steel	blue RAL5017	1	12	17	25	3	2	25	-	1 pieces
M6	25	1.4305	Stainless steel	blue RAL5017	1	12	17	25	3	2	30	-	1 pieces
M6	25	-	Stainless steel	light grey RAL 7035	1	12	17	25	3	2	15	10	1 pieces
M6	25	-	Stainless steel	light grey RAL 7035	1	12	17	25	3	2	20	10	1 pieces
M6	25	-	Stainless steel	light grey RAL 7035	1	12	17	25	3	2	25	10	1 pieces
M6	25	-	Stainless steel	light grey RAL 7035	1	12	17	25	3	2	30	10	1 pieces
M6	25	-	Stainless steel	traffic red RAL 3020	1	12	17	25	3	2	15	10	1 pieces
M6	25	-	Stainless steel	traffic red RAL 3020	1	12	17	25	3	2	20	10	1 pieces
M6	25	-	Stainless steel	traffic red RAL 3020	1	12	17	25	3	2	25	10	1 pieces
M6	25	-	Stainless steel	traffic red RAL 3020	1	12	17	25	3	2	30	10	1 pieces
M6	25	-	Stainless steel	colza yellow RAL 1021	1	12	17	25	3	2	15	10	1 pieces
M6	25	-	Stainless steel	colza yellow RAL 1021	1	12	17	25	3	2	20	10	1 pieces
M6	25	-	Stainless steel	colza yellow RAL 1021	1	12	17	25	3	2	25	10	1 pieces
M6	25	-	Stainless steel	colza yellow RAL 1021	1	12	17	25	3	2	30	10	1 pieces
M6	25	-	Stainless steel	black grey RAL 7021	1	12	17	25	3	2	15	-	1 pieces
M6	25	-	Stainless steel	black grey RAL 7021	1	12	17	25	3	2	20	-	1 pieces
M6	25	-	Stainless steel	black grey RAL 7021	1	12	17	25	3	2	25	-	1 pieces
M6	25	-	Stainless steel	black grey RAL 7021	1	12	17	25	3	2	30	-	1 pieces
M8	32	1.4305	Stainless steel	orange RAL 2004	2	15.5	19	33	3.5	2.6	20	-	1 pieces
M8	32	1.4305	Stainless steel	orange RAL 2004	2	15.5	19	33	3.5	2.6	25	-	1 pieces
M8	32	1.4305	Stainless steel	orange RAL 2004	2	15.5	19	33	3.5	2.6	30	-	1 pieces
M8	32	1.4305	Stainless steel	orange RAL 2004	2	15.5	19	33	3.5	2.6	40	-	1 pieces
M8	32	1.4305	Stainless steel	signal green RAL6032	2	15.5	19	33	3.5	2.6	20	-	1 pieces
M8	32	1.4305	Stainless steel	signal green RAL6032	2	15.5	19	33	3.5	2.6	25	-	1 pieces
M8	32	1.4305	Stainless steel	signal green RAL6032	2	15.5	19	33	3.5	2.6	30	-	1 pieces
M8	32	1.4305	Stainless steel	signal green RAL6032	2	15.5	19	33	3.5	2.6	40	-	1 pieces
M8	32	1.4305	Stainless steel	blue RAL5017	2	15.5	19	33	3.5	2.6	20	-	1 pieces
M8	32	1.4305	Stainless steel	blue RAL5017	2	15.5	19	33	3.5	2.6	25	-	1 pieces
M8	32	1.4305	Stainless steel	blue RAL5017	2	15.5	19	33	3.5	2.6	30	-	1 pieces
M8	32	1.4305	Stainless steel	blue RAL5017	2	15.5	19	33	3.5	2.6	40	-	1 pieces
M8	32	-	Stainless steel	light grey RAL 7035	2	15.5	19	33	3.5	2.6	20	-	1 pieces
M8	32	-	Stainless steel	light grey RAL 7035	2	15.5	19	33	3.5	2.6	25	-	1 pieces
M8	32	-	Stainless steel	light grey RAL 7035	2	15.5	19	33	3.5	2.6	30	-	1 pieces
M8	32	-	Stainless steel	light grey RAL 7035	2	15.5	19	33	3.5	2.6	40	-	1 pieces
M8	32	-	Stainless steel	traffic red RAL 3020	2	15.5	19	33	3.5	2.6	20	-	1 pieces
M8	32	-	Stainless steel	traffic red RAL 3020	2	15.5	19	33	3.5	2.6	25	-	1 pieces
M8	32	-	Stainless steel	traffic red RAL 3020	2	15.5	19	33	3.5	2.6	30	-	1 pieces
M8	32	-	Stainless steel	traffic red RAL 3020	2	15.5	19	33	3.5	2.6	40	-	1 pieces
M8	32	-	Stainless steel	colza yellow RAL 1021	2	15.5	19	33	3.5	2.6	20	-	1 pieces
M8	32	-	Stainless steel	colza yellow RAL 1021	2	15.5	19	33	3.5	2.6	25	-	1 pieces
M8	32	-	Stainless steel	colza yellow RAL 1021	2	15.5	19	33	3.5	2.6	30	-	1 pieces
M8	32	-	Stainless steel	colza yellow RAL 1021	2	15.5	19	33	3.5	2.6	40	-	1 pieces
M8	32	-	Stainless steel	black grey RAL 7021	2	15.5	19	33	3.5	2.6	20	-	1 pieces
M8	32	-	Stainless steel	black grey RAL 7021	2	15.5	19	33	3.5	2.6	25	-	1 pieces
M8	32	-	Stainless steel	black grey RAL 7021	2	15.5	19	33	3.5	2.6	30	-	1 pieces
M8	32	-	Stainless steel	black grey RAL 7021	2	15.5	19	33	3.5	2.6	40	-	1 pieces
M10	40	1.4305	Stainless steel	orange RAL 2004	3	19	23	41	4	3	20	-	1 pieces
M10	40	1.4305	Stainless steel	orange RAL 2004	3	19	23	41	4	3	30	-	1 pieces
M10	40	1.4305	Stainless steel	orange RAL 2004	3	19	23	41	4	3	40	-	1 pieces
M10	40	1.4305	Stainless steel	signal green RAL6032	3	19	23	41	4	3	20	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.53 € ( 6.58 € )	4 working days
5.88 € ( 7.00 € )	4 working days
5.88 € ( 7.00 € )	4 working days
6.41 € ( 7.63 € )	4 working days
5.88 € ( 7.00 € )	4 working days

Basic information

Basic information

· Can be used as a clamping, retaining and fastening element

· Application fields: machine, plant and fixture construction, toolmaking

· For manually adjusting assemblies, machines and aggregates

· The NOVO grip product range represents an attractive design and an easy-to-grip form

· Various colours available
