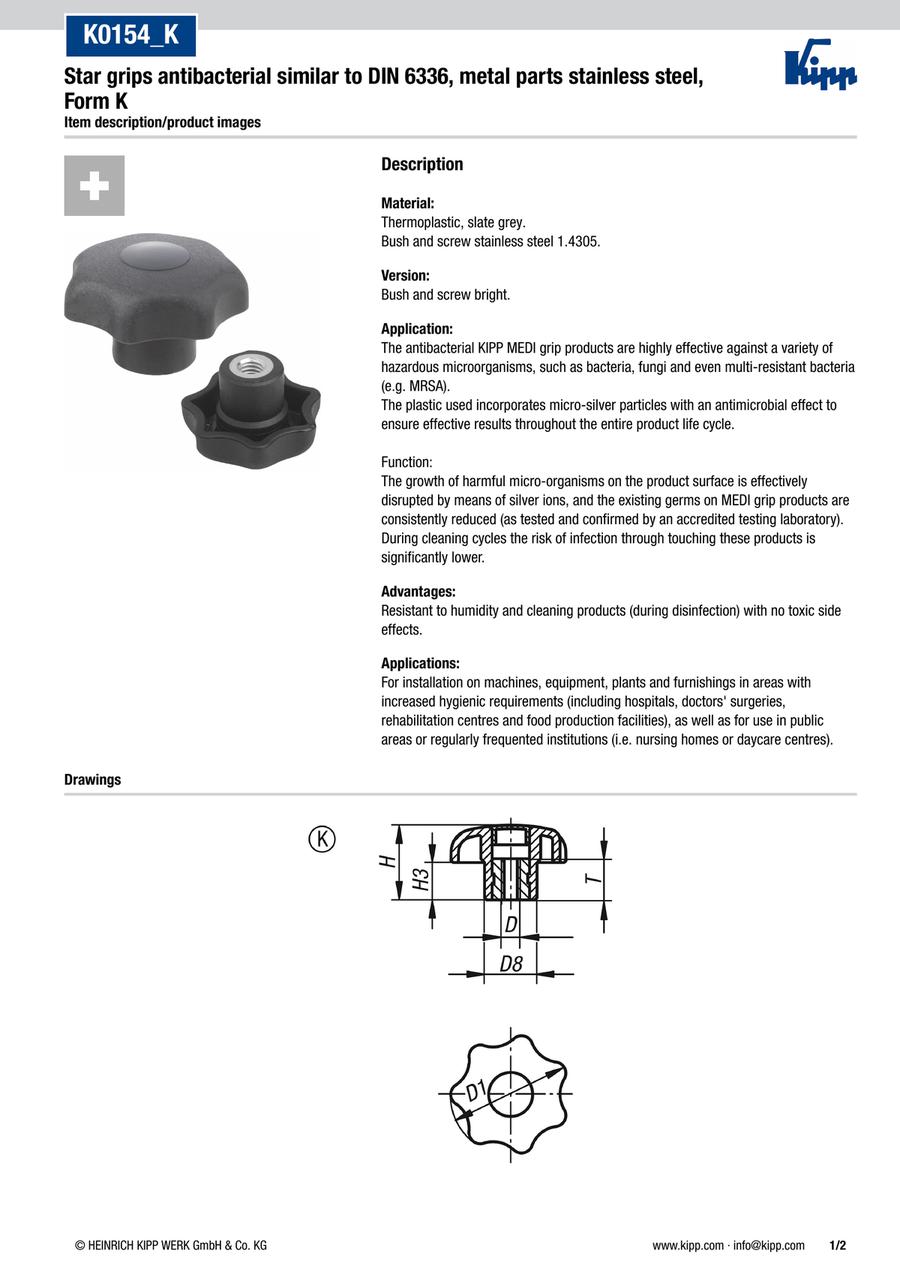

Star grips antibacterial similar to DIN 6336 metal parts stainless steel Form K (K0154)
· Application fields: medical technology, rehabilitation sector, foodstuff production, public facilities, kitchens and sanitation sector
· MEDI grip: special plastic with an antibacterial effect over a long period due to completely impregnated material
· Advantages: resistant to humidity and cleaning products, no toxic side effects, effective against multi-resistant germs, reduces risk of infection
· The risk of spreading microorganisms is prevented and the existing germs are completely eliminated in a few hours
· MEDI grip: special plastic with an antibacterial effect over a long period due to completely impregnated material
· Advantages: resistant to humidity and cleaning products, no toxic side effects, effective against multi-resistant germs, reduces risk of infection
· The risk of spreading microorganisms is prevented and the existing germs are completely eliminated in a few hours
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
K0154.12208144
Basic information
| Thread | M8 | Main Body Material | Other | Outside diameter(φ) | 40 |
|---|---|---|---|---|---|
| Main material(mm) | Thermoplastic | Component material(mm) | Stainless steel | Main colour(mm) | slate grey RAL 7015 |
| Form(mm) | K | D8(mm) | 18 | H=Height(mm) | 25 |
| H3 | 13 | T=thread depth(mm) | 14 |
This page is Star grips antibacterial similar to DIN 6336 metal parts stainless steel Form K (K0154), part number K0154.12208144.
You can find the detail information about specifications and dimensions on part number K0154.12208144.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
