    KIPP

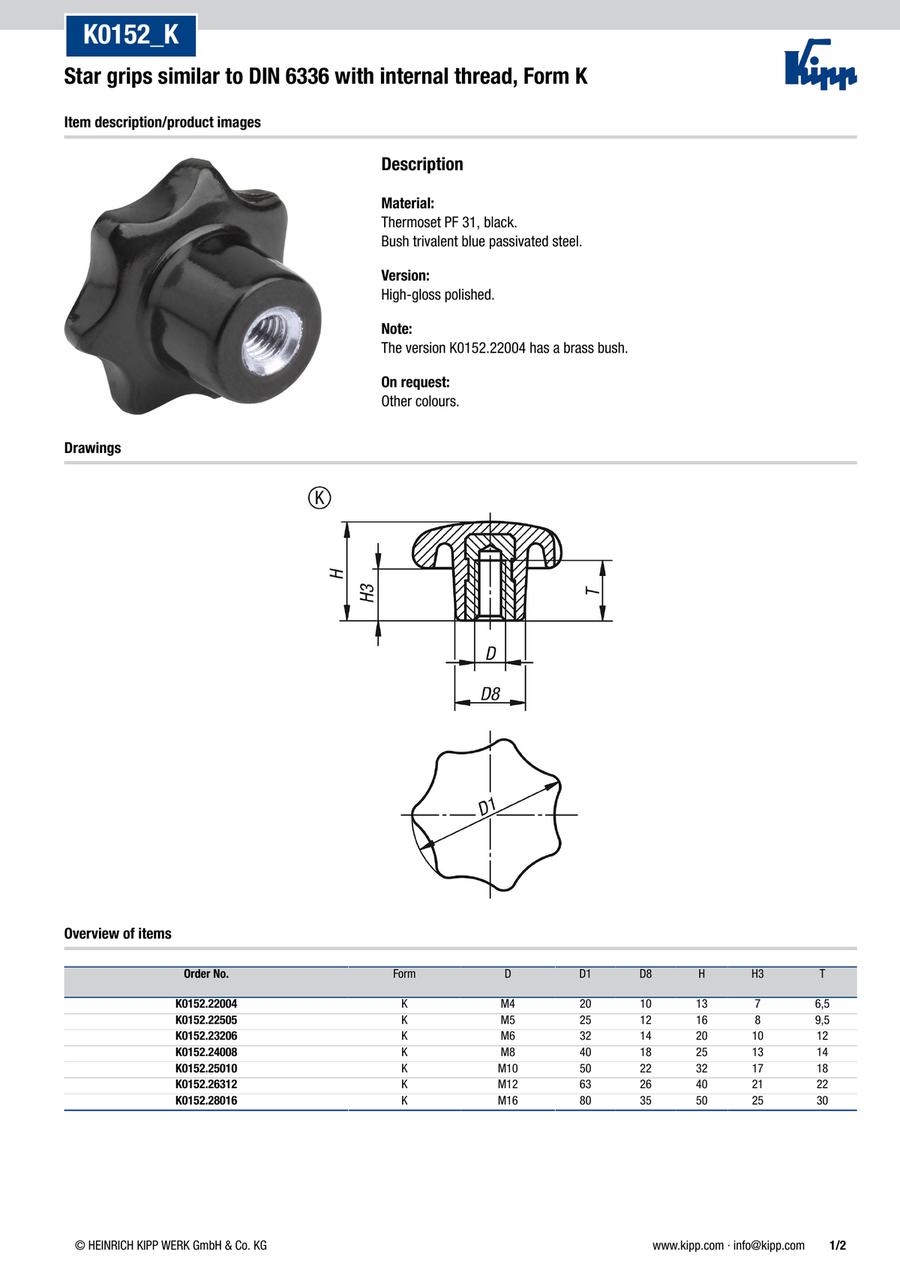

    Star grips similar to DIN 6336, with internal thread, Form K (K0152)

    Star grips similar to DIN 6336, with internal thread, Form K (K0152)

    Part number:

    Still undefined. 7 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0152.22004
    K0152.22505
    K0152.23206
    K0152.24008
    K0152.25010
    K0152.26312
    K0152.28016

    Thread

    Outside diameter

    (φ)

    D8

    (mm)

    H=Height

    (mm)

    H3

    T=thread depth

    (mm)

    		Minimum order quantity
    M4
    20
    10
    13
    7
    6.5
    1 pieces
    M5
    25
    12
    16
    8
    9.5
    1 pieces
    M6
    32
    14
    20
    10
    12
    1 pieces
    M8
    40
    18
    25
    13
    14
    1 pieces
    M10
    50
    22
    32
    17
    18
    1 pieces
    M12
    63
    26
    40
    21
    22
    1 pieces
    M16
    80
    35
    50
    25
    30
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.77 €
    ( 0.92 € )
    4 working days
    0.62 €
    ( 0.74 € )
    4 working days
    0.72 €
    ( 0.86 € )
    4 working days
    1.01 €
    ( 1.20 € )
    4 working days
    1.45 €
    ( 1.73 € )
    4 working days
    2.27 €
    ( 2.70 € )
    4 working days
    4.69 €
    ( 5.58 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form K: tapped bush

    · Different thread sizes
