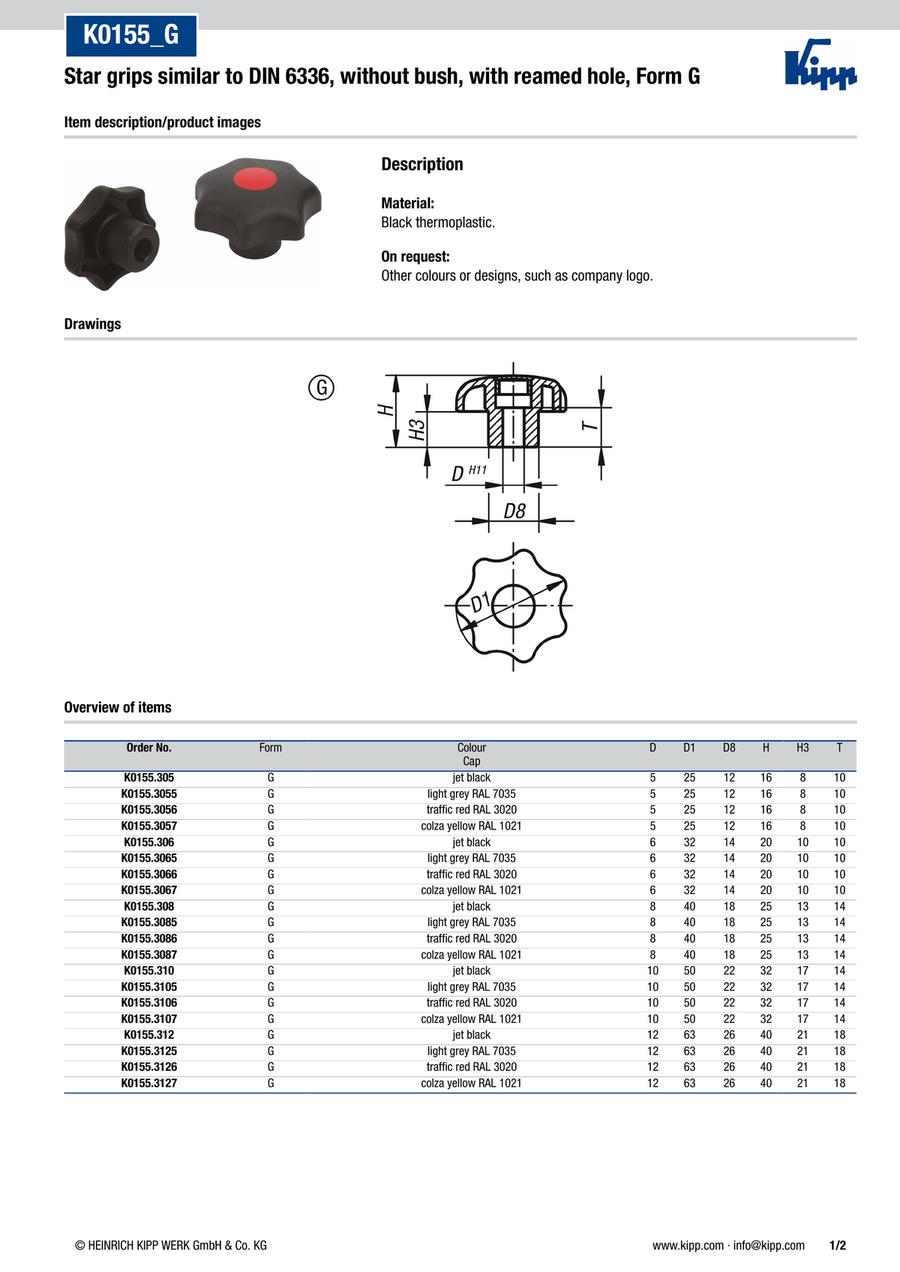

Star grips similar to DIN 6336, without bush with reamed hole, Form G (K0155)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Form G: without bush
· Cap in various colour combinations
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (φ) | Colour Cap (mm) | D=bore (mm) | D8 (mm) | H=Height (mm) | H3 | T=bore depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
0.30 € | 1 | 4 Days | 25 | jet black | 5 | 12 | 16 | 8 | 10 | ||
0.30 € | 1 | 4 Days | 25 | light grey RAL 7035 | 5 | 12 | 16 | 8 | 10 | ||
0.30 € | 1 | 4 Days | 25 | traffic red RAL 3020 | 5 | 12 | 16 | 8 | 10 | ||
0.30 € | 1 | 4 Days | 25 | colza yellow RAL 1021 | 5 | 12 | 16 | 8 | 10 | ||
0.35 € | 1 | 4 Days | 32 | jet black | 6 | 14 | 20 | 10 | 10 | ||
0.35 € | 1 | 4 Days | 32 | light grey RAL 7035 | 6 | 14 | 20 | 10 | 10 | ||
0.35 € | 1 | 4 Days | 32 | traffic red RAL 3020 | 6 | 14 | 20 | 10 | 10 | ||
0.35 € | 1 | 4 Days | 32 | colza yellow RAL 1021 | 6 | 14 | 20 | 10 | 10 | ||
0.47 € | 1 | 4 Days | 40 | jet black | 8 | 18 | 25 | 13 | 14 | ||
0.47 € | 1 | 4 Days | 40 | light grey RAL 7035 | 8 | 18 | 25 | 13 | 14 | ||
0.47 € | 1 | 4 Days | 40 | traffic red RAL 3020 | 8 | 18 | 25 | 13 | 14 | ||
0.47 € | 1 | 4 Days | 40 | colza yellow RAL 1021 | 8 | 18 | 25 | 13 | 14 | ||
0.66 € | 1 | 4 Days | 50 | jet black | 10 | 22 | 32 | 17 | 14 | ||
0.66 € | 1 | 4 Days | 50 | light grey RAL 7035 | 10 | 22 | 32 | 17 | 14 | ||
0.66 € | 1 | 4 Days | 50 | traffic red RAL 3020 | 10 | 22 | 32 | 17 | 14 | ||
0.66 € | 1 | 4 Days | 50 | colza yellow RAL 1021 | 10 | 22 | 32 | 17 | 14 | ||
0.98 € | 1 | 4 Days | 63 | jet black | 12 | 26 | 40 | 21 | 18 | ||
0.98 € | 1 | 4 Days | 63 | light grey RAL 7035 | 12 | 26 | 40 | 21 | 18 | ||
0.98 € | 1 | 4 Days | 63 | traffic red RAL 3020 | 12 | 26 | 40 | 21 | 18 | ||
0.98 € | 1 | 4 Days | 63 | colza yellow RAL 1021 | 12 | 26 | 40 | 21 | 18 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Thermoplastic | Main colour(mm) | black |
|---|---|---|---|---|---|
| Form(mm) | G |
Configure
Basic Attributes
-
Outside diameter(φ)
-
Colour Cap(mm)
-
D=bore(mm)
-
D8(mm)
-
H=Height(mm)
-
H3
-
T=bore depth(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
