Configure
- Air consumption per cycle(dm³)
- 0.09
- 0.28
- 0.60
- Strokes per min. at 6 bar(mm)
- 45
- 50
- 60
- A(mm)
- 290
- 380
- 475
- A1(mm)
- 8
- 12
- 25
- A2(mm)
- 35
- 36.5
- 45
- A3(mm)
- 41
- 45
- B(mm)
- 59
- 76
- 96
- B1(mm)
- 33.4
- 41
- 54
- C1(mm)
- 14.5
- 21
- 26
- D(mm)
- 5.5
- 8.5
- 10.3
- D1(mm)
- 14
- 20
- 25
- H(mm)
- 50
- 53
- 75
- L(mm)
- 331
- 435
- 577
- L1(mm)
- 41
- 55
- 102
- L2(mm)
- 30
- 40
- 60
- Travel S(mm)
- 25
- 32
- 50
- Clamping force F1(N)
- 2350
- 11500
- 14500
- Retaining force F2(N)
- 6000
- 12000
- 25000
- Thrust rod extended / Clamping force
- 5mm/320N, 10mm/430N, 15mm/650N, 20mm/870N, 22mm/1000N, 24mm/1500N,25mm/2350N
- 5mm/1200N, 10mm/1400N, 15mm/1650N, 20mm/1950N, 25mm/2300N, 27mm/2550N,29mm/3000N, 31mm/4300N, 32mm/11500N
- 5mm/1400N, 10mm/1600N, 15mm/1750N, 20mm/2000N, 25mm/2100N, 30mm/2450N,35mm/2650N, 40mm/3250N, 45mm/4200N, 47mm/4900N, 49mm/7000N, 50mm/14500N
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

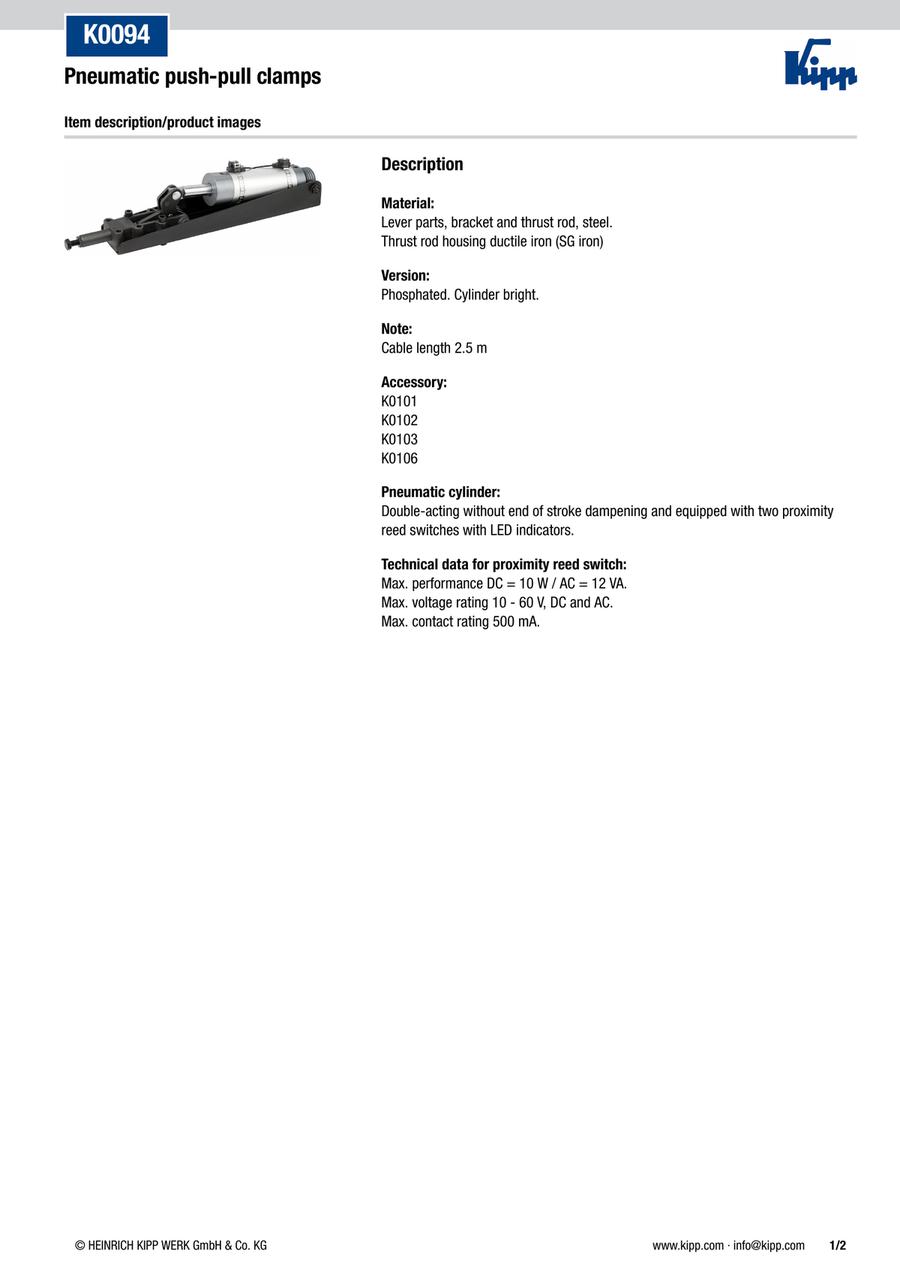

Pneumatic push-pull clamps (K0094)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
409.34 € ( 487.11 € ) | 4 working days |
498.13 € ( 592.77 € ) | 4 working days |
724.32 € ( 861.94 € ) | 4 working days |
More Information
Basic information
· Pneumatic clamps are used as assembly and workholding fixtures
· Application sectors: machine construction, metal processing, woodworking, plastics industry
· Double-acting without end position damping
· Proximity reed switch included
· Automatable
