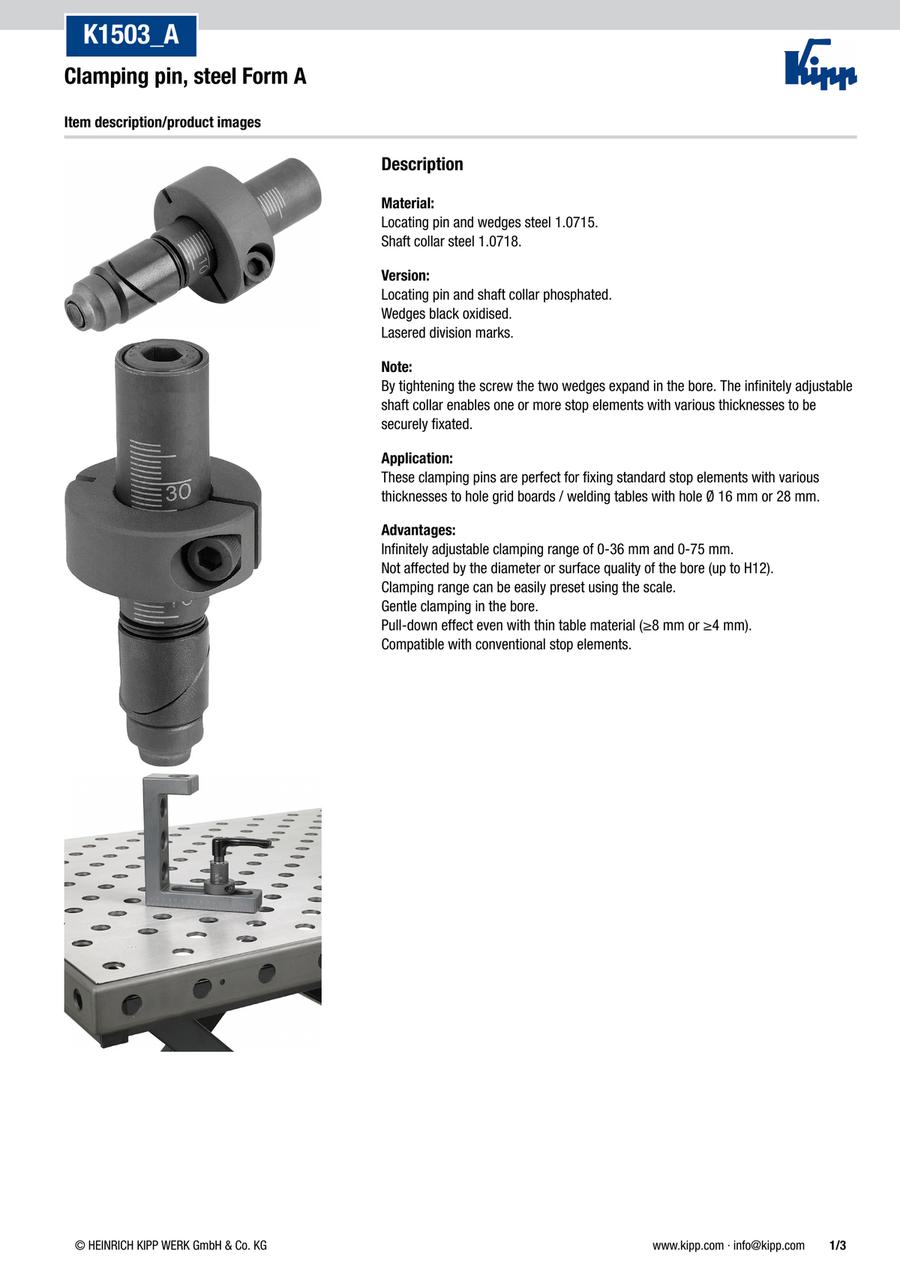

Clamping pin steel, Form A (K1503)
・Material: Locating pin and wedges steel 1.0715. Shaft collar steel 1.0718.
[Features]
・Infinitely adjustable clamping range of 0-36 mm and 0-75 mm.
・Not affected by the diameter or surface quality of the bore (up to H12).
・Clamping range can be easily preset using the scale.
・Gentle clamping in the bore.
・Pull-down effect even with thin table material (28 mm or 24 mm).
・Compatible with conventional stop elements.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1503.0016 |
| K1503.0028 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B=clamping range (mm) | D=diameter (mm) | D1=Outside diameter (mm) | H=Height (mm) | H1 (mm) | H2 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
70.24 € | 1 | 4 Days | 0-36 | 16 | 34 | 78 | 17.5 | 49 | ||
84.30 € | 1 | 4 Days | 0-75 | 28 | 48 | 129 | 28 | 90 |
Loading...
Basic information
| Main material | Steel | Surface finish body | black oxidised | Form | A |
|---|---|---|---|---|---|
| SW(mm) | 6 |
Configure
Basic Attributes
-
B=clamping range(mm)
- 0-75
- 0-36
-
D=diameter(mm)
- 16
- 28
-
D1=Outside diameter(mm)
- 34
- 48
-
H=Height(mm)
-
H1(mm)
-
H2(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
