    KIPP

    Locating pin with internal thread, Form B, cylindrical (K1094)

    Locating pin with internal thread, Form B, cylindrical (K1094)

    Part number:

    Still undefined. 14 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1094.205
    K1094.206
    K1094.208
    K1094.210
    K1094.212
    K1094.216
    K1094.220
    K1094.305
    K1094.306
    K1094.308
    K1094.310
    K1094.312
    K1094.316
    K1094.320

    Material (mount surface / support surface)

    Version 1

    D1=Pin diameter

    (mm)

    D2=Pin diameter

    (mm)

    G

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    H2

    (mm)

    R

    (mm)

    T

    (mm)

    		Minimum order quantity
    -
    short
    5
    3
    -
    8
    3
    5
    1.50
    -
    1 pieces
    -
    short
    6
    4
    -
    10
    4
    6
    1.80
    -
    1 pieces
    Steel
    short
    8
    6
    M2.5
    11.4
    6
    7.4
    2.5
    5
    1 pieces
    Steel
    short
    10
    7
    M2.5
    13.7
    7
    9.7
    3
    5
    1 pieces
    Steel
    short
    12
    8
    M3
    16
    8
    12
    3.5
    6
    1 pieces
    Steel
    short
    16
    12
    M4
    20
    12
    15
    5
    8
    1 pieces
    Steel
    short
    20
    14
    M5
    25.5
    14
    19.5
    6
    10
    1 pieces
    -
    long
    5
    3
    -
    10
    3
    5
    1.50
    -
    1 pieces
    -
    long
    6
    4
    -
    12
    4
    6
    1.80
    -
    1 pieces
    Steel
    long
    8
    6
    M2.5
    17.4
    6
    7.4
    2.5
    5
    1 pieces
    Steel
    long
    10
    7
    M2.5
    21.7
    7
    9.7
    3
    5
    1 pieces
    Steel
    long
    12
    8
    M3
    24
    8
    12
    3.5
    6
    1 pieces
    Steel
    long
    16
    12
    M4
    29
    12
    15
    5
    8
    1 pieces
    Steel
    long
    20
    14
    M5
    35.5
    14
    19.5
    6
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.59 €
    ( 11.41 € )
    4 working days
    9.59 €
    ( 11.41 € )
    4 working days
    9.87 €
    ( 11.75 € )
    4 working days
    10.33 €
    ( 12.29 € )
    4 working days
    10.78 €
    ( 12.83 € )
    4 working days
    12.54 €
    ( 14.92 € )
    4 working days
    19.50 €
    ( 23.20 € )
    4 working days
    10.05 €
    ( 11.96 € )
    4 working days
    10.05 €
    ( 11.96 € )
    4 working days
    10.33 €
    ( 12.29 € )
    4 working days
    10.78 €
    ( 12.83 € )
    4 working days
    11.20 €
    ( 13.33 € )
    4 working days
    13.00 €
    ( 15.47 € )
    4 working days
    20.16 €
    ( 23.99 € )
    4 working days
  • 1

    • More Information

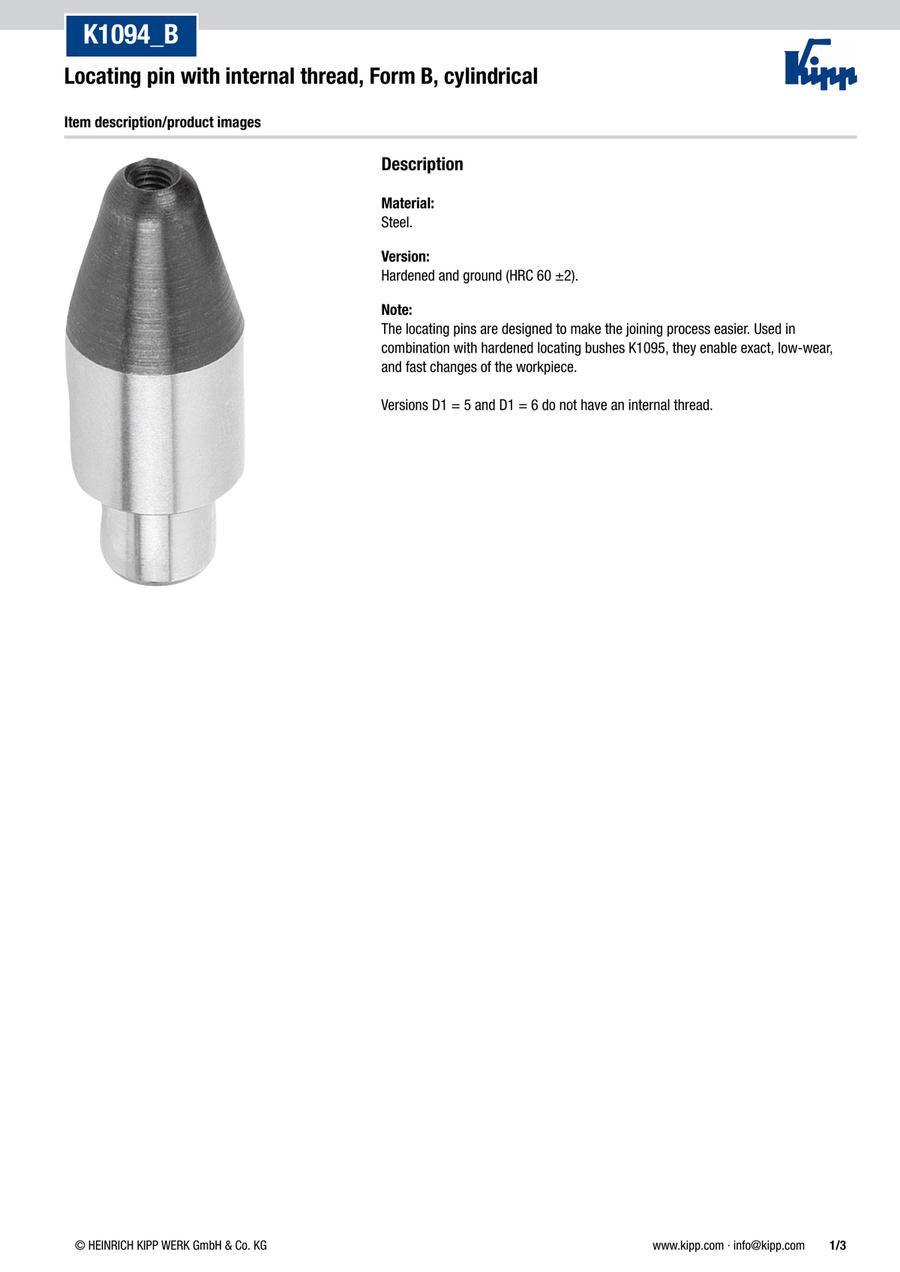

    Basic information

    · Ease the fastening process

    · Workpieces fit more precisely, have lower wear and are quicker to exchange

    · Hardened and ground (60 HRC)
