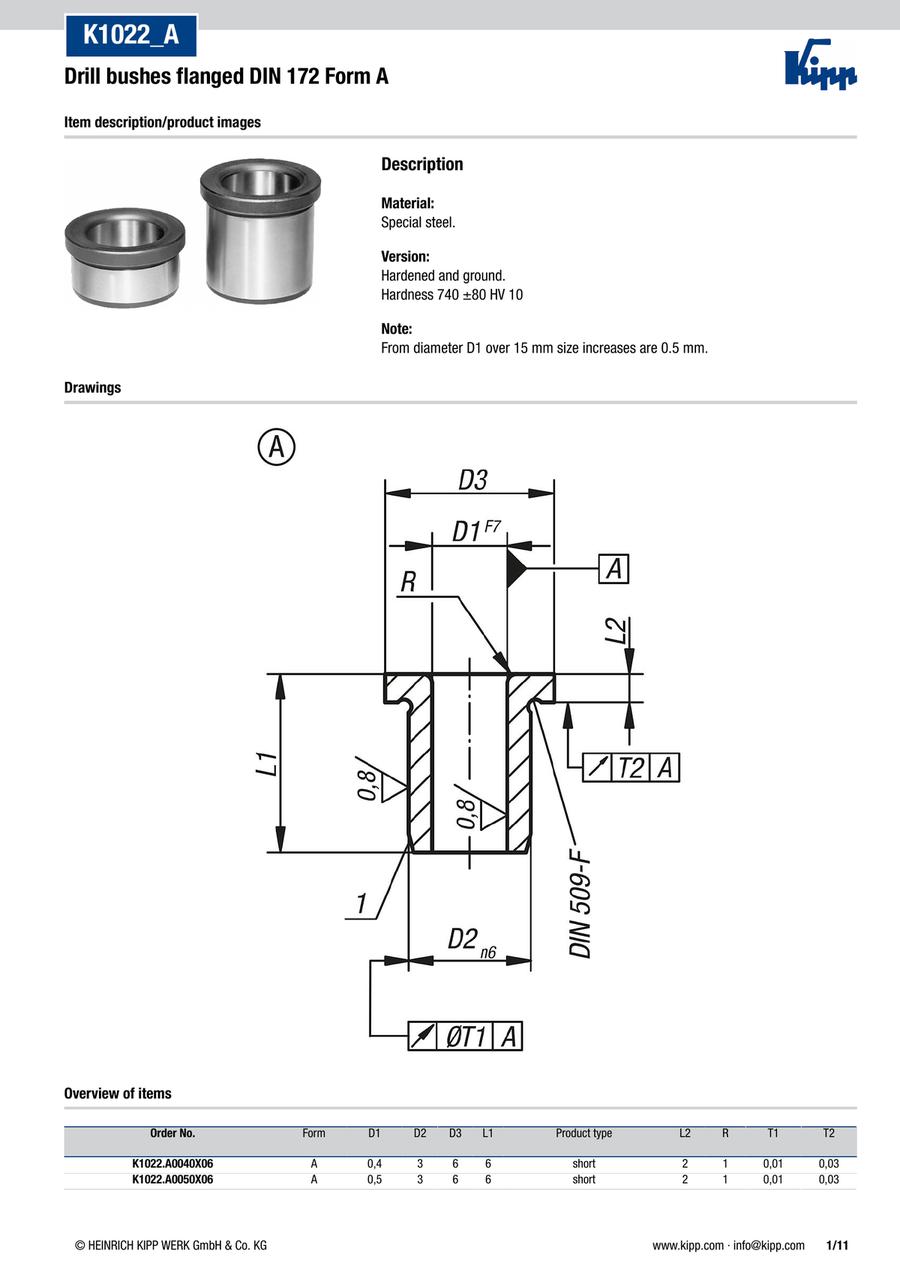

Drill bushes flanged DIN 172 Form A (K1022)
· Simplify a standard drilling operation
· Drilling points do not have to be repeatedly measured
· Drills run straight and remain stable
· Consistently good results due to a fixed penetration angle
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Inner Diameter (mm) | Outer Diameter (mm) | Product type | D2 (mm) | L1= length (mm) | L2 (mm) | R (mm) | T1 (mm) | T2 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15.28 € | 1 | 4 Days | 0.4 | 6 | short | 3 | 6 | 2 | 1 | 0.01 | 0.03 | ||
12.75 € | 1 | 4 Days | 0.5 | 6 | short | 3 | 6 | 2 | 1 | 0.01 | 0.03 | ||
13.19 € | 1 | 4 Days | 0.6 | 6 | short | 3 | 6 | 2 | 1 | 0.01 | 0.03 | ||
9.95 € | 1 | 4 Days | 0.7 | 6 | short | 3 | 6 | 2 | 1 | 0.01 | 0.03 | ||
9.95 € | 1 | 4 Days | 0.8 | 6 | short | 3 | 6 | 2 | 1 | 0.01 | 0.03 | ||
7.57 € | 1 | 4 Days | 0.9 | 6 | short | 3 | 6 | 2 | 1 | 0.01 | 0.03 | ||
8.66 € | 1 | 4 Days | 0.9 | 6 | medium | 3 | 9 | 2 | 1 | 0.01 | 0.03 | ||
7.57 € | 1 | 4 Days | 1 | 6 | short | 3 | 6 | 2 | 1 | 0.01 | 0.03 | ||
8.66 € | 1 | 4 Days | 1 | 6 | medium | 3 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.1 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.1 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.2 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.2 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.3 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.3 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.4 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.4 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.5 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.5 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.6 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.6 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.7 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.7 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
5.04 € | 1 | 4 Days | 1.8 | 7 | short | 4 | 6 | 2 | 1 | 0.01 | 0.03 | ||
5.82 € | 1 | 4 Days | 1.8 | 7 | medium | 4 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 1.9 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 1.9 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 2 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 2 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 2.1 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 2.1 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 2.2 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 2.2 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 2.3 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 2.3 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 2.4 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 2.4 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 2.5 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 2.5 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.71 € | 1 | 4 Days | 2.6 | 8 | short | 5 | 6 | 2 | 1 | 0.01 | 0.03 | ||
3.89 € | 1 | 4 Days | 2.6 | 8 | medium | 5 | 9 | 2 | 1 | 0.01 | 0.03 | ||
3.73 € | 1 | 4 Days | 2.7 | 9 | short | 6 | 8 | 2.5 | 1 | 0.01 | 0.03 | ||
4.07 € | 1 | 4 Days | 2.7 | 9 | medium | 6 | 12 | 2.5 | 1 | 0.01 | 0.03 | ||
7.25 € | 1 | 4 Days | 2.7 | 9 | long | 6 | 16 | 2.5 | 1 | 0.01 | 0.03 | ||
3.73 € | 1 | 4 Days | 2.8 | 9 | short | 6 | 8 | 2.5 | 1 | 0.01 | 0.03 | ||
4.07 € | 1 | 4 Days | 2.8 | 9 | medium | 6 | 12 | 2.5 | 1 | 0.01 | 0.03 | ||
7.25 € | 1 | 4 Days | 2.8 | 9 | long | 6 | 16 | 2.5 | 1 | 0.01 | 0.03 | ||
3.73 € | 1 | 4 Days | 2.9 | 9 | short | 6 | 8 | 2.5 | 1 | 0.01 | 0.03 | ||
4.07 € | 1 | 4 Days | 2.9 | 9 | medium | 6 | 12 | 2.5 | 1 | 0.01 | 0.03 | ||
7.25 € | 1 | 4 Days | 2.9 | 9 | long | 6 | 16 | 2.5 | 1 | 0.01 | 0.03 | ||
3.73 € | 1 | 4 Days | 3 | 9 | short | 6 | 8 | 2.5 | 1 | 0.01 | 0.03 | ||
4.07 € | 1 | 4 Days | 3 | 9 | medium | 6 | 12 | 2.5 | 1 | 0.01 | 0.03 | ||
7.25 € | 1 | 4 Days | 3 | 9 | long | 6 | 16 | 2.5 | 1 | 0.01 | 0.03 | ||
3.73 € | 1 | 4 Days | 3.1 | 9 | short | 6 | 8 | 2.5 | 1 | 0.01 | 0.03 | ||
4.07 € | 1 | 4 Days | 3.1 | 9 | medium | 6 | 12 | 2.5 | 1 | 0.01 | 0.03 | ||
7.25 € | 1 | 4 Days | 3.1 | 9 | long | 6 | 16 | 2.5 | 1 | 0.01 | 0.03 | ||
3.73 € | 1 | 4 Days | 3.2 | 9 | short | 6 | 8 | 2.5 | 1 | 0.01 | 0.03 | ||
4.07 € | 1 | 4 Days | 3.2 | 9 | medium | 6 | 12 | 2.5 | 1 | 0.01 | 0.03 | ||
7.25 € | 1 | 4 Days | 3.2 | 9 | long | 6 | 16 | 2.5 | 1 | 0.01 | 0.03 | ||
3.73 € | 1 | 4 Days | 3.3 | 9 | short | 6 | 8 | 2.5 | 1 | 0.01 | 0.03 |
Loading...
Basic information
| Main material | Mild steel | Form | A |
|---|
