    KIPP

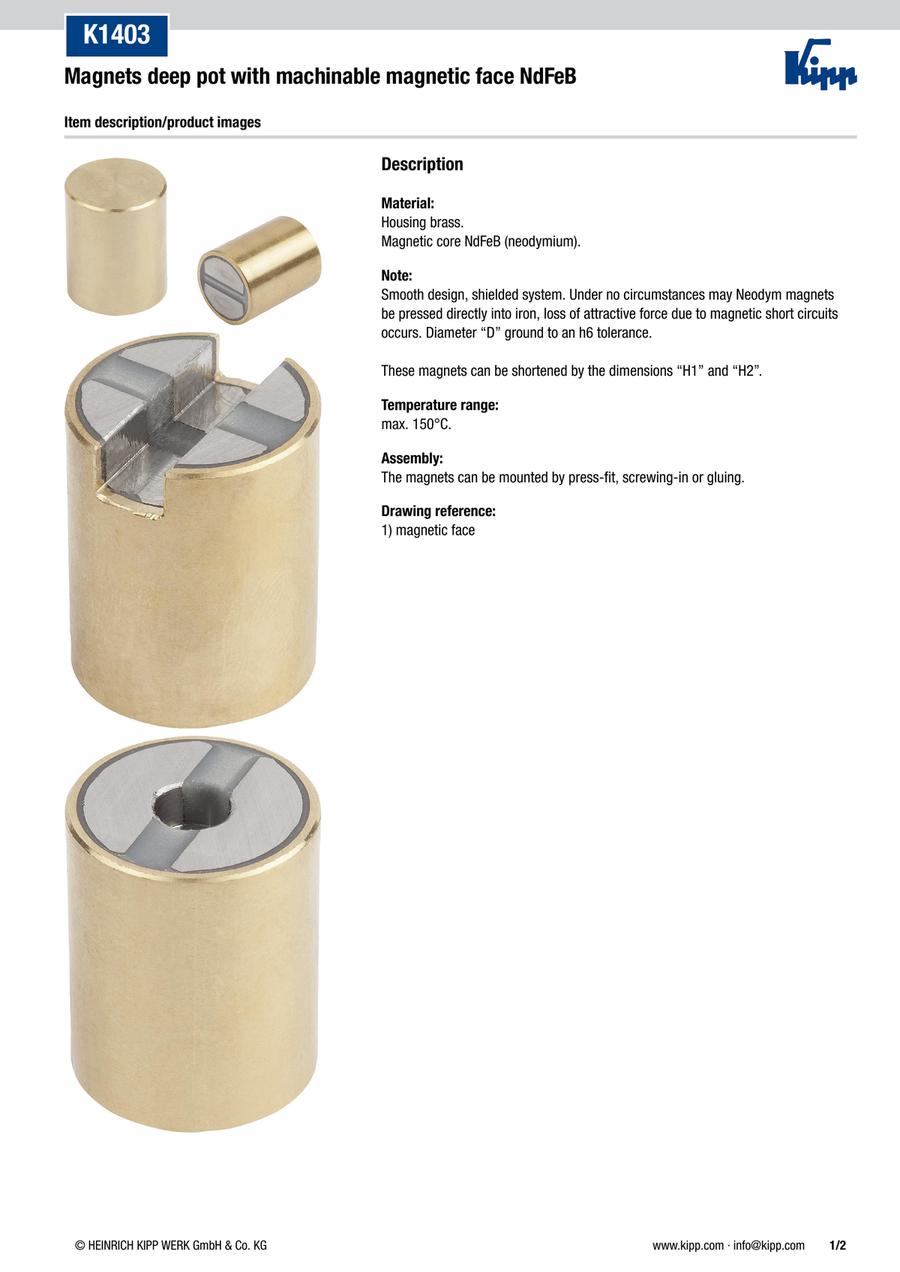

    Magnets deep pot with machinable magnetic face NdFeB (K1403)

    Magnets deep pot with machinable magnetic face NdFeB (K1403)

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1403.06
    K1403.08
    K1403.10
    K1403.13
    K1403.16
    K1403.20
    K1403.25
    K1403.32

    Outer Diameter

    (Ø)

    Gap to iron wall

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    H2

    (mm)

    Magnetic force at H2 max.

    (N)

    		Minimum order quantity
    6
    1.5
    20
    10
    3
    12
    1 pieces
    8
    1.5
    20
    10
    3
    29
    1 pieces
    10
    2
    20
    8
    5
    38
    1 pieces
    13
    2.5
    20
    6
    5
    66
    1 pieces
    16
    3
    20
    2
    6
    108
    1 pieces
    20
    4
    25
    5
    7
    235
    1 pieces
    25
    5
    35
    7
    8
    380
    1 pieces
    32
    6
    40
    4.5
    10
    640
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.96 €
    ( 4.71 € )
    4 working days
    4.60 €
    ( 5.47 € )
    4 working days
    5.59 €
    ( 6.65 € )
    4 working days
    6.56 €
    ( 7.81 € )
    4 working days
    8.38 €
    ( 9.97 € )
    4 working days
    11.48 €
    ( 13.66 € )
    4 working days
    22.32 €
    ( 26.56 € )
    4 working days
    36.83 €
    ( 43.83 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Flexible, easy to remove, non-positive fasteners

    · Application sectors: machine and plant construction

    · Temperature range up to 150 °C

    · Assembly: press in, screw in or glue

    · Shielded system
