    KIPP

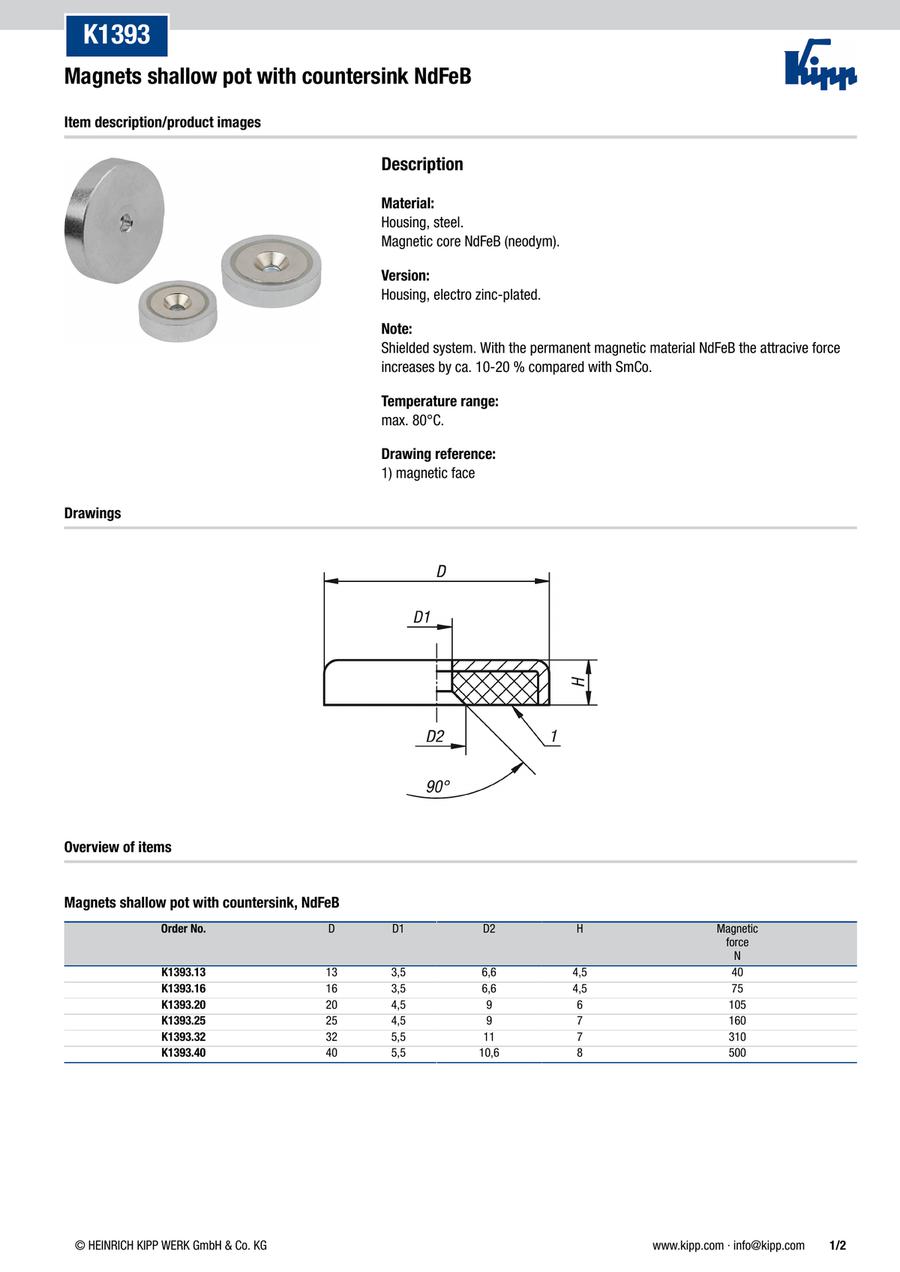

    Magnets shallow pot with countersink NdFeB (K1393)

    Magnets shallow pot with countersink NdFeB (K1393)

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1393.13
    K1393.16
    K1393.20
    K1393.25
    K1393.32
    K1393.40

    Outer Diameter

    (Ø)

    D1=Fastening hole

    (mm)

    D2

    (mm)

    H=Height

    (mm)

    		Minimum order quantity
    13
    3.5
    6.6
    4.5
    1 pieces
    16
    3.5
    6.6
    4.5
    1 pieces
    20
    4.5
    9
    6
    1 pieces
    25
    4.5
    9
    7
    1 pieces
    32
    5.5
    11
    7
    1 pieces
    40
    5.5
    10.6
    8
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.42 €
    ( 4.07 € )
    4 working days
    3.92 €
    ( 4.66 € )
    4 working days
    5.30 €
    ( 6.31 € )
    4 working days
    6.99 €
    ( 8.32 € )
    4 working days
    10.89 €
    ( 12.96 € )
    4 working days
    15.73 €
    ( 18.72 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Specifications]
    ・Magnet Type (Material): Neodymium Magne
    ・Surface finish body: galvanised
    ・Form: D

    [Features]
    ・Flexible, easy to remove, non-positive fasteners
    ・Application sectors: machine and plant construction
    ・Temperature range up to 80 °C
    ・High magnetic force
    ・Shielded system
