Configure
- Hand force FH(N)
- 80
- 140
- Retaining force F1(N)
- 750
- 1500
- Clamping force F3(N)
- 320
- 650
- A(mm)
- 13.5
- 26
- A1(mm)
- 25
- 38
- A2(mm)
- 5.7
- 6
- B(mm)
- 16.8
- 28
- B1(mm)
- 27
- 40
- B2(mm)
- 16
- 20
- B4(mm)
- 22
- C(mm)
- 19
- 25
- C1(mm)
- 9.5
- 14
- D(mm)
- 5.2
- 5.5
- H(mm)
- 38
- 53
- L(mm)
- 108
- 155
- L1(mm)
- 24.5
- 38
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

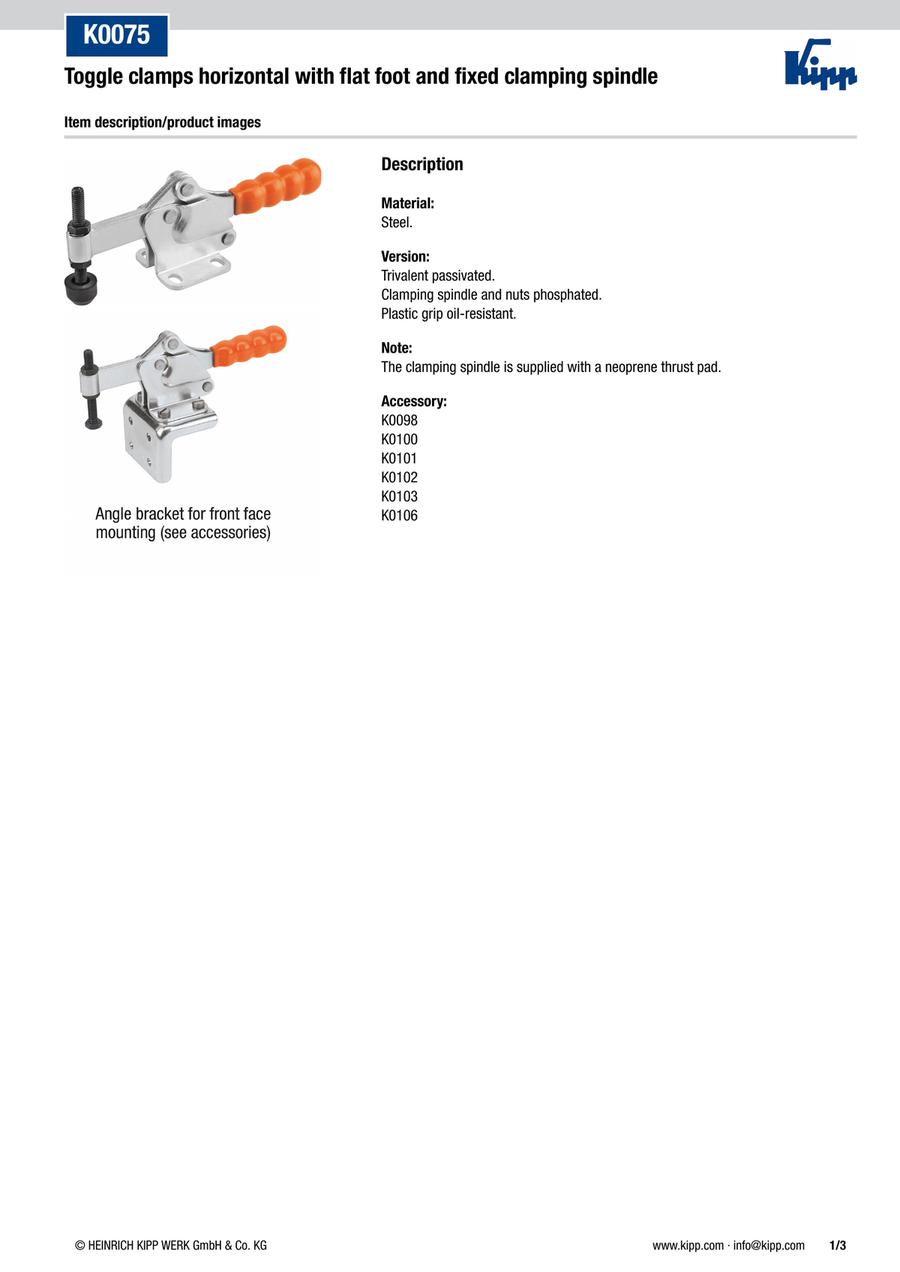

Toggle clamps horizontal with flat foot and fixed clamping spindle (K0075)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
15.17 € ( 18.05 € ) | 4 working days |
17.88 € ( 21.28 € ) | 4 working days |
More Information
Basic information
· Toggle clamps and power clamps are used in assembly and workholding fixtures
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Self-locking prevents the clamping arm opening autonomously.
